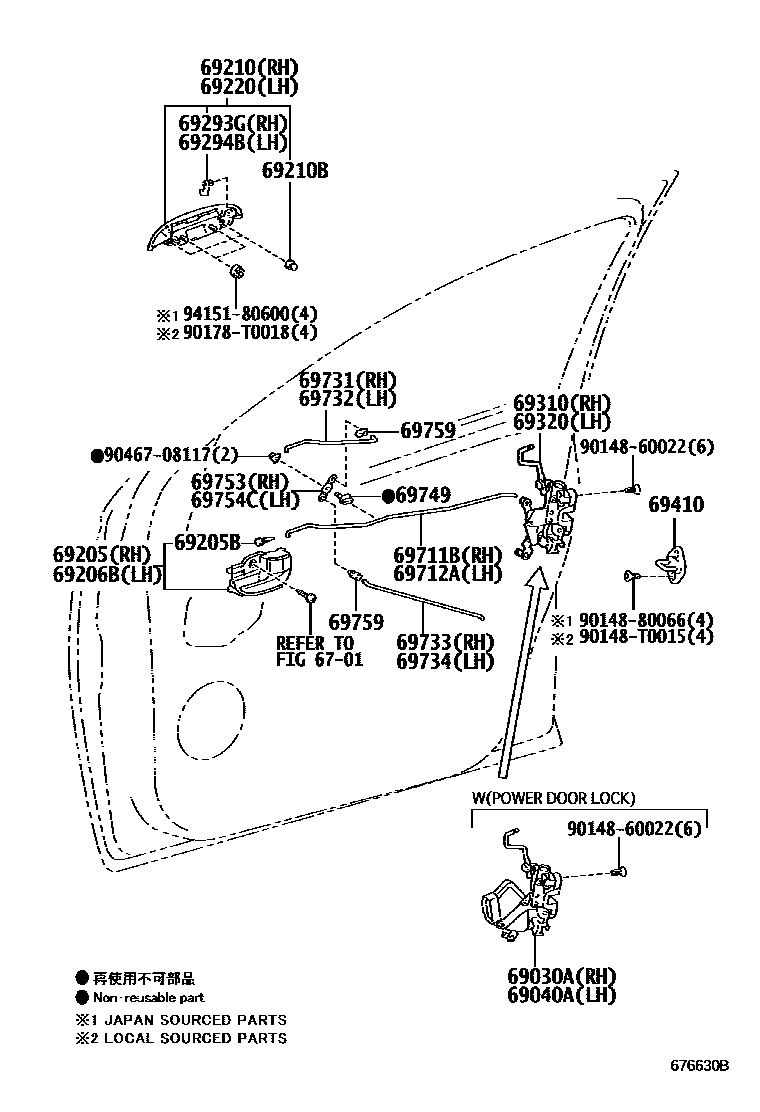

FRONT DOOR LOCK & HANDLE
6701
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
WITH(POWER STEERING & POWER WINDOW)
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
WITH(POWER STEERING & POWER WINDOW)
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
MD.GRAY,TRIM1#
BLACK,TRIM2#
LUXURY PACKAGE(W(ABS & *ERCDM)),GREGE,TRIM4#
SAFETY PACKAGE(WITH ABS),GREGE,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
MD.GRAY,TRIM1#
BLACK,TRIM2#
LUXURY PACKAGE(W(ABS & *ERCDM)),GREGE,TRIM4#
SAFETY PACKAGE(WITH ABS),GREGE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69733LINK, FRONT DOOR INSIDE LOCKING, RH
69734LINK, FRONT DOOR INSIDE LOCKING, LH
69749CLAMP, FRONT DOOR LOCK LINK
69753BELLCRANK, DOOR LOCK CONTROL, RH
69754CBELLCRANK, DOOR LOCK CONTROL, LH
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
CREAM
BROWN
9014860022
main90148-60022
9014880066
main90148-80066
90148T0015
main90148-T0015
90178T0018
main90178-T0018
9046708117
main90467-08117
9415180600
main94151-80600
30 parts on this diagram · 1 diagram in section
