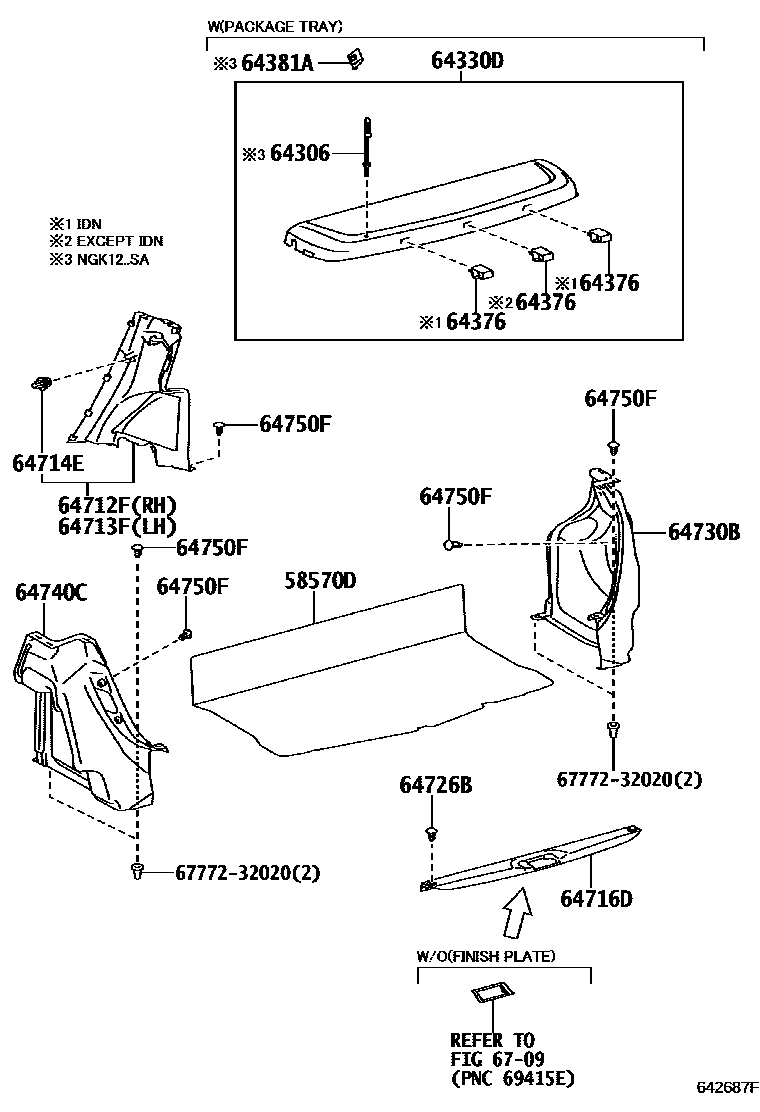

DECK BOARD & DECK TRIM COVER

58570DCARPET ASSY, REAR FLOOR

main58570-0D060-C0iNGK12..SUVG201404-201609

BLACK,TRIM1#,2#

sub58570-0D200

main58570-0D060-C0iNGK10,NUK10..G..IND201012-201609

BLACK,TRIM1#

sub58570-0D200

main58570-0D060-C0iNGK10,NUK10..G..IND201303-201609

BLACK,TRIM0#,4#

sub58570-0D200

main58570-0D060-C0iNGK12..G..IND;NGK10,NUK10..STD..IND201112-201609

BLACK,TRIM1#,4#

sub58570-0D200

main58570-0D150-C0iNGK10..IDN201303-201712

BLACK,TRIM1#

main58570-0D200-C0iNGK10,NUK10..V..IND201504

BLACK,TRIM1#

main58570-0D200-C0iNGK10,NUK10..V..IND201609

BLACK,TRIM0#

main58570-0D200-C0iNGK10,NUK10..V..IND201504

BLACK,TRIM2#

main58570-0D200-C0iNGK10,12,NUK10..(SUVG,SUVV)..IND201609

BLACK,TRIM4#

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-0D140iNGK12..SA201504

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-0D190-A0iNGK10,NUK10..V..IND201609

IVORY,TRIM0#

main64330-0D190-C0iNGK12..G..IND201012-201504

BLACK,TRIM1#

main64330-0D190-C0iNUK10;NGK10..V201112-201303

BLACK,TRIM1#,4#

main64330-0D190-C0iNUK10..G201303-201409

BLACK,TRIM1#,40

main64330-0D190-C0iNGK12..SUVG201404-201504

BLACK,TRIM1#,2#

main64330-0D190-C0iNGK10..V..IND201303

BLACK,TRIM40

main64330-0D190-C0iNGK10..SUVG201404

BLACK,TRIM2#

main64330-0D190-C0iNGK12..G..IND201409

LUXURY PACKAGE(W(ABS & *ERCDM)),BLACK,TRIM1#,40

main64330-0D190-E0iNGK10..G..IND201409

LUXURY PACKAGE(W(ABS & *ERCDM)),GREGE,TRIM40

main64330-0D190-E0iNUK10..G201409

LUXURY PACKAGE(W(ABS & *ERCDM)),GREGE,TRIM4#

main64330-0D190-E0iNUK10..V201401

GREGE,TRIM4#

main64330-0D190-E0iNUK10..G201303-201409

GREGE,TRIM40

main64330-0D280-C0iNGK10..(G,V)..IDN201303-201712

BLACK,TRIM1#

main64330-0D540-C0iNGK12..(G,STD)..SA201504

BLACK,TRIM1#

main64330-0D540-C0iNGK12..(G,STD)..SA201504

BLACK,TRIM2#

64376SPACER, PACKAGE TRAY TRIM, NO.2

main64376-0D040-C1iNUK10..G201401

BLACK

main64376-0D040-C1iNUK10..G201409

LUXURY PACKAGE(W(ABS & *ERCDM)),BLACK

main64376-0D040-C1iNUK10..G201409

LUXURY PACKAGE(W(ABS & *ERCDM)),BLACK,TRIM1#,4#

main64376-0D040-C1iNUK10;NGK10..V201012-201409

BLACK,TRIM1#,4#

main64376-0D040-C1iNGK15..5D201203-201504

BLACK,TRIM1#

main64376-0D040-C1iNGK10..V..IND201303

BLACK,TRIM4#

main64376-0D070-C0iNGK10..(G,V)..IDN201303-201712

BLACK,TRIM1#

64381AHANGER, PACKAGE TRAY TRIM

main64381-52010iNGK12..SA201504

64712FCOVER, DECK SIDE TRIM, FRONT RH

main64712-0D010-C0iNGK12..G,STD;NGK10,NUK10..STD..IND201012-201303

BLACK,TRIM1#

main64712-0D010-C0iNGK10,NUK10..G,V201112-201303

BLACK,TRIM1#,4#

main64712-0D010-C0iNGK10,NUK10..G..IND201303

BLACK,TRIM0#,4#

main64712-0D010-C0iNGK10,12,NUK10..SUVG,SUVV201404

BLACK,TRIM1#,2#

main64712-0D040-C0iNGK10..IDN201303-201712

BLACK,TRIM1#

64713FCOVER, DECK SIDE TRIM, FRONT LH

main64713-0D010-C0iNGK10,NUK10..G,V201012-201303

BLACK,TRIM1#

main64713-0D010-C0iNGK10,NUK10..G,V201112-201303

BLACK,TRIM1#,4#

main64713-0D010-C0iNGK10,NUK10..G..IND201303

BLACK,TRIM0#,4#

main64713-0D010-C0iNGK10,12,NUK10..SUVG,SUVV201404

BLACK,TRIM1#,2#

main64713-0D040-C0iNGK10..IDN201303-201712

BLACK,TRIM1#

64714ECLIP(FOR DECK TRIM SIDE COVER)

main90467-10167iNUK10..G;NGK10,15..5D..(G,STD,V)201012

64716DCOVER, DECK TRIM, REAR

main64716-0D070-C0iNGK12..G..SA201012-201303

BLACK,TRIM1#

main64716-0D070-C0iNGK10..V201112-201303

BLACK,TRIM1#,4#

main64716-0D070-C0iNGK12..G..SA201303

BLACK,TRIM0#,4#

main64716-0D070-C0iNUK10..SUVV;NGK12..SUVG,SUVV201404

BLACK,TRIM1#,2#

main64716-0D110-C0iNGK10..V..IDN201303-201712

BLACK,TRIM1#

64726BCLIP, DECK REAR TRIM

main90467-06020-C4iNGK12..G..SA;NGK12..SUVG,SUVV;NGK10,NUK10..SUVV,V201812

BLACK

sub90467-06020

main90467-08186-C0iNGK10..V;NGK15..5D..G201112-201610

BLACK

sub90467-08186

main90467-08186-C0iNGK10..V201012-201112

BLACK,TRIM1#

sub90467-08186

main90467-08186-C3iNGK12..G..SA;NGK12..SUVG,SUVV;NGK10,NUK10..(SUVV,V)..IND201610-201811

BLACK

sub90467-08186

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0D200-C0iNGK10,NUK10..G..IND201012-201612

BLACK,TRIM1#

sub64730-0D201

main64730-0D200-C0iNGK10,NUK10..G..IND201303-201612

BLACK,TRIM0#,4#

sub64730-0D201

main64730-0D200-C0iNUK10..STD;NGK12..G,STD201112-201612

BLACK,TRIM1#,4#

sub64730-0D201

main64730-0D200-C0iNGK10,12,NUK10..SUVG,SUVV201404-201612

BLACK,TRIM1#,2#

sub64730-0D201

main64730-0D201-C0iNUK10..STD;NGK12..G,STD201612

BLACK,TRIM2#

main64730-0D201-C0iNGK10,12,NUK10..SUVG,SUVV201612

BLACK,TRIM0#

main64730-0D201-C0iNGK10,NUK10..V..IND201612

BLACK,TRIM4#

main64730-0D201-C0iNGK10,NUK10..V..IND201612

BLACK,TRIM1#

main64730-0D280-C0iNGK10..STD..IND201012-201612

BLACK,TRIM1#

sub64730-0D281

main64730-0D281-C0iNGK10..STD..IND201612

BLACK,TRIM1#

main64730-0D330-C0iNGK10..(G,V)..IDN201303-201712

BLACK,TRIM1#

main64730-0D340-C0iNGK10..STD..IDN201303-201712

BLACK,TRIM1#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0D220-C0iNGK10,NUK10..V..IND201112-201612

BLACK,TRIM1#,4#

sub64740-0D221

main64740-0D220-C0iNGK10,NUK10..G,V201012-201612

BLACK,TRIM1#

sub64740-0D221

main64740-0D220-C0iNGK10,NUK10..G..IND201303-201612

BLACK,TRIM0#,4#

sub64740-0D221

main64740-0D220-C0iNGK10,12,NUK10..SUVG,SUVV201404-201612

BLACK,TRIM1#,2#

sub64740-0D221

main64740-0D221-C0iNGK10,12,NUK10..SUVG,SUVV201612

BLACK,TRIM4#

main64740-0D221-C0iNGK10,12,NUK10..SUVG,SUVV201612

BLACK,TRIM1#

main64740-0D221-C0iNGK10,12,NUK10..SUVG,SUVV201612

BLACK,TRIM2#

main64740-0D221-C0iNGK10,12,NUK10..SUVG,SUVV201612

BLACK,TRIM0#

main64740-0D300-C0iNGK10..STD..IND201012-201612

BLACK,TRIM1#

sub64740-0D301

main64740-0D301-C0iNGK10..STD..IND201612

BLACK,TRIM1#

main64740-0D340-C0iNGK10..(G,V)..IDN201303-201712

BLACK,TRIM1#

main64740-0D350-C0iNGK10..STD..IDN201303-201712

BLACK,TRIM1#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-06020-C4iNGK12..STD;NGK10,12,NUK10..(G,STD,SUVG)..IND201812

BLACK

sub90467-06020

main90467-08186-C0iNGK12..STD;NGK10,12,NUK10..(G,STD,SUVG)..IND201012-201610

BLACK

sub90467-08186

main90467-08186-C0iNGK10..V201012-201112

BLACK,TRIM1#

sub90467-08186

main90467-08186-C3iNGK12..STD;NGK10,12,NUK10..(G,STD,SUVG)..IND201610-201811

BLACK

sub90467-08186

6709

6777232020WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-32020

15 parts on this diagram · 1 diagram in section
