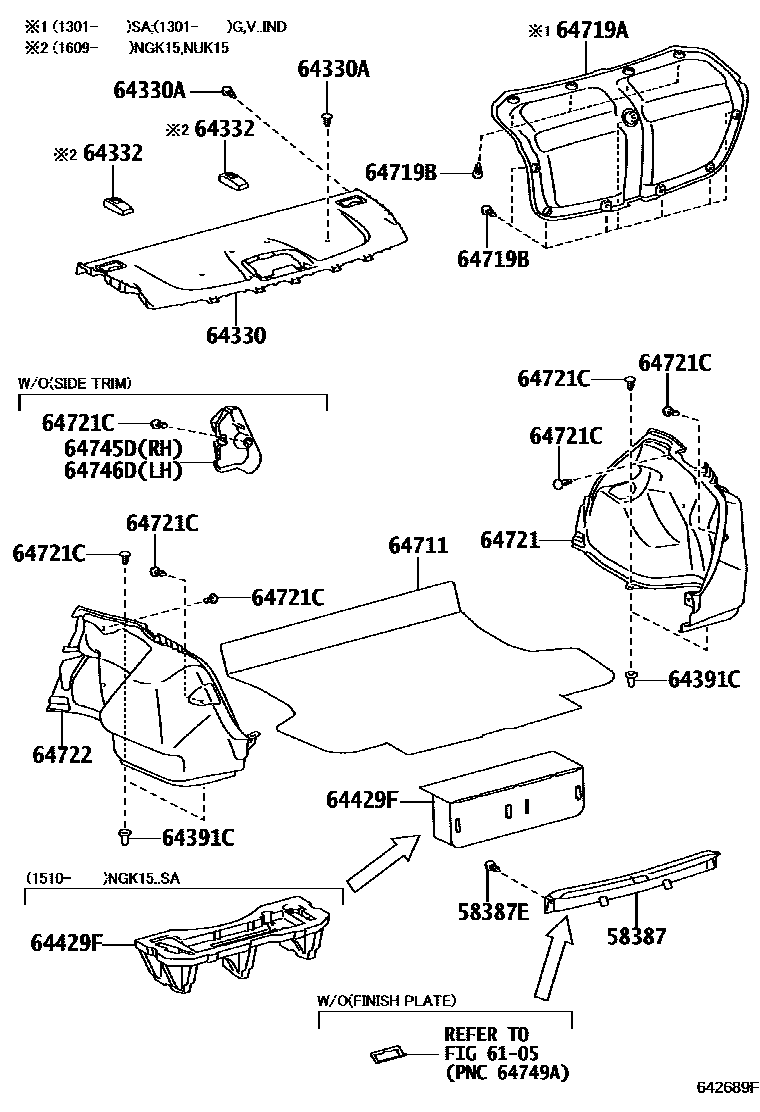

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-0D080-C0iNGK15..4D..SA201012-201303

BLACK,TRIM1#

main58387-0D080-C0iNGK15,NUK15..(G,V)..IND201112-201303

BLACK,TRIM1#,4#

main58387-0D080-C0iNGK15,NUK15..V201303

BLACK,TRIM0#,4#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-06020-C4iNGK15,NUK15201812

BLACK

sub90467-06020

main90467-08186-C0iNGK15,NUK15..V201012-201112

BLACK,TRIM1#

sub90467-08186

main90467-08186-C0iNGK15..4D..SA;NGK15,NUK15..G..IND201012-201610

BLACK

sub90467-08186

main90467-08186-C3iNGK15,NUK15201610-201811

BLACK

sub90467-08186

6105

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-0D200-C0iNGK15..G..SA;NGK15,NUK15..STD201012-201609

BLACK,TRIM1#

main64330-0D200-C0iNGK15,NUK15..(G,V)..IND201112-201303

BLACK,TRIM1#,4#

main64330-0D200-C0iNGK15,NUK15..V201303-201609

BLACK,TRIM40

main64330-0D200-C0iNGK15,NUK15..V201303-201609

BLACK,TRIM1#,40

main64330-0D200-E0iNGK15,NUK15..(G,V)..IND201303-201609

GREGE,TRIM40

main64330-0D740-A0iNGK15,NUK15..V201609

IVORY,TRIM0#

main64330-0D740-C0iNGK15..G..SA;NGK15,NUK15..STD201609

BLACK,TRIM1#

main64330-0D740-E0iNGK15,NUK15..(G,V)..IND201609

GREGE,TRIM4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-07090-A0iNGK15,NUK15..V201609

IVORY,TRIM0#

sub90467-07090

sub90467-07207

main90467-07090-C4iNGK15,NUK15..G,STD201303

BLACK,TRIM1#

sub90467-07090

sub90467-07207

main90467-07090-C4iNGK15,NUK15..V201012-201303

BLACK

sub90467-07090

sub90467-07207

main90467-07090-E3iNGK15,NUK15..(G,V)..IND201303

GREGE,TRIM4#

sub90467-07090

sub90467-07207

64332COVER, PACKAGE TRAY TRIM

main64332-0D050-A0iNGK15,NUK15..V201609

IVORY,TRIM0#

main64332-0D050-C0iNGK15..G..SA;NGK15,NUK15..STD201609

BLACK,TRIM1#

main64332-0D050-E0iNGK15,NUK15..(G,V)..IND201609

GREGE,TRIM4#

64391CCAP

main67772-32020iNGK15..4D..SA;NGK15,NUK15..(G,V)..IND201012-201303

64429FBOX, LUGGAGE COMPARTMENT TRIM

main64429-0D010iNGK15,NUK15..4D201012-201510

main64429-0D050iNGK15..SA201510

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-0D110-C0iNGK15,NUK15..G,V201012-201202

BLACK,TRIM1#

sub64711-0D111

main64711-0D111-C0iNGK15,NUK15..G..IND201303

BLACK,TRIM0#,4#

main64711-0D111-C0iNGK15,NUK15..(G,V)..IND201203-201303

BLACK,TRIM1#,4#

main64711-0D111-C0iNGK15,NUK15..(G,V)..IND201203-201504

BLACK,TRIM1#

main64711-0D150-C0iNGK15..STD..IND201012-201303

BLACK,TRIM1#

sub64711-0D111

main64711-0D320-C0iNGK15..SA201504

BLACK,TRIM1#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-0D111-C0iNGK15,NUK15..V201303

BLACK,TRIM1#,4#

main64719-0D111-C0iNGK15,NUK15..V201303

BLACK,TRIM1#

main64719-0D111-C0iNGK15,NUK15..G..IND201303

BLACK,TRIM0#,4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0iNGK15..SA;NGK15,NUK15..(G,V)..IND201303-201610

BLACK

sub90467-08186

main90467-08186-C3iNGK15..SA;NGK15,NUK15..(G,V)..IND201610

BLACK

sub90467-08186

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-0D070-C0iNGK15,NUK15..G,V201012-201303

BLACK,TRIM1#

sub64721-0D210

main64721-0D070-C0iNGK15,NUK15..(G,V)..IND201112-201303

BLACK,TRIM1#,4#

sub64721-0D210

main64721-0D210-C0iNGK15,NUK15..G..IND201303

BLACK,TRIM1#,4#

main64721-0D210-C0iNGK15,NUK15..V201303

BLACK,TRIM0#,4#

main64721-0D210-C0iNGK15,NUK15..V201303

BLACK,TRIM1#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-06020-C4iNGK15,NUK15201812

BLACK

sub90467-06020

main90467-07214iNGK15..STD..IND201012-201303

main90467-08186-C0iNGK15..4D..SA;NGK15,NUK15..G..IND201012-201610

BLACK

sub90467-08186

main90467-08186-C0iNGK15,NUK15..V201012-201112

BLACK,TRIM1#

sub90467-08186

main90467-08186-C3iNGK15,NUK15201610-201811

BLACK

sub90467-08186

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-0D070-C0iNGK15,NUK15..G,V201012-201303

BLACK,TRIM1#

sub64722-0D210

main64722-0D070-C0iNGK15,NUK15..(G,V)..IND201112-201303

BLACK,TRIM1#,4#

sub64722-0D210

main64722-0D210-C0iNGK15,NUK15..V201303

BLACK,TRIM1#,4#

main64722-0D210-C0iNGK15,NUK15..V201303

BLACK,TRIM1#

main64722-0D210-C0iNGK15,NUK15..G..IND201303

BLACK,TRIM0#,4#

64745DCOVER, REAR COMBINATION LAMP SERVICE, RH

main81497-0D010iNGK15..STD..IND201012-201303

64746DCOVER, REAR COMBINATION LAMP SERVICE, LH

main81498-0D010iNGK15..STD..IND201012-201303

16 parts on this diagram · 1 diagram in section
