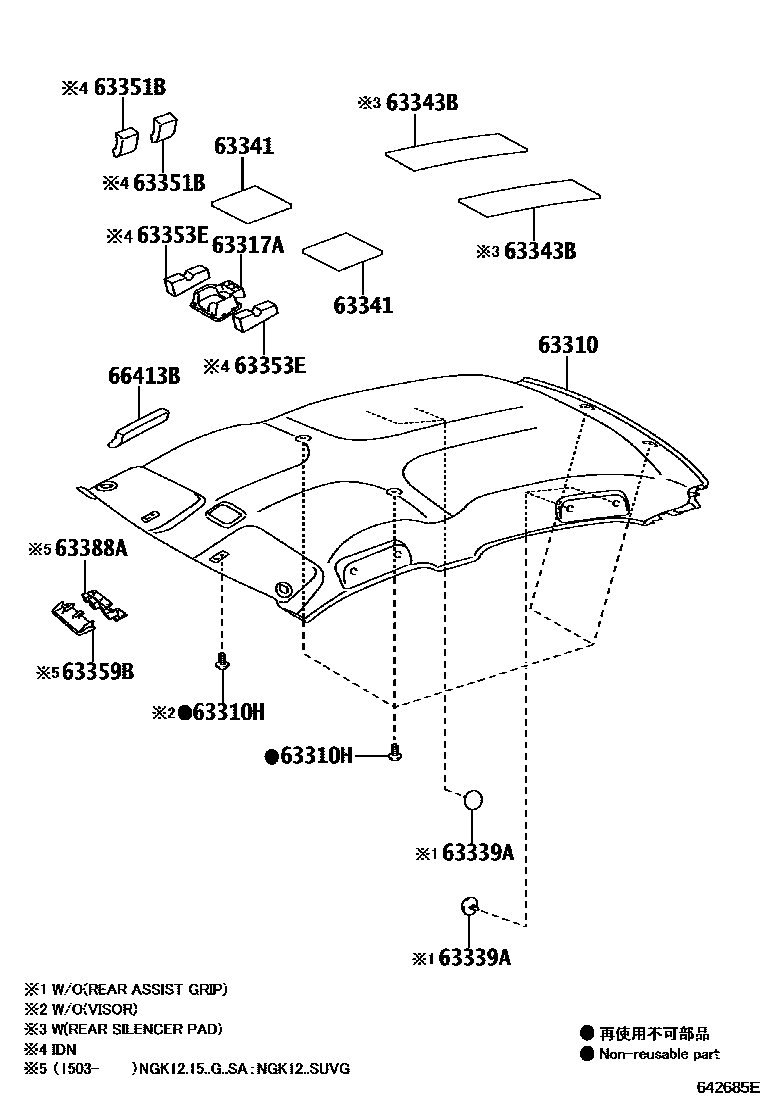

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-0D410-B0iNGK12..G..SA201012-201609

GRAY,TRIM1#

main63310-0D410-E1iNGK10,NUK10..G,V201207-201609

GREGE,TRIM4#

main63310-0D420-B0iNGK15,NUK15..STD201012-201609

GRAY,TRIM1#

main63310-0D420-E1iNGK15,NUK15..(G,V)..IND201207-201609

GREGE,TRIM4#

main63310-0D490-B0iNGK10,NUK10..STD..IND201012-201409

GRAY,TRIM1#

main63310-0D530-B0iNGK10..IDN201303-201712

GRAY,TRIM1#

main63310-0D700-B0iNGK12..SUVG201404-201609

GRAY,TRIM1#,2#

main63310-0DA50-B0iNGK12..G..SA201503-201609

GRAY,TRIM1#

main63310-0DA60-B0iNGK15..G..SA201503-201609

GRAY,TRIM1#

main63310-0DA70-B0iNGK12..SUVG201503-201609

GRAY,TRIM2#

main63310-0DD80-A0iNGK10,NUK10..V..IND201609

IVORY,TRIM0#

main63310-0DD80-B0iNGK12..G..IND;NGK10,NUK10..STD..IND201609

GRAY,TRIM2#

main63310-0DD80-B0iNGK12..G..IND;NGK10,NUK10..STD..IND201609

GRAY,TRIM1#

main63310-0DD80-E0iNGK10,NUK10..(G,V)..IND201609

GREGE,TRIM4#

main63310-0DD90-B0iNGK12..(G,STD)..SA201609

GRAY,TRIM1#

main63310-0DD90-B0iNGK12..(G,STD)..SA201609

GRAY,TRIM2#

main63310-0DE00-A0iNGK15,NUK15..V201609

IVORY,TRIM0#

main63310-0DE00-B0iNGK15,NUK15..STD..IND201609

GRAY,TRIM1#

main63310-0DE00-E0iNGK15,NUK15..(G,V)..IND201609

GREGE,TRIM4#

main63310-0DE10-B0iNGK15..SA201609

GRAY,TRIM1#

63310HCLIP(FOR ROOF HEADLINING)

main90467-05164-B6iNGK10..STD201012-201712

GRAY,TRIM1#

sub90467-05164

main90467-05164-E2iNGK1#,NUK1#..(G,V)..IND201207-201403

GREGE,TRIM4#

sub90467-05164

main90467-T0004-A0iNGK10,15,NUK1#..V..IND201609

IVORY,TRIM0#

main90467-T0004-B1iNGK12..G,STD;NGK15..G..SA;NGK15,NUK15..STD201404

GRAY,TRIM2#

main90467-T0004-B1iNGK10,NUK10..STD..IND201404-201409

GRAY,TRIM1#

main90467-T0004-E0iNGK10,15,NUK1#..(G,V)..IND201404

GREGE,TRIM4#

63317ARETAINER, ROOF HEADLINING

main63317-0D030-A0iNGK10,15,NUK1#..V..IND201609

IVORY,TRIM0#

sub63317-0D030

main63317-0D030-B0iNGK1#,NUK1#201012-201609

GRAY,TRIM1#

sub63317-0D030

main63317-0D030-B0iNGK12..SUVG201404-201609

GRAY,TRIM1#,2#

sub63317-0D030

main63317-0D030-B0iNGK12..SUVG201503

GRAY,TRIM2#

sub63317-0D030

main63317-0D030-E0iNGK10,15,NUK1#..(G,V)..IND201207-201303

GREGE,TRIM4#

sub63317-0D030

main63317-0D050-B0iNGK10..IDN201303-201712

GRAY,TRIM1#

63339ACOVER, ROOF HEADLINING SERVICE HOLE

main63339-0D050-B0iNGK12,15..STD..SA201012-201712

GRAY,TRIM1#

63341PAD, ROOF SILENCER, NO.1

main63341-0D050iNGK10,NUK10..STD..IND201012-201409

main63341-0D160iNGK10..IDN201303-201503

63343BPAD, ROOF SILENCER, REAR

main63343-0D060iNGK1#,NUK1#..G,V201012-201609

main63343-0D100iNGK10..IDN201303

63351BPAD, ROOF HEADLINING

main63351-0D040iNGK10..IDN201303

63353EPAD, ROOF HEADLINING, CENTER

main63353-0D010iNGK10..IDN201303

63359BCOVER, ROOF HEADLINING RETAINER

main63359-0K030-B1iNGK12..SUVG201503

GRAY,TRIM1#

main63359-0K030-B1iNGK12..SUVG201503

GRAY,TRIM2#

63388ACOVER, ROOF HEADLINING HOLDER

main63388-0K020-B1iNGK12,15..STD..SA201503

GRAY,TRIM1#

main63388-0K020-B1iNGK12,15..G..SA201503

GRAY,TRIM2#

66413BSPACER, SIDE RAIL, FRONT RH

main66413-52320iNGK1#,NUK1#..IND,SA201609

11 parts on this diagram · 1 diagram in section
