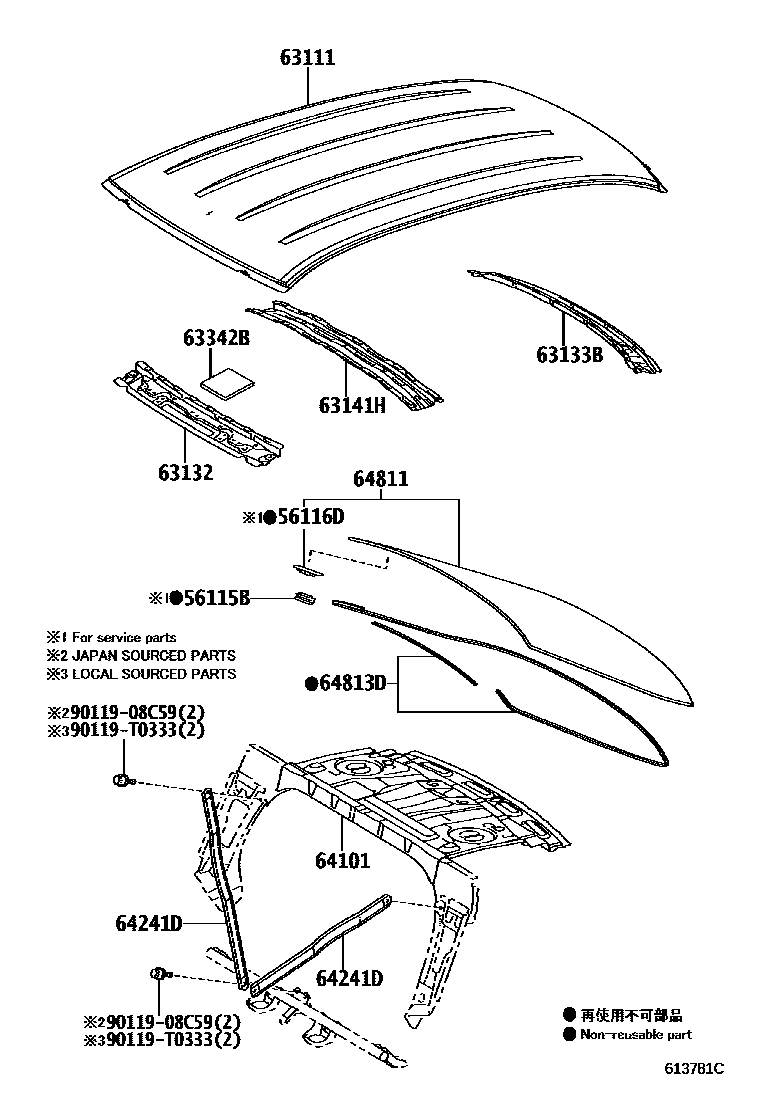

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1ROOF PANEL 0004 1ROOF RAIL

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iNGK15..G..SA;NGK15,NUK15..V201303

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-02020iNGK15..STD;NUK15..G,STD;NGK15..G..IND201303-201308

63111PANEL, ROOF

main63111-0D100iNGK15,NUK15201303

main63111-0D130iNGK10,12,NUK10..(G,STD,V)..(IND,SA)201303

main63111-0D160iNGK10,12,NUK10..SUVG,SUVV201404

63132PANEL, WINDSHIELD HEADER, INNER

main63132-0D070iNGK1#,NUK1#201012-201303

63133BFRAME, BACK WINDOW

main63133-0D080iNGK15,NUK15..4D201012-201303

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-0D060iNGK1#,NUK1#201012-201303

63342BPAD, ROOF SILENCER, NO.2

main63342-0D060iNGK1#,NUK1#201012-201303

main63342-0D100iNGK10..IDN201303

64101PANEL SUB-ASSY, UPPER BACK

main64101-0D090iNGK15,NUK15..4D201012-201303

main64101-0D101iNGK15,NUK15201609

64241DPANEL, ROOM PARTITION

main64241-0D030×2iNGK15,NUK15201303-201609

main64241-0D040iNGK15,NUK15201609

64811GLASS, BACK WINDOW

main64801-0D070iNUK15..G;NGK15..STD..SA201303-201409

main64801-0D080iNGK15,NUK15..V;NGK15..4D..G..SA201012-201303

main64801-0D190supersedes 64801-0D070iNGK15..(G,STD)..IND201308-201409

INDONESIA SPEC

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-64010iNGK15..STD..SA;NGK15,NUK15..G..IND201409

L=3500

9011908C59

main90119-08C59

90119T0333

main90119-T0333

13 parts on this diagram · 4 diagrams in section
