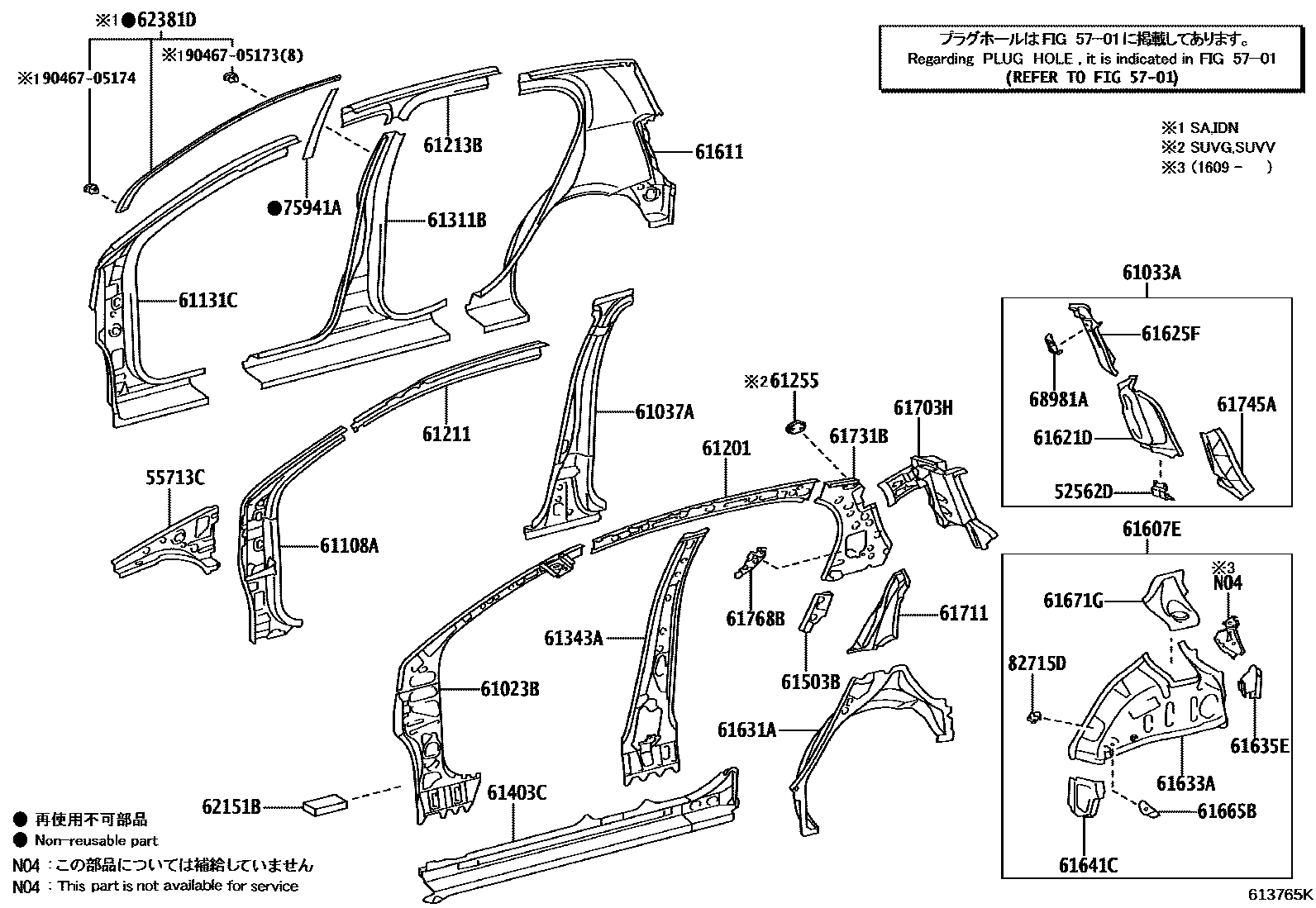

SIDE MEMBER

0001 1RH 0002 1RH 0003 1LH 0004 1LH

52562DRETAINER, REAR BUMPER, UPPER SIDE, RH

main52562-0D020iNGK1#,NUK10..5D201012-201303

main52562-0D050iNGK15,NUK15..4D201012-201303

55713CPANEL, COWL TOP SIDE, RH

main55713-0D080iNGK1#,NUK1#201012-201303

5701

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0D110iNGK1#,NUK1#201012-201303

main61023-0D111iNGK1#,NUK1#..IND,SA201304

61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE

main61033-0D040iNGK1#,NUK10..5D201012-201303

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-0D270iNGK1#,NUK1#..IND,SA201303-201410

main61037-0D340iNGK1#,NUK1#..IND,SA201411

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-0D080iNGK1#,NUK1#..IND,SA201303-201410

main61108-0D140iNGK10..IDN201303

61131CPILLAR, FRONT BODY, OUTER RH

main61141-0D040iNGK1#,NUK1#201012-201203

main61141-0D041iNGK1#,NUK1#..IND201203-201303

main61141-0D090iNGK10..IDN201203

main61141-0D100iNGK12..SUVG201404

main61141-0D160iNGK10,12,NUK10..(SUVG,SUVV)..IND201404

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61233-0D100iNGK10,12,NUK10..IND,SA201303-201310

main61233-0D101iNGK10,12,NUK10..IND,SA201310-201601

main61233-0D102iNGK10,12,NUK10..IND,SA201602

main61233-0D110iNGK15,NUK15201303-201309

main61233-0D111iNGK15,NUK15201310-201601

main61233-0D112iNGK15,NUK15201602

main61233-0D450iNGK10..IDN201602

61211RAIL, ROOF SIDE, OUTER RH

main61211-0D100iNGK10..IDN201012

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-0D050iNGK15,NUK15201012-201203

main61213-0D051iNGK15,NUK15..IND201303

main61213-0D110iNGK10,NUK10201012-201203

main61213-0D111iNGK10,NUK10201203-201303

main61213-0D170iNGK15..SA201303

main61213-0D180iNGK10..IDN201203

main61213-0D220iNGK10,12,NUK10..(SUVG,SUVV)..IND201404

61255PLATE, ROOF SIDE RAIL, OUTER RH

main61255-0D010iNGK10,12,NUK10..SUVG,SUVV201404

61311BPILLAR, CENTER BODY, OUTER RH

main61311-0D020iNGK15,NUK15201303

main61311-0D030iNGK1#,NUK10..5D201012-201303

main61311-0D110iNGK10,12,NUK10..SUVG,SUVV201404

61343APILLAR, CENTER BODY, INNER RH

main61032-0D060iNGK1#,NUK1#201012-201303

main61032-0D120iNGK1#,NUK1#..IND,SA201411

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-0D120iNGK1#,NUK10..5D201012-201303

main61403-0D130iNGK15,NUK15201303-201410

main61403-0D160iNGK15,NUK15201510

main61403-0D220iNGK10..IDN201303

main61403-0D300iNGK10,12,NUK10..IND,SA201411-201509

main61403-0D310iNGK15,NUK15201411-201509

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-0D060iNGK1#,NUK1#..IND,SA201303

61607EPANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-0D140iNGK10201012-201106

main61607-0D190iNGK15,NUK15201609

main61607-0D201iNGK10,12,NUK10..IND,SA201609

main61607-0D220iNGK15201012-201106

main61607-0D230iNGK10..IDN201106

main61607-0D240iNGK15,NUK15..4D201106-201303

61611PANEL, QUARTER, RH

main61601-0D090iNGK15,NUK15..4D201012-201303

main61611-0D100iNGK10,12,NUK10..(G,STD,V)..(IND,SA)201303

main61611-0D280iNGK10,12,NUK10..SUVG,SUVV201404

61621DTROUGH, BACK DOOR OPENING, RH

main61621-0D030iNGK1#,NUK10..5D201012-201303

61625FEXTENSION, QUARTER PANEL, UPPER RH

main61625-0D030iNGK1#,NUK10..5D201012-201303

main61625-0D040iNGK15,NUK15..4D201012-201303

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-0D030iNGK1#,NUK10..5D201012-201303

main61631-0D040iNGK15,NUK15..4D201012-201303

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-0D070iNGK10..IDN201012

61635EEXTENSION, QUARTER WHEEL HOUSE, RH

main61635-0D010iNGK1#,NUK10..5D201012-201303

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-0D050iNGK1#,NUK1#201012-201303

61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH

main61665-0D060iNGK1#,NUK1#201012-201303

61671GSUPPORT, REAR SUSPENSION SPRING, RH

main61065-0D060iNGK1#,NUK1#..IND,SA201303

61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH

main61703-0D050iNGK1#,NUK10..5D201012-201303

main61703-0D150iNGK10,12,NUK10..SUVG,SUVV201509

61711PANEL, ROOF SIDE, OUTER RH

main61711-0D070iNGK1#,NUK10..5D201012-201303

61731BPANEL, ROOF SIDE, INNER RH

main61731-0D050iNGK10,12,NUK10..IND,SA201303-201309

main61731-0D051iNGK10,12,NUK10..IND,SA201310

main61731-0D060iNGK15,NUK15201303

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-0D030iNGK1#,NUK10..5D201012-201303

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-0D021iNGK10,12,NUK10..IND,SA201303

62151BPAD, COWL SIDE SILENCER

main62151-0D070×2iNGK15..SA;NGK1#,NUK1#..(G,V)..IND201012-201303

main62151-0D090×2iNGK10..(G,V)..IDN201303

62381DWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-0D020iNGK10..IDN201303

main62381-0D040iNGK15..SA201302-201303

main62381-0D041iNGK12,15..SA201309

main62381-52031iNGK15..SA201203-201301

sub62381-52032

68981ARETAINER, BACK DOOR STAY, RH

main68981-0D020iNGK10,12,NUK10..IND,SA201303

75941ASTRIPE, CENTER PILLAR, RH

main75941-0D010iNGK1#,NUK1#..G,V201012-201201

main75941-0D011supersedes 75941-0D011iNGK12..G..IND;NGK10,NUK10..V..IND201303-202003

TWO TONE EXTERIOR COLOR

main75941-0D020iNGK10..(G,V)..IDN201303

82715DBRACKET, WIRING HARNESS CLAMP

main82715-0DA60iNGK10..IDN201201

main82715-52X60iNGK10,NUK10201012-201112

9046705173

main90467-05173

9046705174

main90467-05174

38 parts on this diagram · 4 diagrams in section
