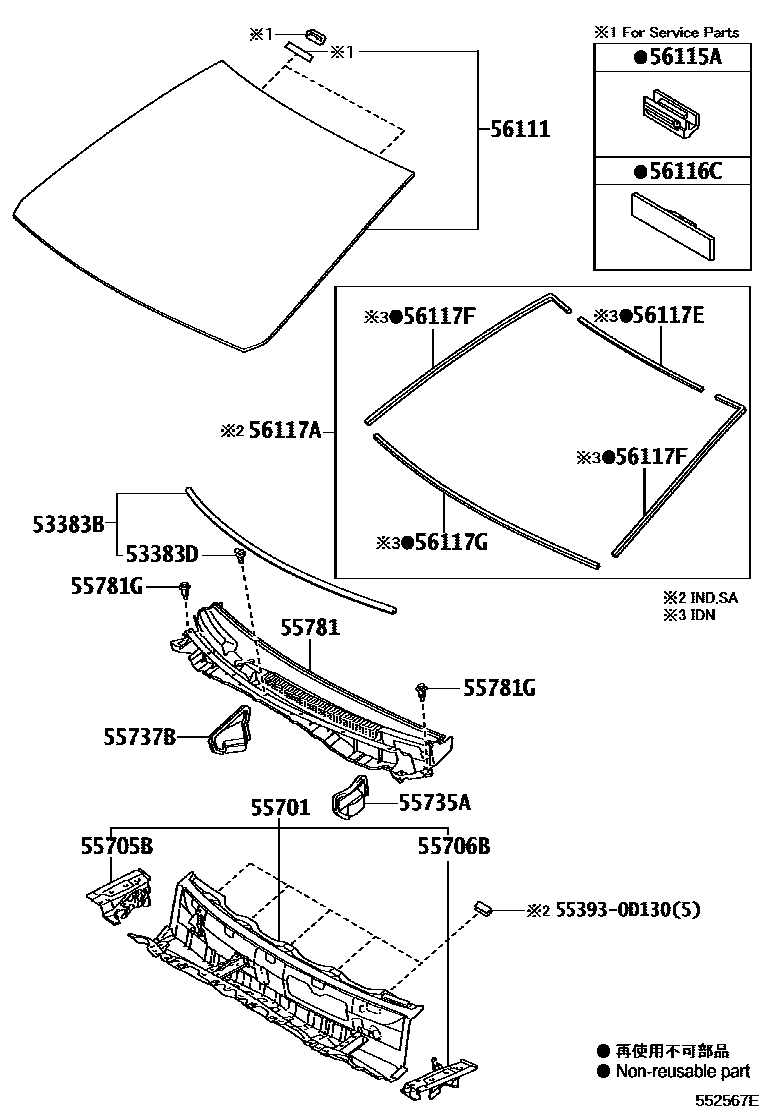

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-0D080iNGK1#,NUK1#..IND,SA201012-201303

main53383-0D130iNGK10..IDN201303

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-0D090iNGK1#,NUK1#..IND,SA201012-201303

55701PANEL SUB-ASSY, COWL

main55700-0D100iNGK1#201012-201101

sub55700-0D101

main55700-0D101iNGK1#201102-201107

sub55700-0D102

main55700-0D102iNGK1#,NUK1#201108-201303

main55700-0D250iNGK10..IDN201303

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0D070iNGK1#,NUK1#..IND,SA201012-201303

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0D080iNGK1#,NUK1#201012-201303

55735APLATE, WATER GUARD, LH

main55734-0D020iNGK1#,NUK1#201012-201303

main55734-0D040iNGK10..IDN201303

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-0D060iNGK1#,NUK1#201012-201303

main55737-0D150iNGK10..IDN201303

55781LOUVER, COWL VENTILATOR

main55708-0D050iNGK1#,NUK1#..IND,SA201012-201303

main55708-0D240iNGK10..IDN201303

55781GCLIP, COWL TOP VENTILATOR LOUVER

main52161-0K040iNGK1#,NUK1#..IND,SA¥120201502

(L)

main52161-16010iNGK1#,NUK1#..IND,SA¥120201502

(J)

sub52161-0K040¥120

main52161-16010iNGK1#,NUK1#..IND,SA¥120201012-201502

sub52161-0K040¥120

56111GLASS, WINDSHIELD

main56101-0D210iNGK1#,NUK1#..IND201012-201303

*LAM,T=4.76,GREEN

main56101-0D220iNGK15..SA201203-201303

*LAM,T=4.76,GREEN

main56101-0D270iNGK10..IDN201303

*LAM,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iNGK1#,NUK1#..IND,SA¥130201012-201303

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-02020iNGK10..IDN201012-201303

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50130iNGK1#,NUK1#..IND,SA¥1,610201303

*D,L=815OR610OR1265,L=5000

main56117-50130iNGK1#,NUK1#¥1,610201012-201303

*D,L=815OR610OR1265

56117EDAM, WINDOW GLASS ADHESIVE

main56117-0D100iNGK10..IDN201303-201402

sub56117-0D390

main56117-0D390iNGK10..IDN201403

56117FDAM, WINDOW GLASS ADHESIVE

main56117-0D110iNGK10..IDN201303-201402

sub56117-0D400

main56117-0D400iNGK10..IDN201403

56117GDAM, WINDOW GLASS ADHESIVE

main56117-0D120iNGK10..IDN201303-201402

sub56117-0D410

main56117-0D410iNGK10..IDN201403

553930D130PLATE, TRANSCEIVER FINISH, NO.2

main55393-0D130

17 parts on this diagram · 1 diagram in section
