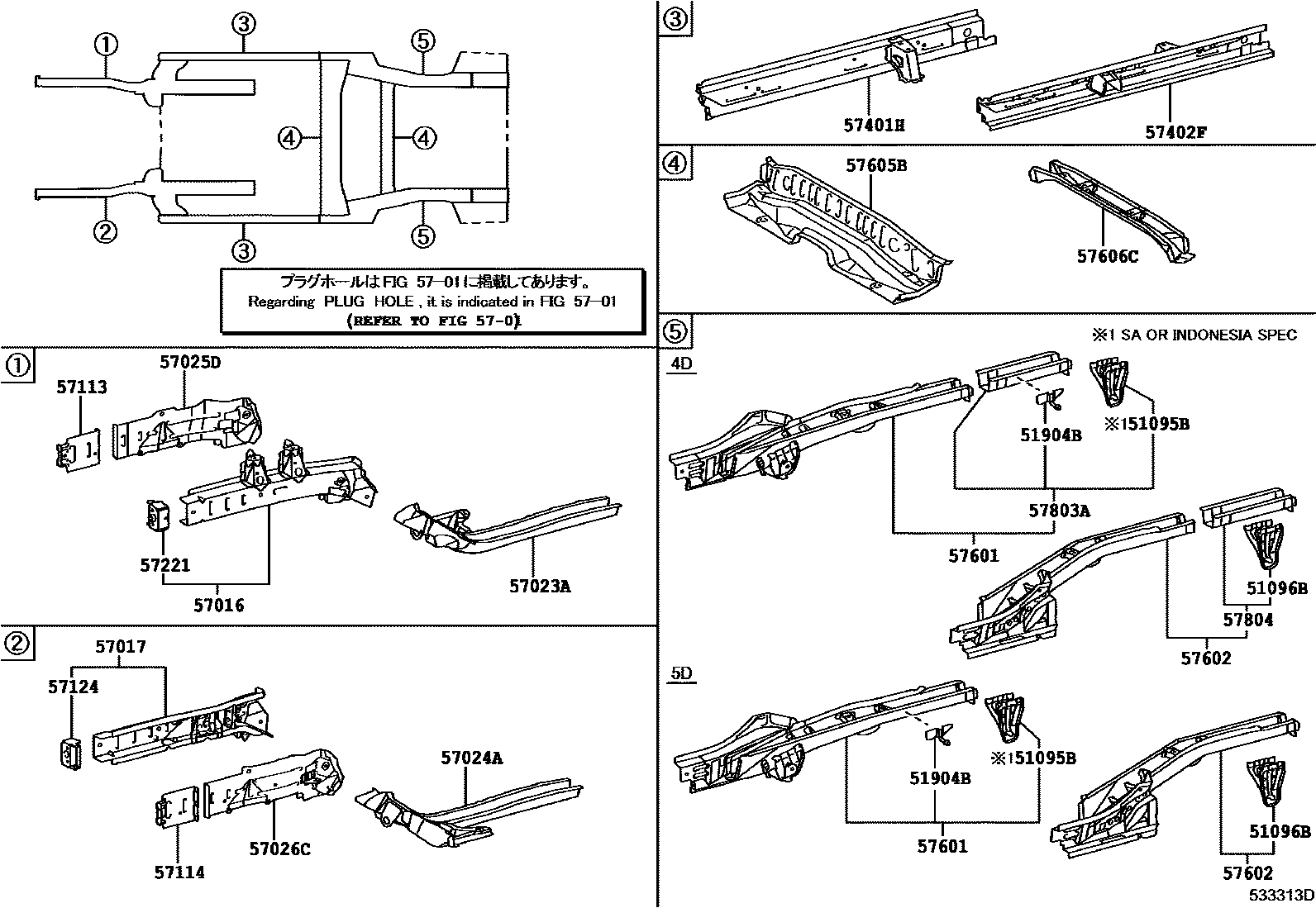

FLOOR SIDE MEMBER

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-0D030iNGK15..SA201203-201303

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51095-0D030iNGK1#,NUK1#201012-201303

51904BHANGER SUB-ASSY, EXHAUST PIPE, NO.4

main51904-0D030iNGK1#,NUK1#201012-201303

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0D080iNGK1#,NUK1#201012-201303

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0D150iNGK1#,NUK1#201012-201303

57023AMEMBER SUB-ASSY, REAR SIDE, RH

main57023-0D100iNGK1#,NUK1#201012-201303

sub57023-0D101

main57023-0D160iNGK10..IDN201303

57024AMEMBER SUB-ASSY, REAR SIDE, LH

main57024-0D120iNGK10..IDN201012

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-0D040iNGK1#,NUK1#201012-201303

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-0D040iNGK10..IDN201012

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-0D010iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012-201712

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-0D010iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012-201712

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-0D030iNGK1#,NUK1#201012-201303

57221BRACKET, FRONT SIDE MEMBER, RH

main57013-0D030iNGK1#,NUK1#201012-201303

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0D150iNGK1#,NUK10..5D201012-201303

main57401-0D151iNGK10,12,NUK10..IND,SA201510

main57401-0D160iNGK15,NUK15..4D201012-201303

main57401-0D161iNGK15,NUK15201510

main57401-0D220iNGK10..IDN201303-201501

main57401-0D221iNGK10..IDN201501

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0D150iNGK1#,NUK10..5D201012-201303

main57402-0D151iNGK10,12,NUK10..IND,SA201510

main57402-0D160iNGK15,NUK15..4D201012-201303

main57402-0D161iNGK15,NUK15201510

main57402-0D200iNGK10..IDN201303-201501

main57402-0D201iNGK10..IDN201501

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0D100iNGK10,NUK10201012-201110

sub46420-0D161

main57601-0D101iNGK10,12,NUK10..IND201303-201509

main57601-0D151iNGK15..5D201203-201303

main57601-0D152iNGK12..SA201510

main57601-0D160iNGK15,NUK15201012-201110

sub46420-0D171

main57601-0D161iNGK15,NUK15..IND201110-201303

main57601-0D162iNGK15,NUK15..IND201510

main57601-0D171iNGK15..SA201303-201510

main57601-0D172iNGK15..SA201510

main57601-0D330iNGK10,12,NUK10..IND201510

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0D100iNGK10,NUK10201012-201110

sub46430-0D161

main57602-0D101iNGK10,12,NUK10..IND201303-201509

main57602-0D140iNGK15,NUK15201012-201110

sub46430-0D171

main57602-0D141iNGK15,NUK15..IND201303-201509

main57602-0D142iNGK15,NUK15201510-201805

main57602-0D270iNGK10..IDN201303

main57602-0D420iNGK10,12,NUK10201805

main57602-0D430iNGK15,NUK15201805

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0D070iNGK1#,NUK1#201012-201303

main57605-0D140iNGK10..IDN201303

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0D080iNGK1#,NUK1#..IND,SA201303

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-0D020iNGK15,NUK15..IND201303

main57803-0D030iNGK15..SA201303

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-0D020iNGK15,NUK15201303

22 parts on this diagram · 1 diagram in section
