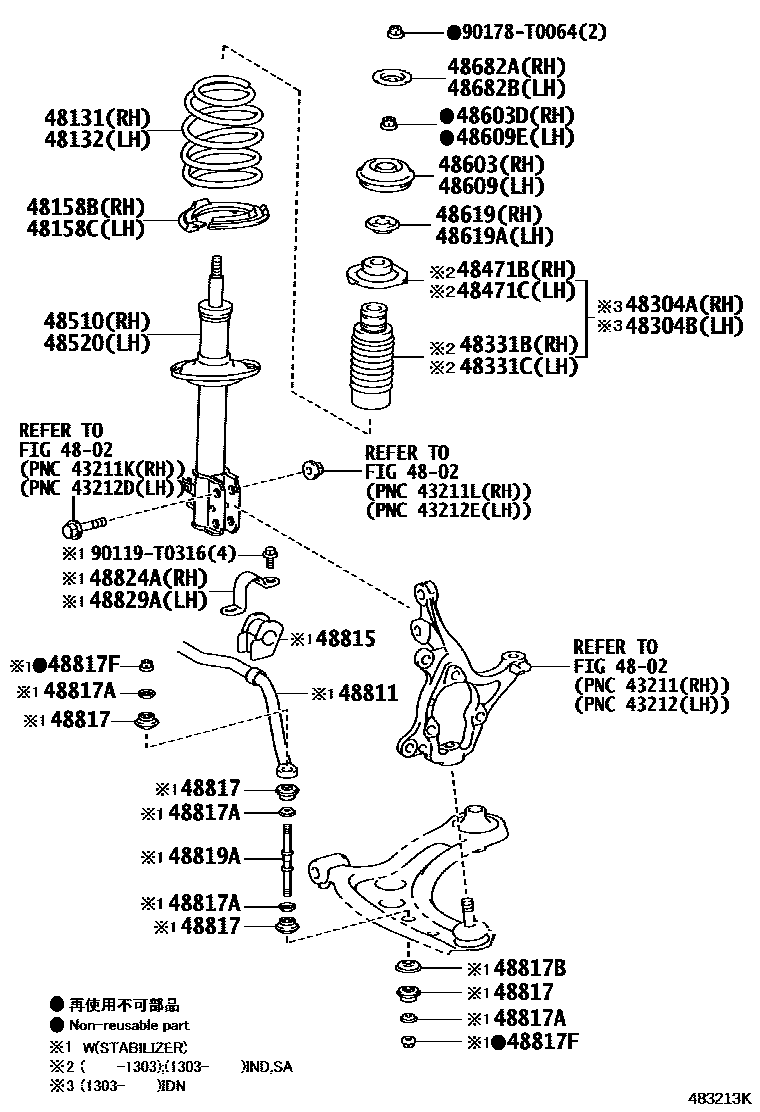

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-0D530iNGK1#..(G,STD)..IND201012-201303

main48131-0D540iNGK1#..V;NGK15..SA201012-201303

main48131-0D541iNGK12;NGK15..SA;NGK10,15..V..IND201303

main48131-0D550iNUK1#..G201108-201303

main48131-0D551iNUK1#..G,STD,SUVG201303

main48131-0D560iNUK15..V201108-201303

main48131-0D760iNGK10..STD..IDN201303

main48131-0D790iNGK10..(G,V)..IDN201303

48132SPRING, FRONT COIL, LH

main48131-0D530iNGK1#..(G,STD)..IND201012-201303

main48131-0D540iNGK1#..V;NGK15..SA201012-201303

main48131-0D541iNGK12;NGK15..SA;NGK10,15..V..IND201303

main48131-0D550iNUK1#..G201108-201303

main48131-0D551iNUK1#..G,STD,SUVG201303

main48131-0D560iNUK1#..SUVV,V201108-201303

main48131-0D760iNGK10..STD..IDN201303

main48131-0D790iNGK10..(G,V)..IDN201303

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-0D140iNGK1#,NUK1#..IND,SA201609

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-0D140iNGK1#,NUK1#..IND,SA201609

48304ASEAT SUB-ASSY, BUMPER, RH

main48304-0D130iNGK10..IDN201303

48304BSEAT SUB-ASSY, BUMPER, LH

main48304-0D130iNGK10..IDN201303

48331BBUMPER, FRONT SPRING, RH

main48331-0D070iNGK1#,NUK1#201012-201303

48331CBUMPER, FRONT SPRING, LH

main48331-0D070iNGK1#,NUK1#201012-201303

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-0D070iNGK1#,NUK1#201012-201303

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-0D070iNGK1#,NUK1#201012-201303

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-0D310iNGK1#..G,STD201012-201111

MARK 48510-0D310

sub48510-0D311

main48510-0D311iNGK1#..(G,STD)..IND201112-201210

MARK 48510-0D311

main48510-0D312iNGK1#..(G,STD)..IND201211-201212

MARK 48510-0D312

main48510-0D320iNGK1#..V201012-201111

MARK 48510-0D320

sub48510-0D321

main48510-0D321iNGK1#..V201112-201210

MARK 48510-0D321

main48510-0D322iNGK1#..V201211-201212

MARK 48510-0D322

main48510-0D330iNUK1#..G201108-201111

MARK 48510-0D330

sub48510-0D331

main48510-0D331iNUK1#..G201112-201210

MARK 48510-0D331

main48510-0D332iNUK1#..G201211-201303

MARK 48510-0D332

main48510-0D350iNUK15..V201108-201111

MARK 48510-0D350

sub48510-0D351

main48510-0D351iNUK15..V201112-201210

MARK 48510-0D351

main48510-0D352iNUK15..V201211-201212

MARK 48510-0D352

main48510-0D700iNGK15..SA201203-201212

MARK 48510-0D700

main48510-0D851iNGK15..SA;NGK10,12,NUK10..IND,SA;NGK15,NUK15..(G,V)..IND201303-201308

MARK 48510-0D851

sub48510-0D852

main48510-0D852iNGK10..IDN201305-201712

MARK 48510-0D852

sub48510-0D853

main48510-0D853iNGK15..SA;NGK10,12,NUK10..IND,SA;NGK15,NUK15..(G,V)..IND201609

MARK 48510-0D853

main48510-0DA60iNGK15,NUK15..STD..IND201303-201308

MARK 48510-0DA60

sub48510-0DA62

main48510-0DA61iNGK15,NUK15..STD..IND201308-201609

MARK 48510-0DA61

main48510-0DA62iNGK15,NUK15..STD..IND201609

MARK 48510-0DA62

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-0D310iNGK1#..G,STD201012-201111

MARK 48510-0D310

sub48510-0D311

main48510-0D311iNGK1#..(G,STD)..IND201112-201210

MARK 48510-0D311

main48510-0D312iNGK1#..(G,STD)..IND201211-201212

MARK 48510-0D312

main48510-0D320iNGK1#..V201012-201111

MARK 48510-0D320

sub48510-0D321

main48510-0D321iNGK1#..V201112-201210

MARK 48510-0D321

main48510-0D322iNGK1#..V201211-201212

MARK 48510-0D322

main48510-0D330iNUK1#..G201108-201111

MARK 48510-0D330

sub48510-0D331

main48510-0D331iNUK1#..G201112-201210

MARK 48510-0D331

main48510-0D332iNGK10;NUK15..V;NGK15..SA;NGK15..(G,V)..IND201211-201303

MARK 48510-0D332

main48510-0D350iNUK15..V201108-201111

MARK 48510-0D350

sub48510-0D351

main48510-0D351iNUK15..V201112-201210

MARK 48510-0D351

main48510-0D352iNUK15..V201211-201212

MARK 48510-0D352

main48510-0D700iNGK15..SA201203-201212

MARK 48510-0D700

main48510-0D851iNGK10..IDN201303-201308

MARK 48510-0D851

sub48510-0D852

main48510-0D852iNGK10..IDN201305-201712

MARK 48510-0D852

sub48510-0D853

main48510-0D853iNGK15..SA;NGK10,12,NUK10..IND,SA;NGK15,NUK15..(G,V)..IND201609

MARK 48510-0D853

main48510-0DA60iNGK15,NUK15..STD..IND201303-201308

MARK 48510-0DA60

sub48510-0DA62

main48510-0DA61iNGK15,NUK15..STD..IND201308-201609

MARK 48510-0DA61

main48510-0DA62iNGK15,NUK15..STD..IND201609

MARK 48510-0DA62

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0D110iNGK1#,NUK1#201012-201206

sub48609-0D111

main48609-0D111iNGK1#,NUK1#201206-201303

main48609-0D130iNGK10..IDN201303

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-T0064iNGK10..IDN201302-201305

main90179-12145iNGK1#,NUK1#201012-201302

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0D110iNGK1#,NUK1#201012-201206

sub48609-0D111

main48609-0D111iNGK1#,NUK1#201206-201303

main48609-0D130iNGK10..IDN201303

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-T0064iNGK10..IDN201302-201305

main90179-12145iNGK1#,NUK1#201012-201302

48619BEARING, STRUT MOUNTING, RH

main48619-52030iNGK1#,NUK1#201012-201303

48619ABEARING, STRUT MOUNTING, LH

main48619-52030iNGK10..IDN201012-201303

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-0D060iNGK1#,NUK1#201012-201206

sub48682-0D061

main48682-0D061iNGK1#,NUK1#201206-201303

main48682-0D090iNGK10..IDN201303

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-0D060iNGK1#,NUK1#201012-201206

sub48682-0D061

main48682-0D061iNGK1#,NUK1#201206-201303

main48682-0D090iNGK10..IDN201303

48811BAR, STABILIZER, FRONT

main48811-0D070iNGK15..SA;NGK1#,NUK15..V201012-201303

main48811-0D160iNGK10..(G,V)..IDN201303

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0D070iNGK10..(G,V)..IDN201303

main48815-0D160iNGK12;NGK15..SA;NGK10,15,NUK1#..(SUVV,V)..IND201012-201303

48817CUSHION, FRONT STABILIZER

main48817-52010iNGK15..SA;NGK10..G..IDN;NGK10,15,NUK15..V201012-201709

sub48817-52011

main48817-52011iNGK10..(G,V)..IDN201710

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02179iNGK15..SA;NGK1#,NUK15..V201012-201303

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02178iNGK15..SA;NGK1#,NUK15..V201012-201303

48817FNUT(FOR FRONT STABILIZER BAR)

main90177-T0007iNGK10..(G,V)..IDN201405

(L)

main94182-10800iNGK10..(G,V)..IDN201405

(J)

main94182-10800iNGK12;NGK15..SA;NGK10,15,NUK1#..(SUVV,V)..IND201012-201405

48819ABOLT, FRONT STABILIZER

main48819-70010iNGK10..(G,V)..IDN201012-201311

main48821-52040iNGK12;NGK15..SA;NGK10,15,NUK1#..(SUVV,V)..IND201308

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-0D060iNGK12;NGK15..SA;NGK10,15,NUK1#..(SUVV,V)..IND201012-201303

main48824-0D080iNGK10..(G,V)..IDN201303

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-0D060iNGK12;NGK15..SA;NGK10,15,NUK1#..(SUVV,V)..IND201012-201303

main48824-0D080iNGK10..(G,V)..IDN201303

90119T0316

main90119-T0316

90178T0064

main90178-T0064

32 parts on this diagram · 1 diagram in section
