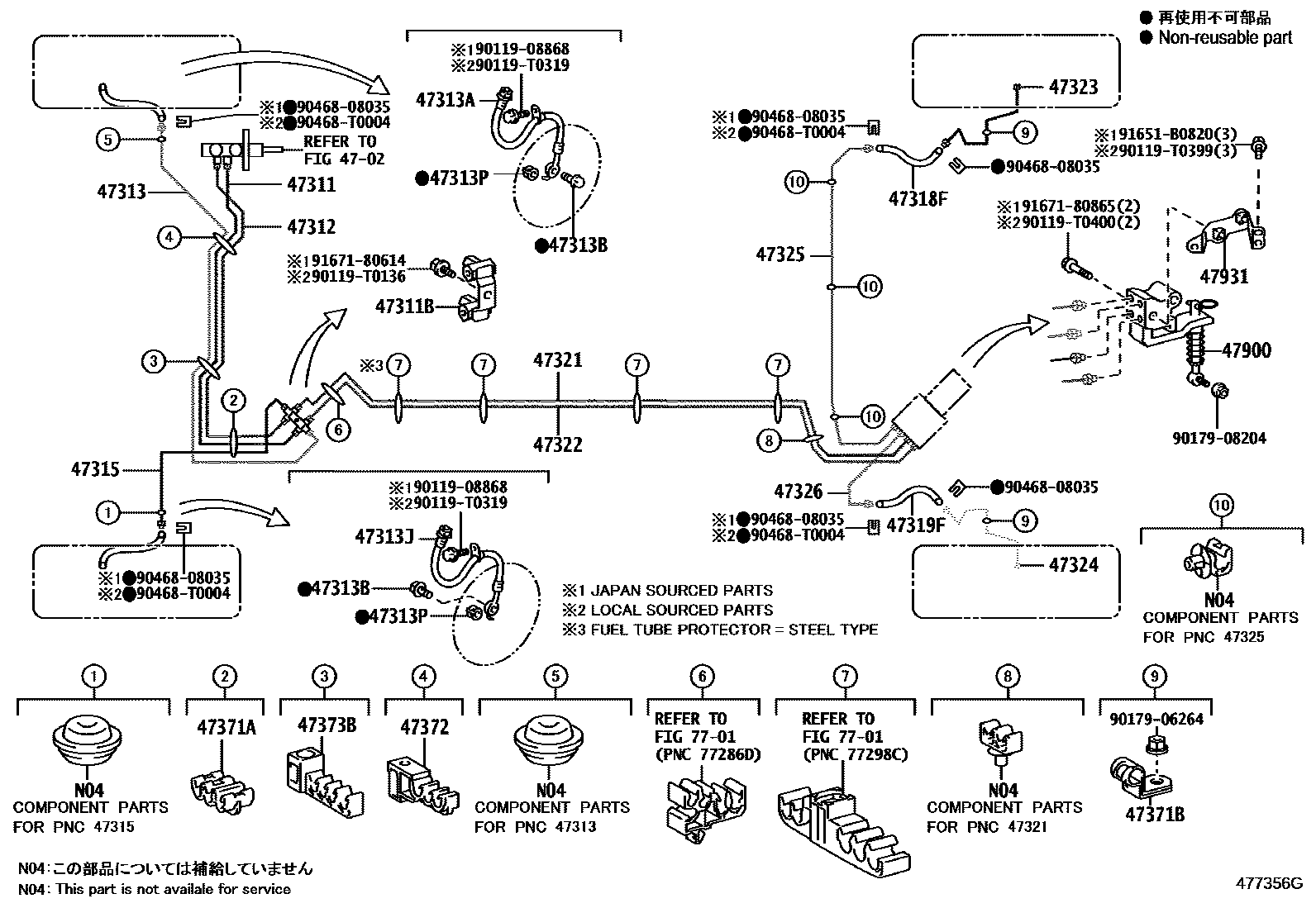

BRAKE TUBE & CLAMP

0001 1W/O(ABS) 0002 1W(ABS) 0004 1W(ABS) 0005 1W(ABS)

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-0D390iNGK1#,NUK15..G..IND201012-201303

SAFTY PACKAGE

main47311-0D400iNGK1#,NUK15..(G,STD)..IND201012-201303

main47311-0D600iNGK10..(G,STD)..IDN201303

main47311-0D610iNGK10..V..IDN201303

main47311-0DB10iNGK1#,NUK1#..IND,SA201609

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iNGK1#,NUK15..G..IND201012-201303

SAFTY PACKAGE

main90413-10322iNGK10..(G,STD)..IDN201012

47312TUBE, FRONT BRAKE, NO.2

main47312-0D330iNGK1#,NUK15..G..IND201012-201303

SAFTY PACKAGE

main47312-0D340iNGK1#,NUK15..(G,STD)..IND201012-201303

main47312-0D530iNGK10..(G,STD)..IDN201303

main47312-0D540iNGK10..V..IDN201303

main47312-0DA40iNGK1#,NUK1#..IND,SA201609

47313TUBE, FRONT BRAKE, NO.3

main47313-0D260iNGK1#,NUK15..G..IND201012-201303

SAFTY PACKAGE

main47313-0D270iNGK10,15,NUK15..V..IND201303-201504

main47313-0D520iNGK10..(G,STD)..IDN201303

main47313-0D530iNGK10..V..IDN201303

main47313-0D860iNGK1#,NUK1#..IND,SA201609

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94201iNGK10..IDN201303

main90947-T2064iNGK1#,NUK1#..IND,SA201303

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iNGK10..IDN201012

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90080-94202iNGK10..IDN201303

main90947-T2065iNGK1#,NUK1#201012-201303

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iNGK1#,NUK1#..IND,SA201303-201802

main47389-50021×2iNGK1#,NUK1#..IND,SA201802

47315TUBE, FRONT BRAKE, NO.5

main47315-0D300iNGK1#,NUK15..G..IND201012-201303

SAFTY PACKAGE

main47315-0D310iNGK10,15,NUK15..(G,STD,SUVG)..IND201303-201609

main47315-0D440iNGK10..(G,STD)..IDN201303

main47315-0D450iNGK10..V..IDN201303

main47315-0D840iNGK1#,NUK1#..IND,SA201609

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90080-94215iNGK10..IDN201303

main90947-T2066iNGK1#,NUK1#201012-201303

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90080-94215iNGK10..IDN201303

main90947-T2066iNGK1#,NUK1#201012-201303

47321TUBE, REAR BRAKE, NO.1

main47321-0D150iNGK10..G201012-201303

SAFTY PACKAGE

main47321-0D230iNGK10..G,STD201012-201303

main47321-0D240iNGK15..4D..SA;NGK15,NUK15..V201012-201303

SAFTY PACKAGE

main47321-0D250iNGK15,NUK15..V201303-201504

main47321-0D330iNGK10..(G,STD)..IDN201303-201712

main47321-0D340iNGK10..V..IDN201303-201712

47322TUBE, REAR BRAKE, NO.2

main47322-0D150iNGK10..G201012-201303

SAFTY PACKAGE

main47322-0D230iNGK10..G,STD201012-201303

main47322-0D240iNGK15,NUK15..(G,STD)..IND201609

main47322-0D250iNGK15,NUK15..(G,STD)..IND201012-201303

main47322-0D330iNGK10..(G,STD)..IDN201303-201712

main47322-0D340iNGK10..V..IDN201303-201712

47323TUBE, REAR BRAKE, NO.3

main47323-0D160iNGK10..IDN201303

main47323-0D170iNGK1#,NUK1#..IND,SA201303

47324TUBE, REAR BRAKE, NO.4

main47324-0D160iNGK10..IDN201303

main47324-0D170iNGK1#,NUK1#..IND,SA201303

47325TUBE, REAR BRAKE, NO.5

main47325-0D020iNGK1#,NUK15..(G,STD)..IND201012-201303

main47325-0D060iNGK10..(G,STD)..IDN201303

47326TUBE, REAR BRAKE, NO.6

main47326-0D020iNGK1#,NUK15..(G,STD)..IND201012-201303

main47326-0D060iNGK10..(G,STD)..IDN201303

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00868iNGK1#,NUK1#..IND,SA201303

47371BCLAMP, BRAKE TUBE, NO.6

main90461-10781×2iNGK1#,NUK1#..IND,SA201303

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D02iNGK1#,NUK1#201012-201303

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D44iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012-201712

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-0D060iNGK10,15,NUK15..(G,V)..IND201303-201501

LUXURY PACKAGE(W(ABS & *ERCDM))

main47900-0D061supersedes 47900-0D061iNGK10,15,NUK15..(G,STD,SUVG)..IND201502-201609

LUXURY PACKAGE(W(ABS & *ERCDM))

47931BRACKET, LOAD SENSING VALVE

main47931-0D060supersedes 47931-0D060iNGK10,NUK15..G;NGK15..(G,STD)..IND201012-201303

SAFTY PACKAGE

main47931-0D080iNGK10..(G,STD)..IDN201303

7701

9011908868

main90119-08868

90119T0136

main90119-T0136

90119T0319

main90119-T0319

90119T0399

main90119-T0399

90119T0400

main90119-T0400

9017906264

main90179-06264

9017908204

main90179-08204

9046808035

main90468-08035

90468T0004

main90468-T0004

91651B0820

main91651-B0820

9167180614

main91671-80614

9167180865

main91671-80865

37 parts on this diagram · 4 diagrams in section
