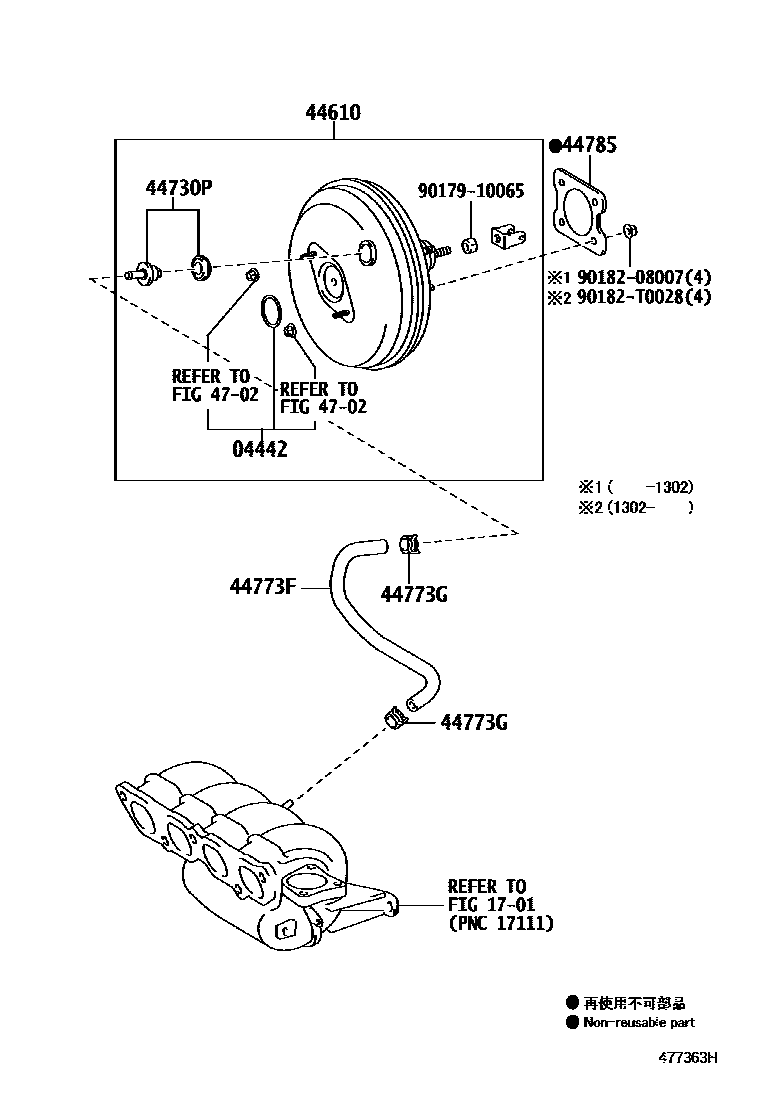

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

04442FITTING KIT, BRAKE BOOSTER

main04442-0D020iNGK1#,NUK1#..IND,SA201303

1701

44610BOOSTER ASSY, BRAKE

main44610-09790iNGK1#..IND,SA201303

main44610-09800iNUK1#201108-201303

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-09040iNGK1#,NUK1#201012-201303

44773FHOSE, UNION TO CHECK VALVE

main44773-0D050iNGK1#..IND,SA201303

main44773-0D070iNGK10..IDN201303-201712

main44773-52200iNUK1#201108-201303

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main96133-41500×2iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012-201712

44785GASKET, BRAKE BOOSTER

main44785-0D020iNGK10..IDN201608

main44785-0D040iNGK1#,NUK1#..IND,SA201411

main44785-12040iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012-201607

4702

9017910065

main90179-10065

9018208007

main90182-08007

90182T0028

main90182-T0028

11 parts on this diagram · 2 diagrams in section
