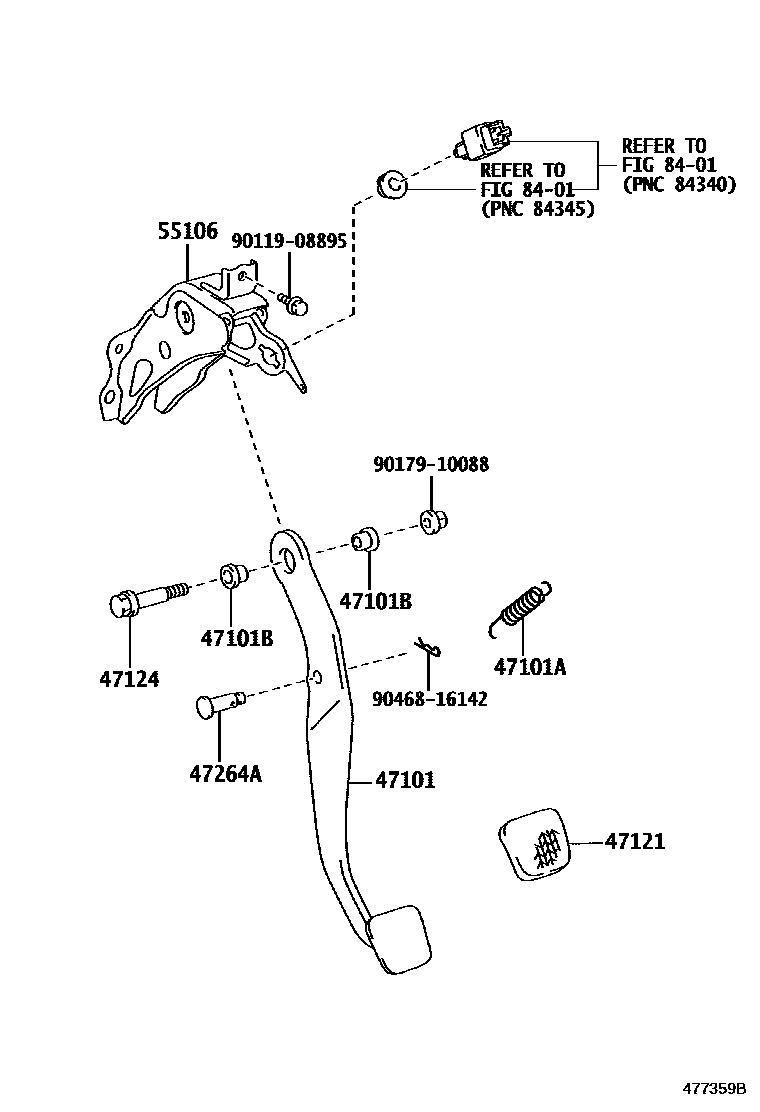

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-0D210iNGK1#,NUK1#201012-201303

main47101-0D370iNGK10..IDN201303

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-16072iNGK10..IDN¥140201012-201303

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNGK1#,NUK1#¥120201012-201303

47121PAD, BRAKE PEDAL

main31321-0D050iNGK1#,NUK1#..IND,SA201012-201303

main31321-0D090iNGK10..IDN201303-201712

47124SHAFT, BRAKE PEDAL

main90109-10167iNGK1#,NUK1#¥190201012-201303

47264APIN(FOR PUSH ROD)

main90249-08051iNGK10..IDN¥170201012-201303

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0D080iNGK1#,NUK1#201012-201509

sub55106-0D081

main55106-0D081iNGK1#,NUK1#..IND,SA201510

main55106-0D190iNGK10..IDN201303

8401

9011908895

main90119-08895¥100

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

11 parts on this diagram · 1 diagram in section
