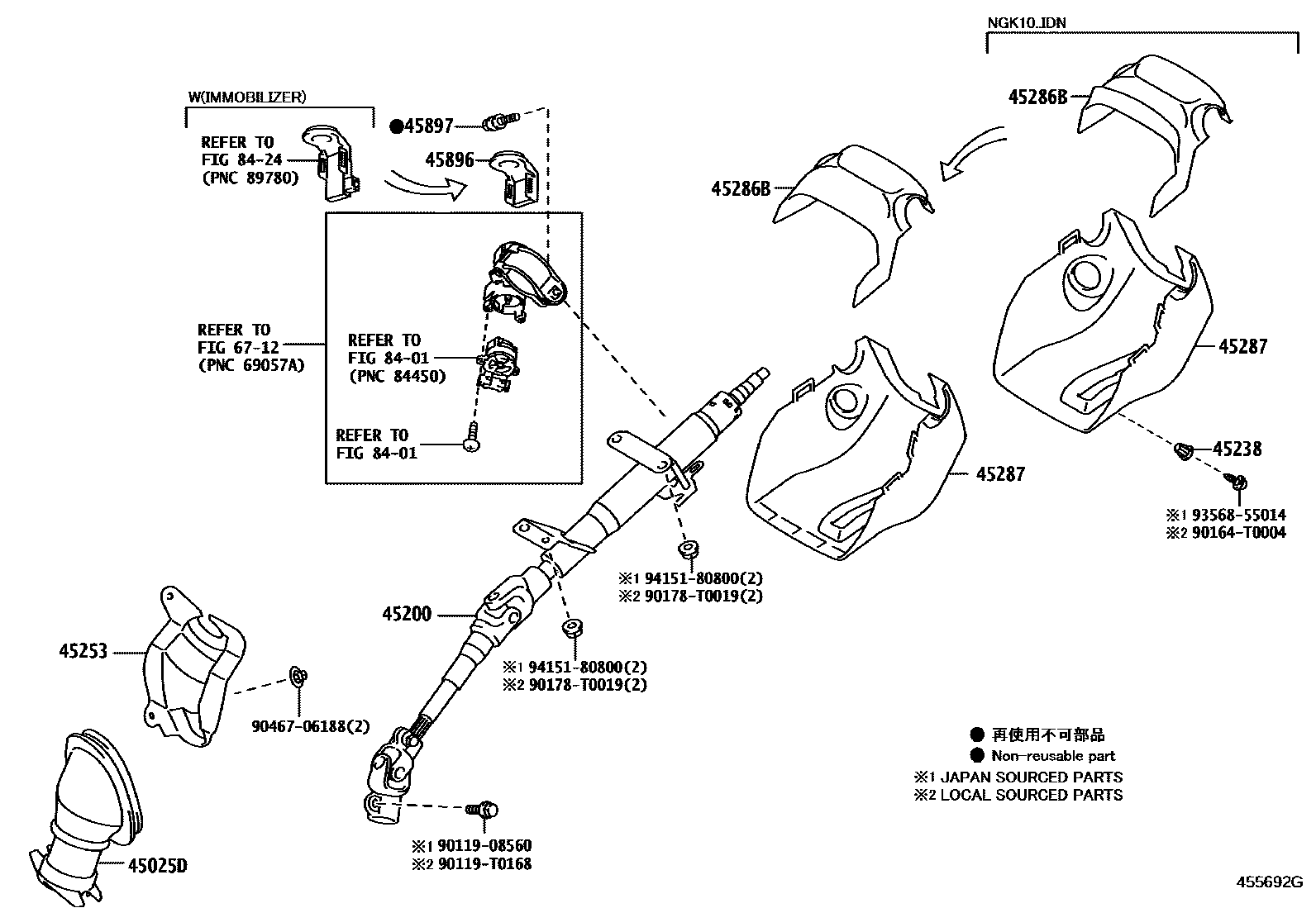

STEERING COLUMN & SHAFT

0001 1 0003 1 0005 1W(POWER STEERING)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0D120iNGK1#,NUK1#..IND,SA201012-201303

main45025-0D170iNGK10..IDN201303

45200POST ASSY, STEERING

main45200-0D370iNGK1#..STD..IND201012-201207

main45200-0D400iNGK10..STD..IDN201303-201501

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iNGK10..IDN201303

45253COVER, STEERING COLUMN HOLE

main45255-0D090iNGK1#,NUK1#..IND,SA201012-201303

main45255-0D140iNGK10..IDN201303

45286BCOVER, STEERING COLUMN, UPR

main45286-0D120-C0iNGK10,12,NUK10..SUVG,SUVV201404

BLACK,TRIM2#

main45286-0D120-C0iNGK1#,NUK1#..(G,V)..IND201012-201401

BLACK,TRIM1#,4#

main45286-0D120-C0iNGK1#,NUK1#..(G,V)..IND201012-201401

BLACK,TRIM1#

main45286-0D150-C0iNGK10..IDN201303-201712

BLACK,TRIM1#

main45286-0D230iNGK10,15,NUK1#..V..IND201303

45287COVER, STEERING COLUMN, LWR

main45287-0D080-C0iNGK10..IDN201303-201712

BLACK,TRIM1#

main45287-0D100-C0iNGK10,12,NUK10..SUVG,SUVV201404

BLACK,TRIM2#

main45287-0D100-C0iNGK1#..STD;NGK15..G..SA201012-201401

BLACK,TRIM1#,4#

main45287-0D100-C0iNGK1#..STD;NGK15..G..SA201012-201401

BLACK,TRIM1#

main45287-0D190iNGK10,15,NUK1#..V..IND201303

45896PLATE, IGNITION SWITCH ATTACHMENT

main81871-0D050iNGK10..IDN201303

45897BOLT, STEERING LOCK SET

main45897-12020iNGK1#,NUK1#..IND,SA201012

6712

8401

8424

9011908560

main90119-08560

90119T0168

main90119-T0168

90164T0004

main90164-T0004

90178T0019

main90178-T0019

9046706188

main90467-06188

9356855014

main93568-55014

9415180800

main94151-80800

18 parts on this diagram · 3 diagrams in section
