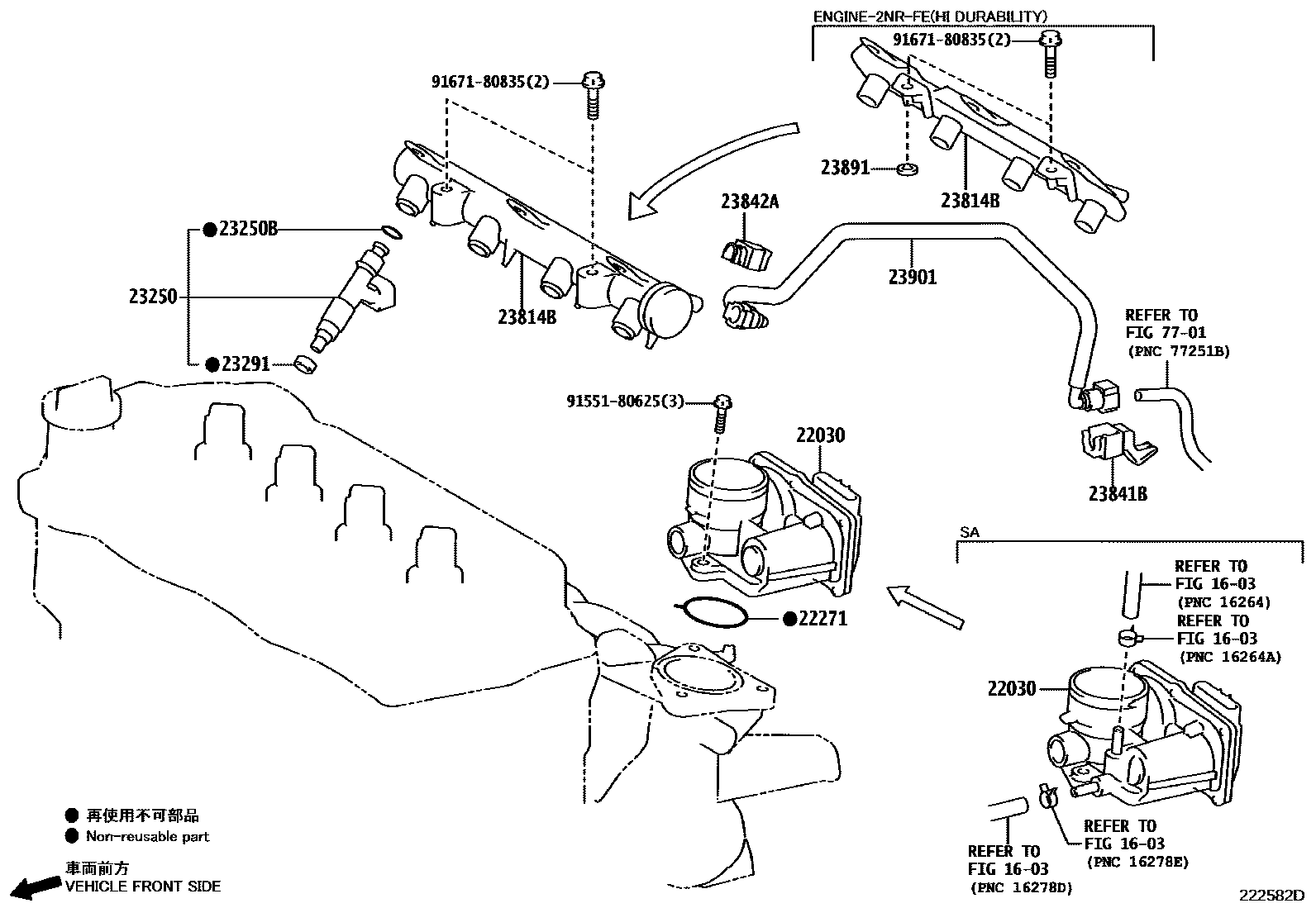

FUEL INJECTION SYSTEM

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Y010i2NRFE,3NRFE..NGK1#..IND201303-201407

main22030-0Y050i2NRFE,3NRFE..NGK1#..IND201407

main22030-0Y060i2NRFE..NGK12,15..SA201407

main22030-47030i3NRFE..NGK10..IDN201303

*288

main22030-47040i2NRFE..NGK12,15..SA201303-201407

22271GASKET, THROTTLE BODY

main22271-47030i2NRFE,3NRFE..NGK1#201209-201303

*289

23250INJECTOR ASSY, FUEL

main23209-09220×4i2NRFE,3NRFE..NGK1#201212-201303

*289

main23209-49215×4i2NRFE,3NRFE..NGK1#201209-201212

*289

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×4i2NRFE,3NRFE..NGK1#..IND,SA201303

*288

23291INSULATOR, INJECTOR VIBRATION

main23291-0Y010×4i2NRFE,3NRFE..NGK1#201209-201303

*289

main23291-47010×4i2NRFE,3NRFE..NGK1#201012-201303

*288

23814BPIPE, FUEL DELIVERY

main23814-47030i2NRFE,3NRFE..NGK1#201209-201303

*289

main23814-47010i2NRFE..NGK15..IND201410

ENGINE-2NR-FE(HI DURABILITY)

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i2NRFE,3NRFE..NGK10,15..G,STD,V201012-201712

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-47020i2NRFE,3NRFE..NGK1#201012-201303

23891SPACER, FUEL DELIVERY

main23891-47020×2i2NRFE..NGK15..IND201410

ENGINE-2NR-FE(HI DURABILITY)

23901TUBE SUB-ASSY, FUEL

main23901-0Y030i2NRFE,3NRFE..NGK10,15..G,STD,V201012-201712

7701

9155180625

main91551-80625

9167180835

main91671-80835

14 parts on this diagram · 1 diagram in section
