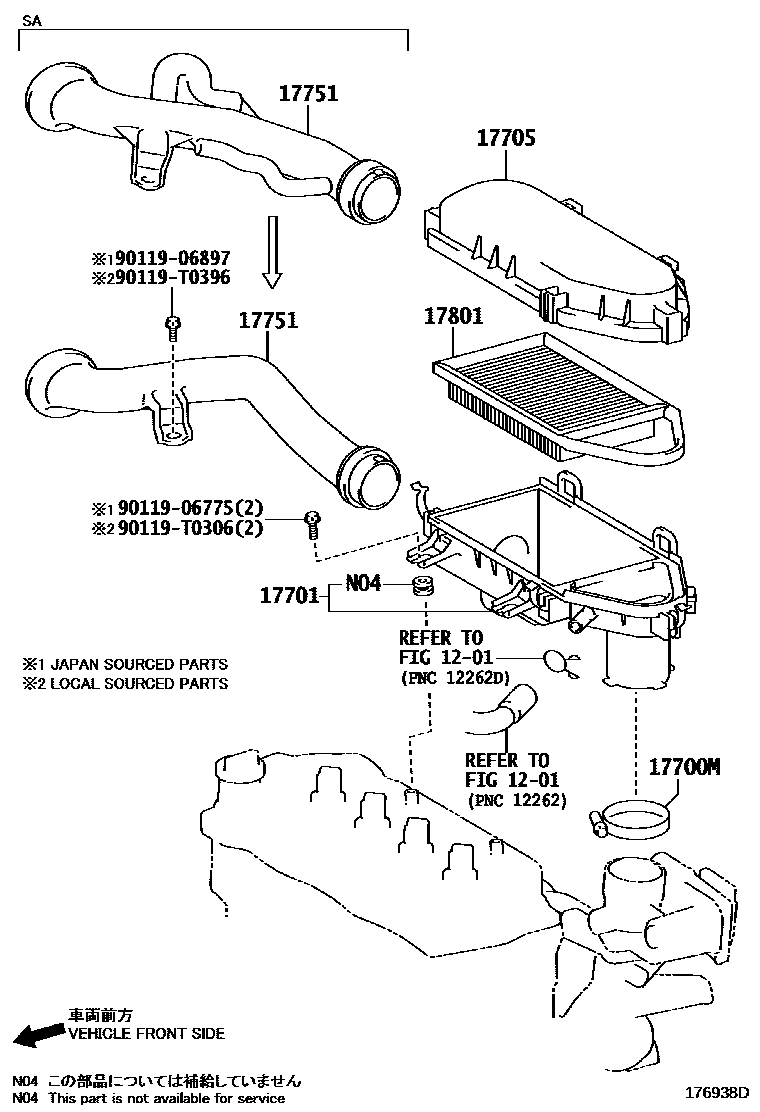

AIR CLEANER

0001 1 0002 1

1201

17700MCLAMP(FOR AIR CLEANER)

main90460-70003i2NRFE,3NRFE..NGK1#201012-201303

17701CASE SUB-ASSY, AIR CLEANER

main17701-0N050i1NDTV..NUK1#201303

main17701-0Y020i2NRFE,3NRFE..NGK1#201012-201303

main17701-0Y070i3NRFE..NGK10..IDN201303

17705CAP SUB-ASSY, AIR CLEANER

main17705-0N080i1NDTV..NUK1#201303

main17705-0Y050i2NRFE,3NRFE..NGK1#201012-201303

main17705-0Y100i3NRFE..NGK10..IDN201303

17751INLET, AIR CLEANER, NO.1

main17751-0N040i1NDTV..NUK1#201303

main17751-0Y030i2NRFE,3NRFE..NGK1#..IND201012-201303

main17751-0Y070i2NRFE..NGK12;2NRFE..NGK15..SA201303

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0N050i1NDTV..NUK1#201108-201303

main17801-0Y020i2NRFE,3NRFE..NGK1#..IND,SA201303

9011906775

main90119-06775

9011906897

main90119-06897

90119T0306

main90119-T0306

90119T0396

main90119-T0396

10 parts on this diagram · 2 diagrams in section
