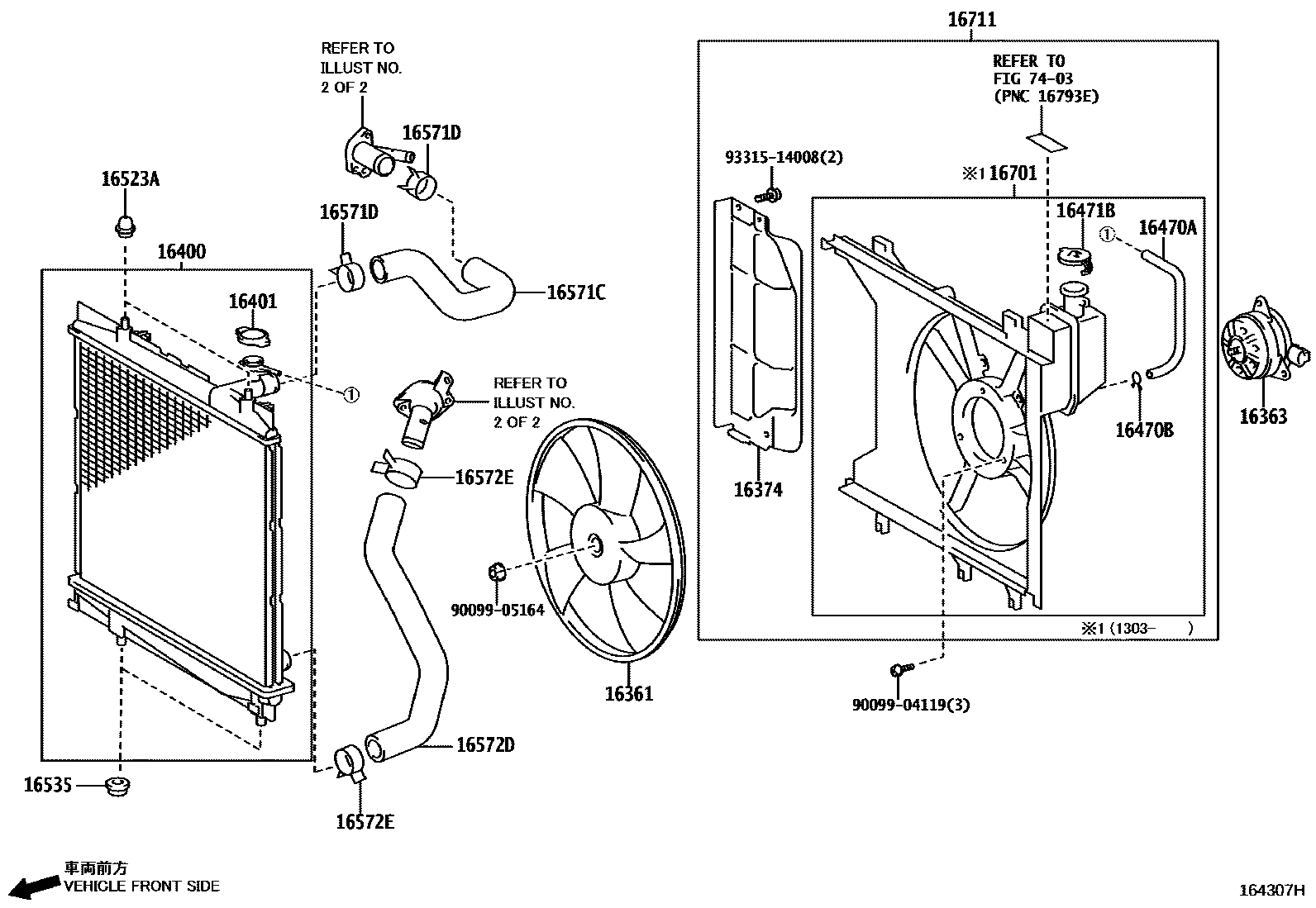

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16361FAN

main16361-0N060i1NDTV..NUK1#201108-201303

main16361-0Y010i2NRFE,3NRFE..NGK1#201012-201303

sub16361-0Y070

main16361-0Y060i3NRFE..NGK10..IDN201303

main16361-0Y070i2NRFE,3NRFE..NGK1#..IND,SA201303

16363MOTOR, COOLING FAN

main16363-0M010i3NRFE..NGK10..IDN201101-201208

main16363-0Y020i2NRFE,3NRFE..NGK1#201012-201303

sub16363-0M010

main16363-33020i1NDTV..NUK1#201108-201510

sub16363-33021

main16363-33021i1NDTV..NUK1#201510-201607

sub16363-33070

main16363-33070i1NDTV..NUK1#201607

16374INSULATOR, COOLING FAN MOTOR

main16366-0Y010i2NRFE,3NRFE..NGK1#..IND,SA201012-201303

main16366-0Y080i3NRFE..NGK10..IDN201303

16400RADIATOR ASSY

main16400-0N040i1NDTV..NUK1#201108-201303

main16400-0Y030i2NRFE,3NRFE..NGK1#..IND,SA201012-201303

16401CAP SUB-ASSY, RADIATOR

main16401-0M010i2NRFE,3NRFE..NGK1#201909

main16401-0Y060i2NRFE,3NRFE..NGK1#..IND,SA201309-201908

(L)

main16401-31480i2NRFE,3NRFE..NGK10,15201012-201311

main16401-31480i3NRFE..NGK10..IDN201309-201504

(J)

main16401-31520i3NRFE..NGK10..IDN201505

(J)

sub16401-36020

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-0Y010i2NRFE,3NRFE..NGK1#201012-201303

main16377-0Y080i3NRFE..NGK10..IDN201303

main16377-0Y090i2NRFE,3NRFE..NGK1#..IND,SA201303

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2NRFE,3NRFE..NGK1#..IND,SA201012-201303

16471BCAP, RESERVE TANK

main16471-23010i2NRFE,3NRFE..NGK1#201012-201303

16523ACUSHION, RADIATOR SUPPORT

main16523-0Y010i3NRFE..NGK10..IDN201012-201303

16535SUPPORT, RADIATOR, LOWER

main90480-T0001i1NDTV,2NRFE,3NRFE..NGK1#,NUK1#..IND,SA201012-201303

16571CHOSE, RADIATOR, NO.1

main16571-0N040i1NDTV..NUK1#201108-201303

main16571-0Y040i2NRFE,3NRFE..NGK1#201012-201303

sub16571-0Y041

main16571-0Y041i2NRFE,3NRFE..NGK1#..IND,SA201303

16571DCLIP, RADIATOR HOSE, NO.1

main90467-33006i1NDTV,2NRFE,3NRFE..NGK1#,NUK1#201012-201303

16572DHOSE, RADIATOR, NO.2

main16572-0N040i1NDTV..NUK1#201108-201303

main16572-0Y030i2NRFE,3NRFE..NGK1#201012-201303

16572ECLIP, RADIATOR HOSE, NO.2

main90467-33006i1NDTV,2NRFE,3NRFE..NGK1#,NUK1#..IND,SA201012-201303

16701SHROUD SUB-ASSY, FAN

main16701-0Y010i2NRFE,3NRFE..NGK1#..IND,SA201303

main16701-0Y020i3NRFE..NGK10..IDN201303

16711SHROUD, FAN

main16711-0N070i1NDTV..NUK1#201108-201303

main16711-0Y010i2NRFE,3NRFE..NGK1#..IND,SA201012-201303

main16711-0Y080i3NRFE..NGK10..IDN201303

7403

9009904119

main90099-04119

9009905164

main90099-05164

9331514008

main93315-14008

20 parts on this diagram · 6 diagrams in section
