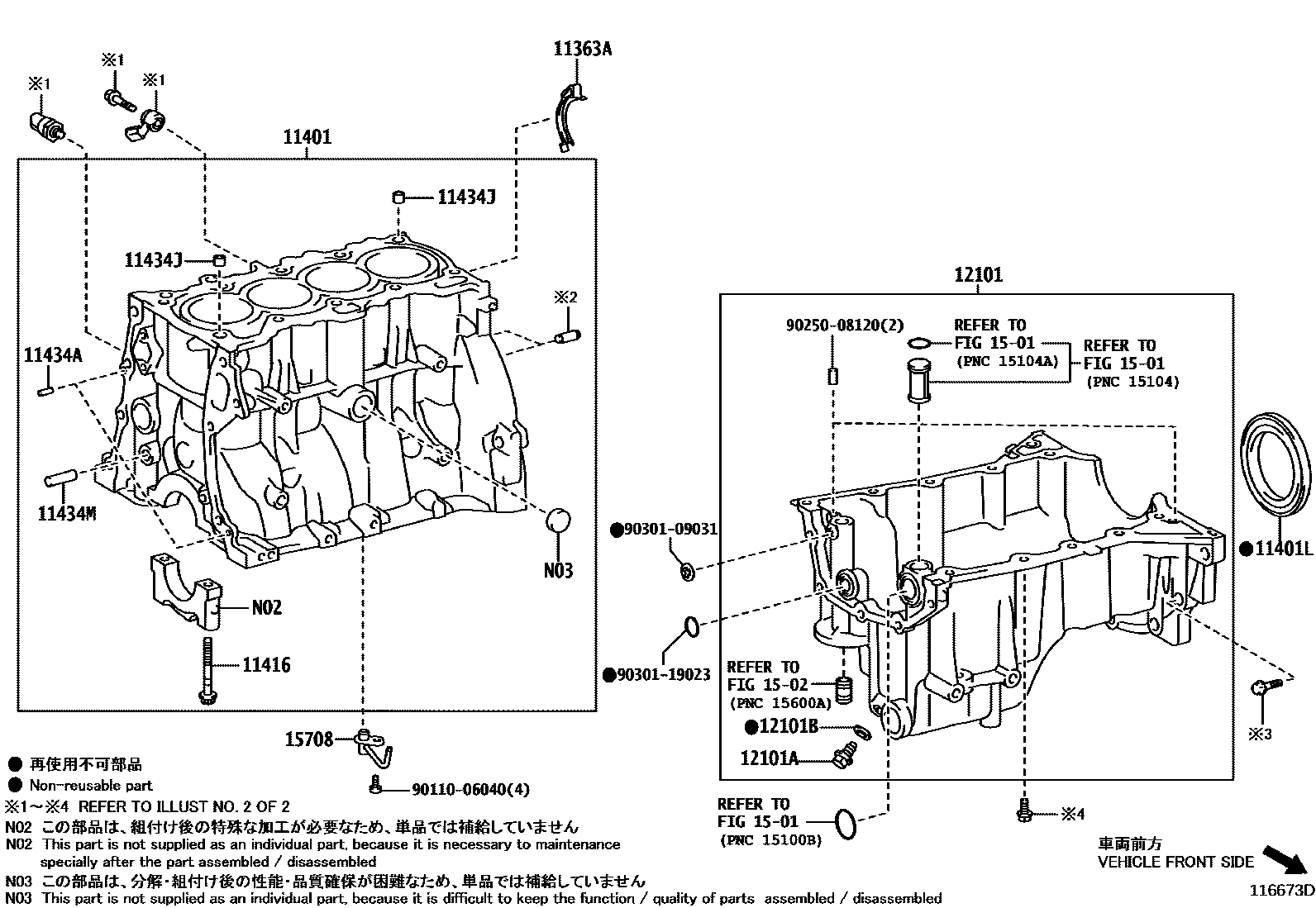

CYLINDER BLOCK
11363ACOVER, FLYWHEEL HOUSING SIDE
(L)
(J)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
*288
*289
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0,*288
L=12,OD=4.0,*289
L=12,OD=4.0
L=18,OD=8
11434JPIN, RING (FOR CYLINDER HEAD SET)
*288
*289
11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)
*288
*289
12101PAN SUB-ASSY, OIL
*289
TYPE A:REFER ILLUST.
*288
TYPE B:REFER ILLUST.
12101APLUG(FOR OIL PAN DRAIN)
*289
*288
12101BGASKET(FOR OIL PAN DRAIN PLUG)
*289
*288
1501
1502
15708NOZZLE SUB-ASSY, OIL, NO.1
*288
*289
9011006040
main90110-06040
9025008120
main90250-08120
9030109031
main90301-09031
9030119023
main90301-19023
17 parts on this diagram · 5 diagrams in section
