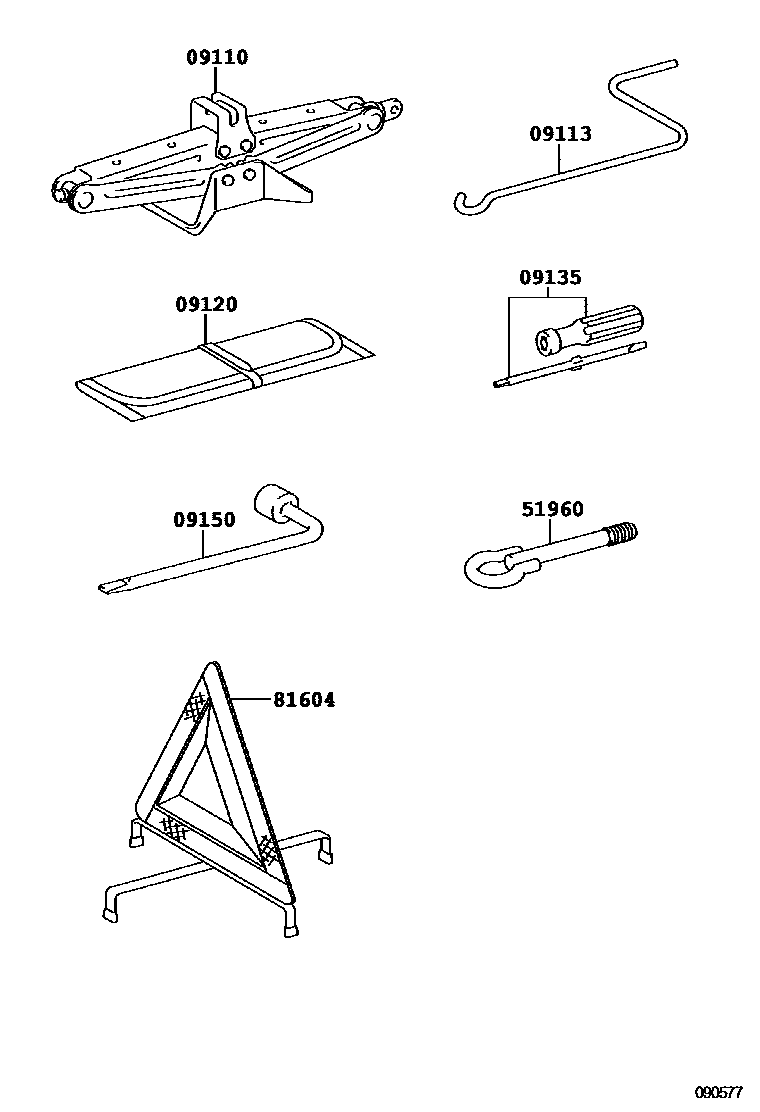

STANDARD TOOL

09110JACK ASSY

main09111-0D100iNGK1#,NUK1#201012-202003

main09111-0D120iNGK10..IDN201303

09113HANDLE, JACK

main09113-0D070iNGK1#,NUK1#201012-201405

sub09113-0D140

main09113-0D090iNGK10..IDN201303

main09113-0D140iNGK1#,NUK1#..IND,SA201406

09120BAG, TOOL

main09120-0D040iNGK1#,NUK1#201012-201310

sub09120-0D070

main09120-0D070iNGK15..SA201310-201510

main09120-0D080iNGK10..IDN201303

09135DRIVER, SCREW

main09135-0K010iNGK1#,NUK1#..IND,SA201012-201309

sub09135-0K060

main09135-0K060iNGK1#,NUK1#..IND201310-201802

main90089-99009iNGK10..IDN201303

09150WRENCH, HUB NUT BOX

main09150-02070iNGK1#,NUK1#..IND,SA201012-201312

main09150-02080iNGK1#,NUK1#..IND,SA201401

main09150-0D040iNGK10..IDN201303-201712

51960HOOK ASSY, FRONT

main51960-0D130iNGK1#,NUK1#..IND,SA201012-201303

main51960-0D170iNGK10..IDN201303-201712

81604REFLECTOR SET, TRIANGLE

main81604-0D020iNGK1#,NUK1#..IND201012-201303

main81604-0D020iNGK1#,NUK1#..IND201303

INDONESIA SPEC

7 parts on this diagram · 1 diagram in section
