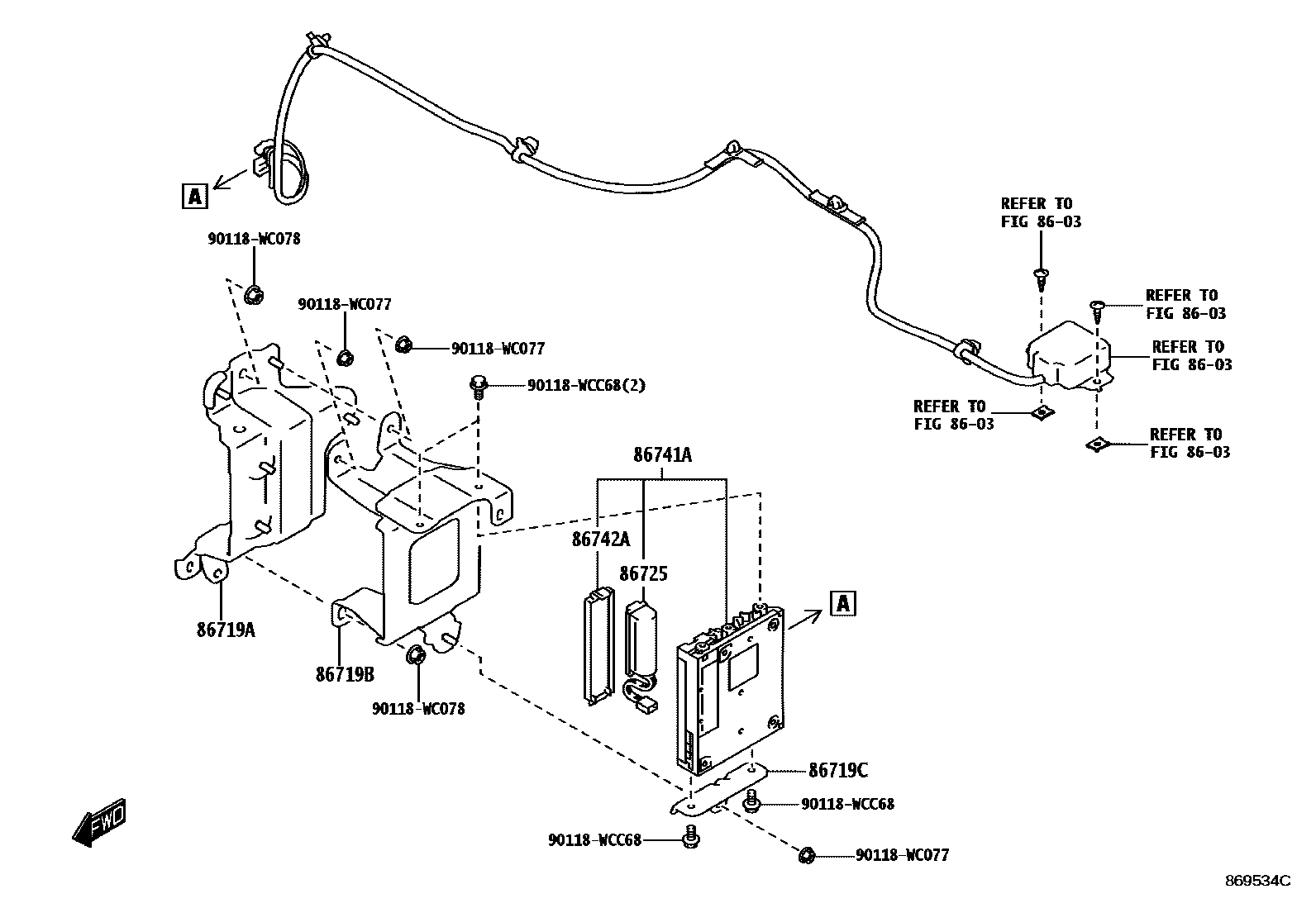

TELEPHONE & MAYDAY
8603
86719ABRACKET, TELEPHONE NO.1
POS.73
86719BBRACKET, TELEPHONE NO.2
POS.78
86719CBRACKET, TELEPHONE NO.3
POS.78
86725BATTERY, MOBILEPHONE
POS.78
86741ATRANSCEIVER, TELEMATICS
86742ACOVER, TRANSCEIVER
POS.78
90118WC077
main90118-WC077
90118WC078
main90118-WC078
90118WCC68
main90118-WCC68
10 parts on this diagram · 3 diagrams in section
