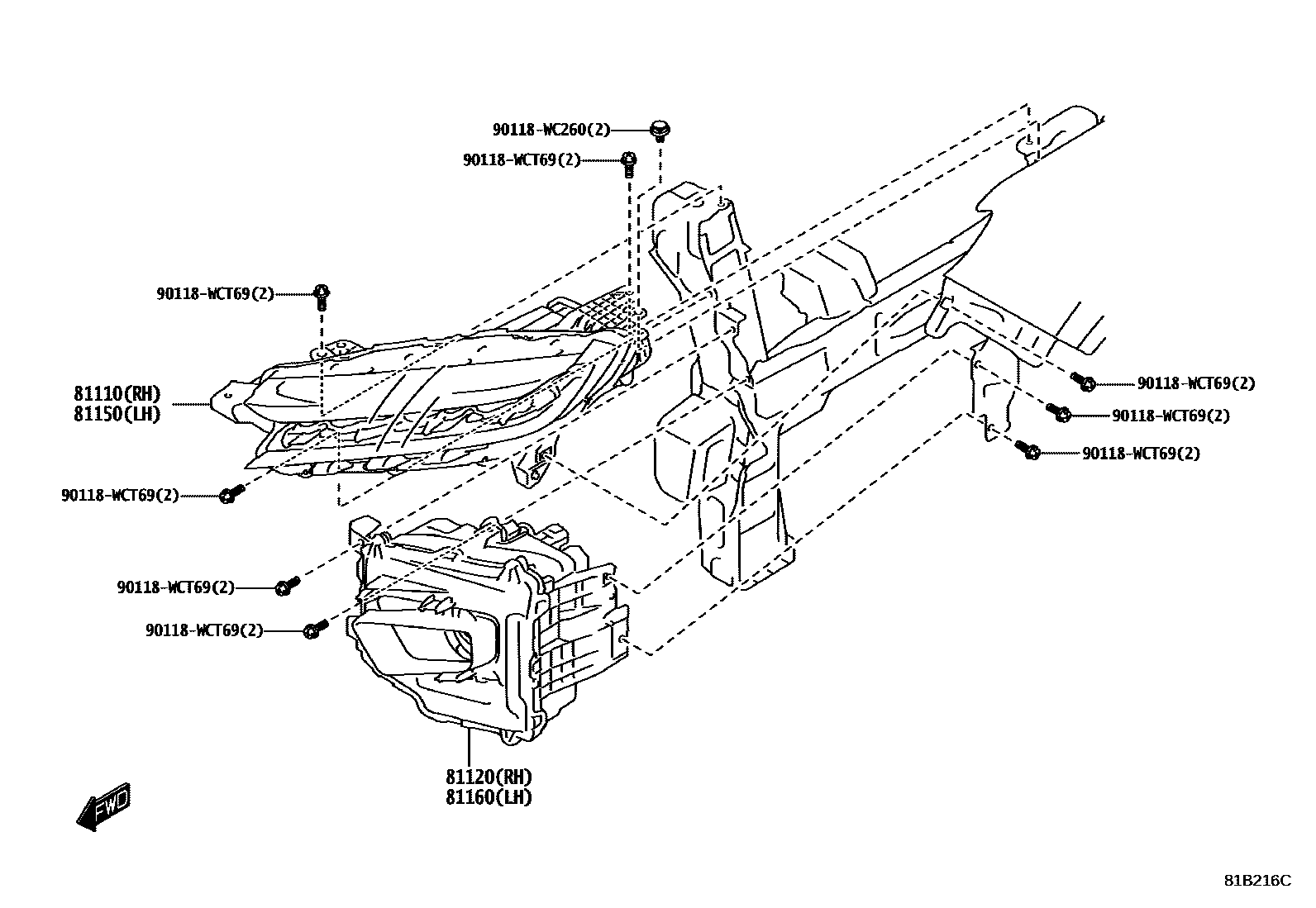

HEADLAMP

0001 1 0002 1

81110HEADLAMP ASSY, RH

main81110-WC011iFG231XD202401

POS.77

81120HEADLAMP SUB-ASSY, RH

main81110-WC015iFGB3293202401

POS.77

sub81110-WC027

main81130-WC023iFG231XD202401

POS.79

sub81130-WC037

81150HEADLAMP ASSY, LH

main81150-WC011iFG231XD202401

POS.77

81160HEADLAMP SUB-ASSY, LH

main81150-WC015iFGB3293202401

POS.77

sub81150-WC027

main81170-WC023iFG231XD202401

POS.79

sub81170-WC037

90118WC260

main90118-WC260

90118WCT69

main90118-WCT69

6 parts on this diagram · 2 diagrams in section
