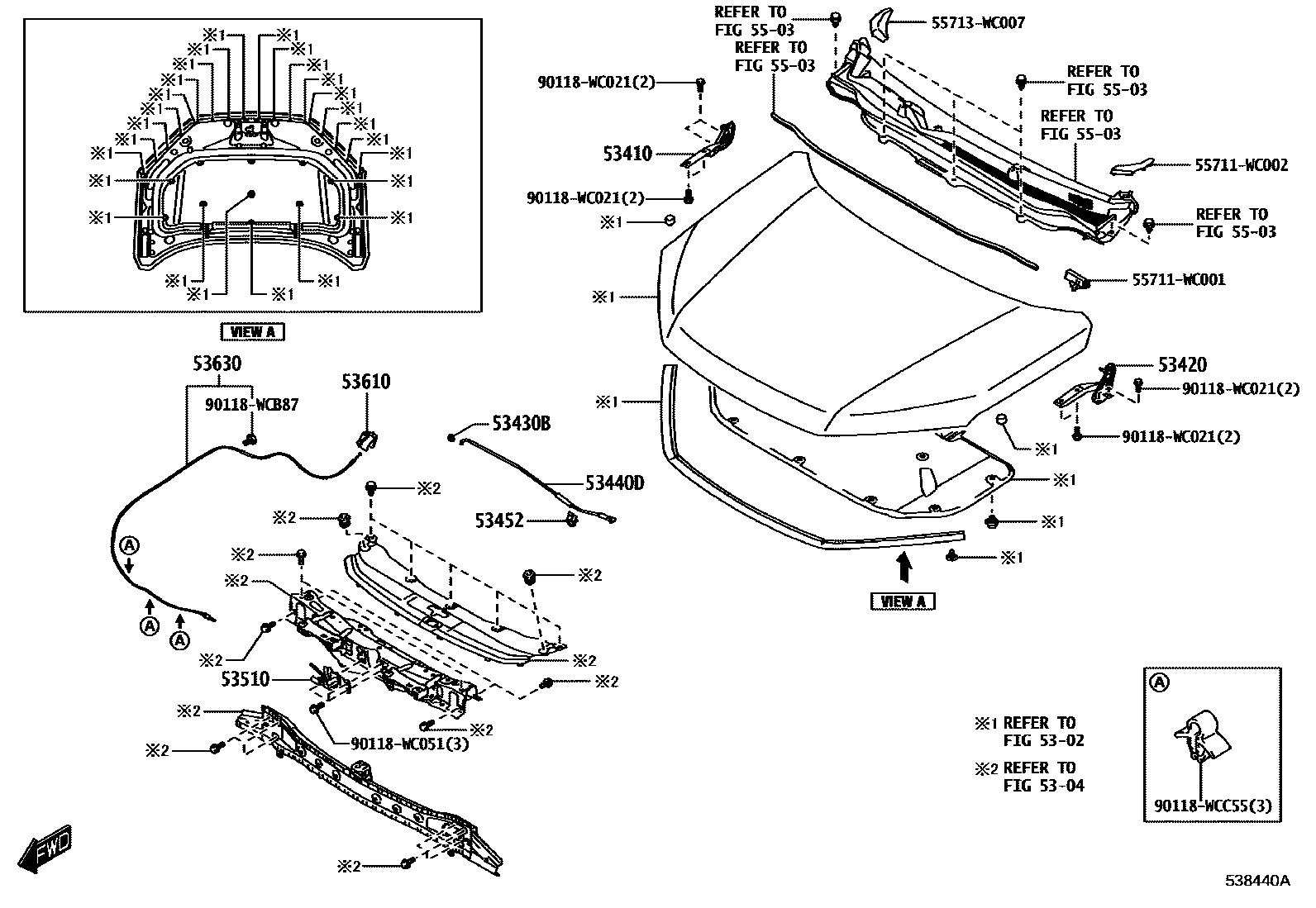

HOOD LOCK & HINGE

0001 1WITHOUT(VEHICLE APPROACH NOTI0002 1WITH(VEHICLE APPROACH NOTICE)

5302

5304

53410HINGE ASSY, HOOD, RH

main53410-WC006iFG232X4202401

POS.82

53420HINGE ASSY, HOOD, LH

main53420-WC006iFG232X4202401

POS.82

53430BGROMMET(FOR HOOD SUPPORT)

main90118-WCE54iFG232X4202401

POS.82

53440DSUPPORT ASSY, HOOD

main53440-WC006iFG232X4202401

POS.82

53452HOLDER, HOOD STAY

main90118-WCE60iFG232X4202401

POS.82

53510LOCK ASSY, HOOD

main53510-WC016iFG232X4202401

POS.82

53610LEVER ASSY, HOOD LOCK RELEASE

main53510-WC015iFG232X4202401

POS.82

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-WC007iFG232X4202401

POS.82

5503

55711WC001PANEL, COWL TOP, OUTER

main55711-WC001

55711WC002PANEL, COWL TOP, OUTER

main55711-WC002

55713WC007PANEL, FRONT WINDOW LOWER

main55713-WC007

90118WC021

main90118-WC021

90118WC051

main90118-WC051

90118WCB87

main90118-WCB87

90118WCC55

main90118-WCC55

18 parts on this diagram · 2 diagrams in section
