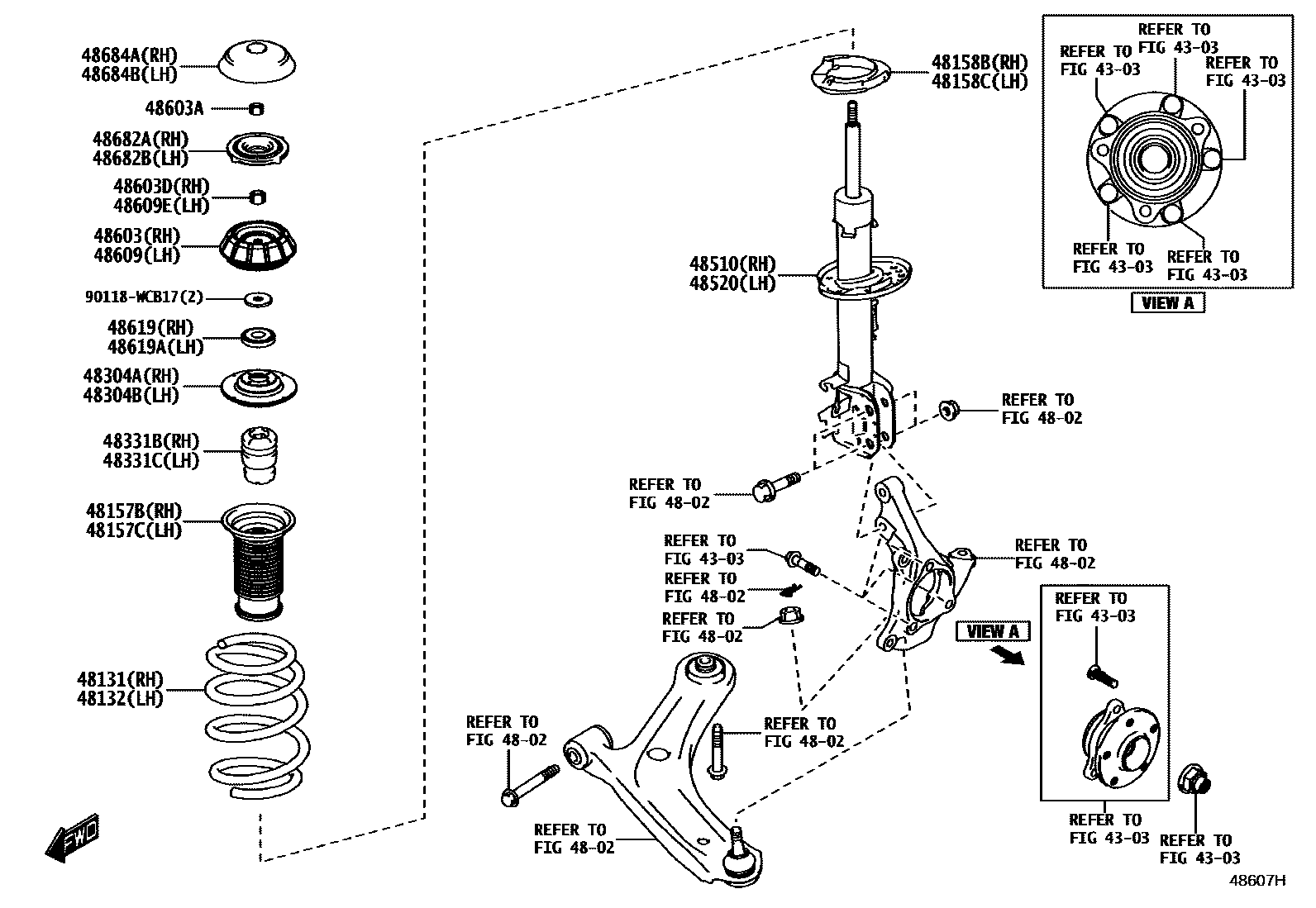

FRONT SPRING & SHOCK ABSORBER
4303
4802
48131SPRING, FRONT COIL, RH
POS.73
POS.81
POS.82
POS.77
48132SPRING, FRONT COIL, LH
POS.73
POS.81
POS.82
POS.77
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
POS.73
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
POS.73
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
POS.73
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
POS.73
48304ASEAT SUB-ASSY, BUMPER, RH
POS.73
48304BSEAT SUB-ASSY, BUMPER, LH
POS.73
48331BBUMPER, FRONT SPRING, RH
POS.73
POS.77
48331CBUMPER, FRONT SPRING, LH
POS.73
POS.77
48510ABSORBER ASSY, SHOCK, FRONT RH
POS.73
POS.82
POS.77
48520ABSORBER ASSY, SHOCK, FRONT LH
POS.73
POS.82
POS.77
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
POS.73
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
POS.73
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
POS.73
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
POS.73
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
POS.73
48619BEARING, STRUT MOUNTING, RH
POS.73
48619ABEARING, STRUT MOUNTING, LH
POS.73
48682ASUPPORT, FRONT SUSPENSION, NO.2 RH
POS.73
48682BSUPPORT, FRONT SUSPENSION, NO.2 LH
POS.73
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
POS.73
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
POS.73
90118WCB17
main90118-WCB17
26 parts on this diagram · 2 diagrams in section
