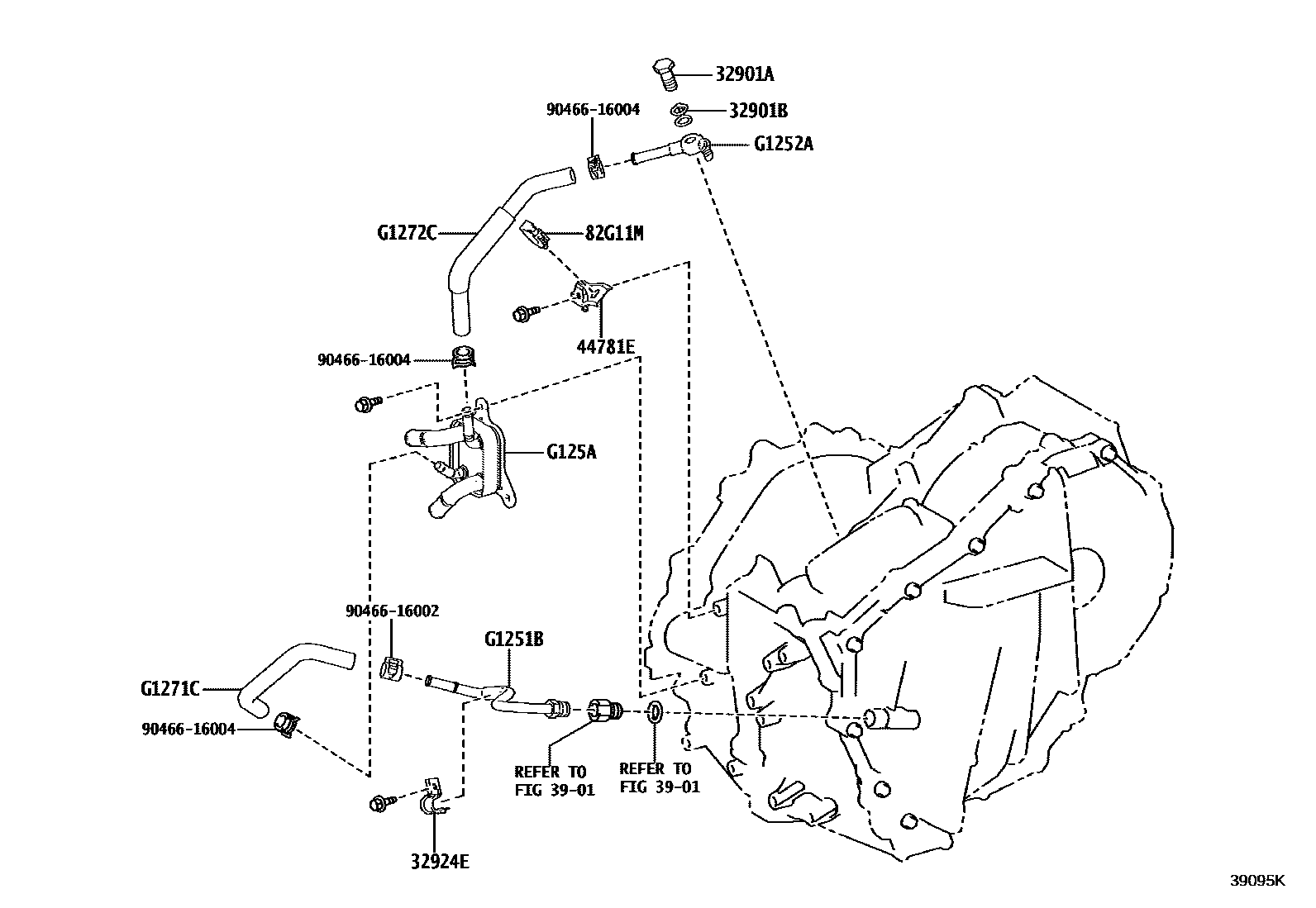

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901ABOLT, UNION(FOR OIL COOLER)

32901BGASKET(FOR OIL COOLER UNION)

32924ECLAMP, OIL COOLER TUBE, NO.2

3901

44781EBRACKET, HOSE

82G11MCLAMP, WIRING HARNESS

G1251BPIPE, MOTOR COOLING, NO.1

G1252APIPE, MOTOR COOLING, NO.2

G125ACOOLER, MOTOR COOLING

mainG125A-0D010

G1271CHOSE, MOTOR COOLING, NO.1

G1272CHOSE, MOTOR COOLING, NO.2

9046616002

main90466-16002¥220

9046616004

main90466-16004¥180

13 parts on this diagram · 1 diagram in section
