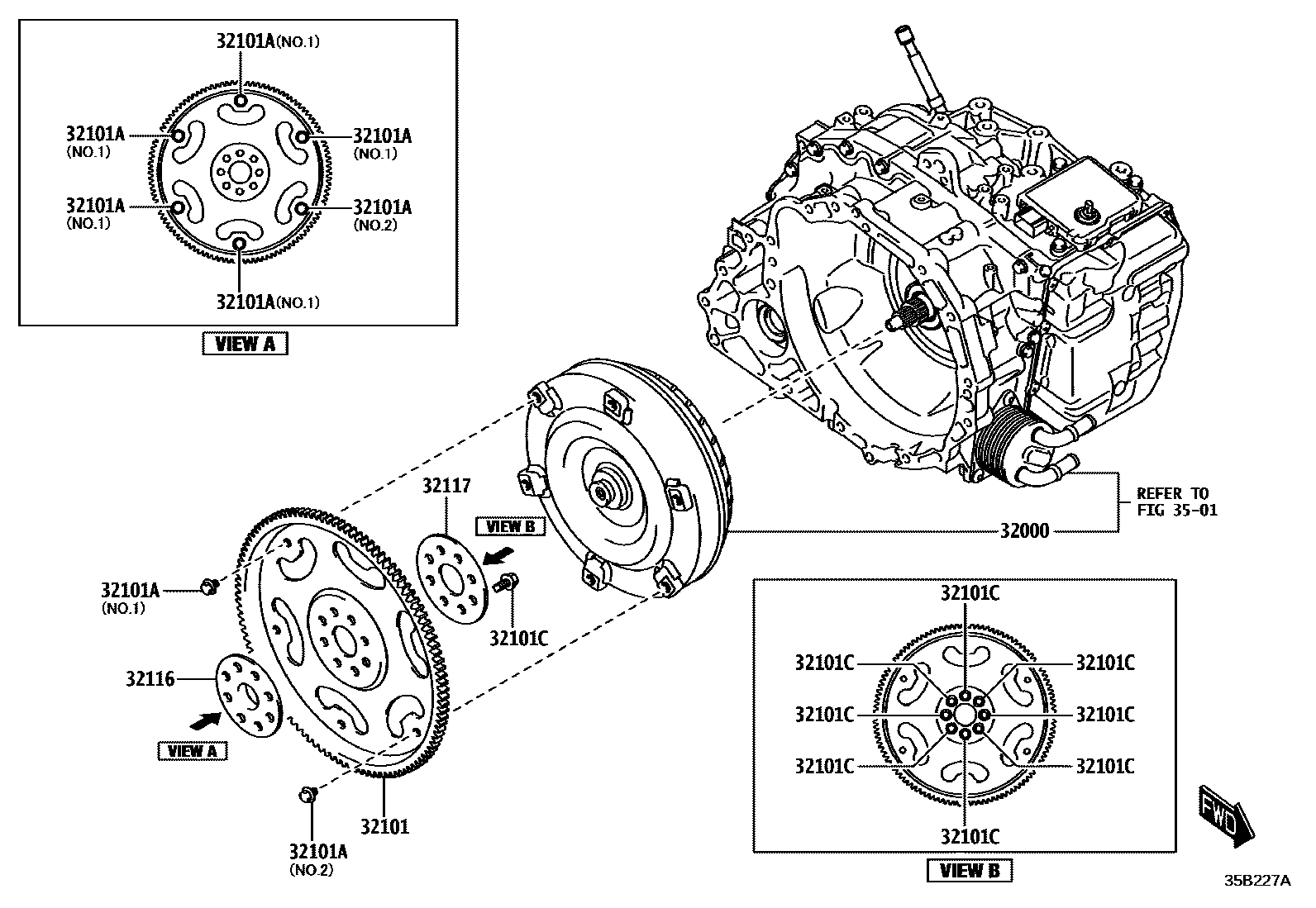

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
POS.72
POS.74
POS.81
32101GEAR SUB-ASSY, DRIVE PLATE & RING
POS.72
POS.74
POS.81
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*8-1.25PX9.5-7.0,POS.72
*8-1.25PX9.5-7.0,POS.74
*8-1.25PX9.5-7.0,POS.81
*8-1.25PX9.5-7.5,POS.72
*8-1.25PX9.5-7.5,POS.74
*8-1.25PX9.5-7.5,POS.81
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
POS.72
POS.74
POS.81
32116SPACER, DRIVE PLATE, FRONT
POS.72
POS.74
POS.81
32117SPACER, DRIVE PLATE, REAR
POS.72
POS.74
POS.81
3501
7 parts on this diagram · 2 diagrams in section
