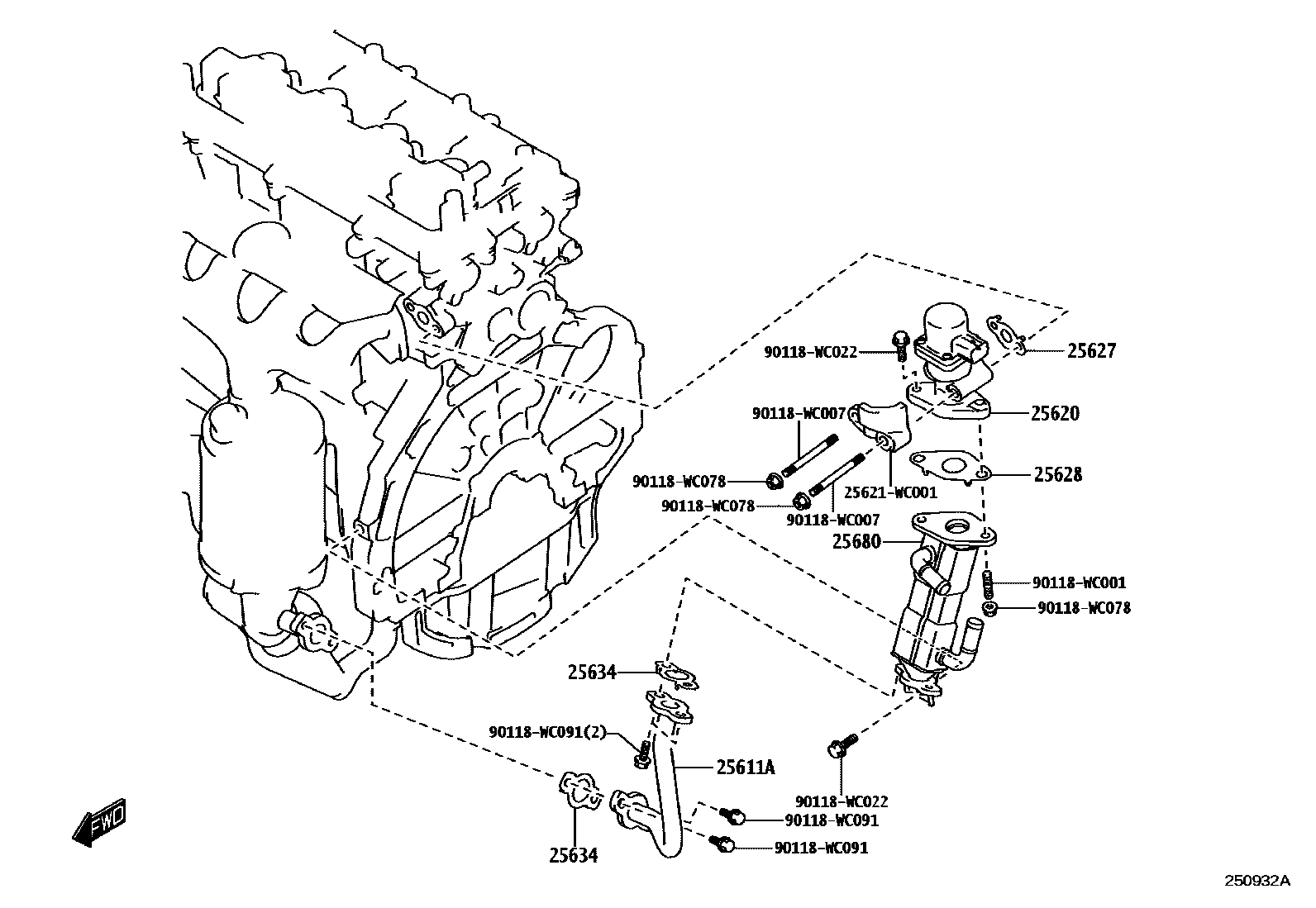

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

25611APIPE, EGR, NO.1

25620VALVE ASSY, EGR

main25620-WC001

main25620-15370

25627GASKET, EGR VALVE

main25627-WC001

main25627-F3050

25628GASKET, EGR INLET

main25628-WC002

main25628-25010

25634GASKET, EGR PIPE

main25634-WC001

main25634-15010

main25634-F3050

25680COOLER ASSY, EGR

main25601-WC002

main25680-15030

25621WC001CONNECTOR, INTAKE AIR(FOR GASKET)

main25621-WC001

90118WC001

main90118-WC001

90118WC007

main90118-WC007

90118WC022

main90118-WC022

90118WC078

main90118-WC078

90118WC091

main90118-WC091

12 parts on this diagram · 2 diagrams in section
