CRANKSHAFT & PISTON

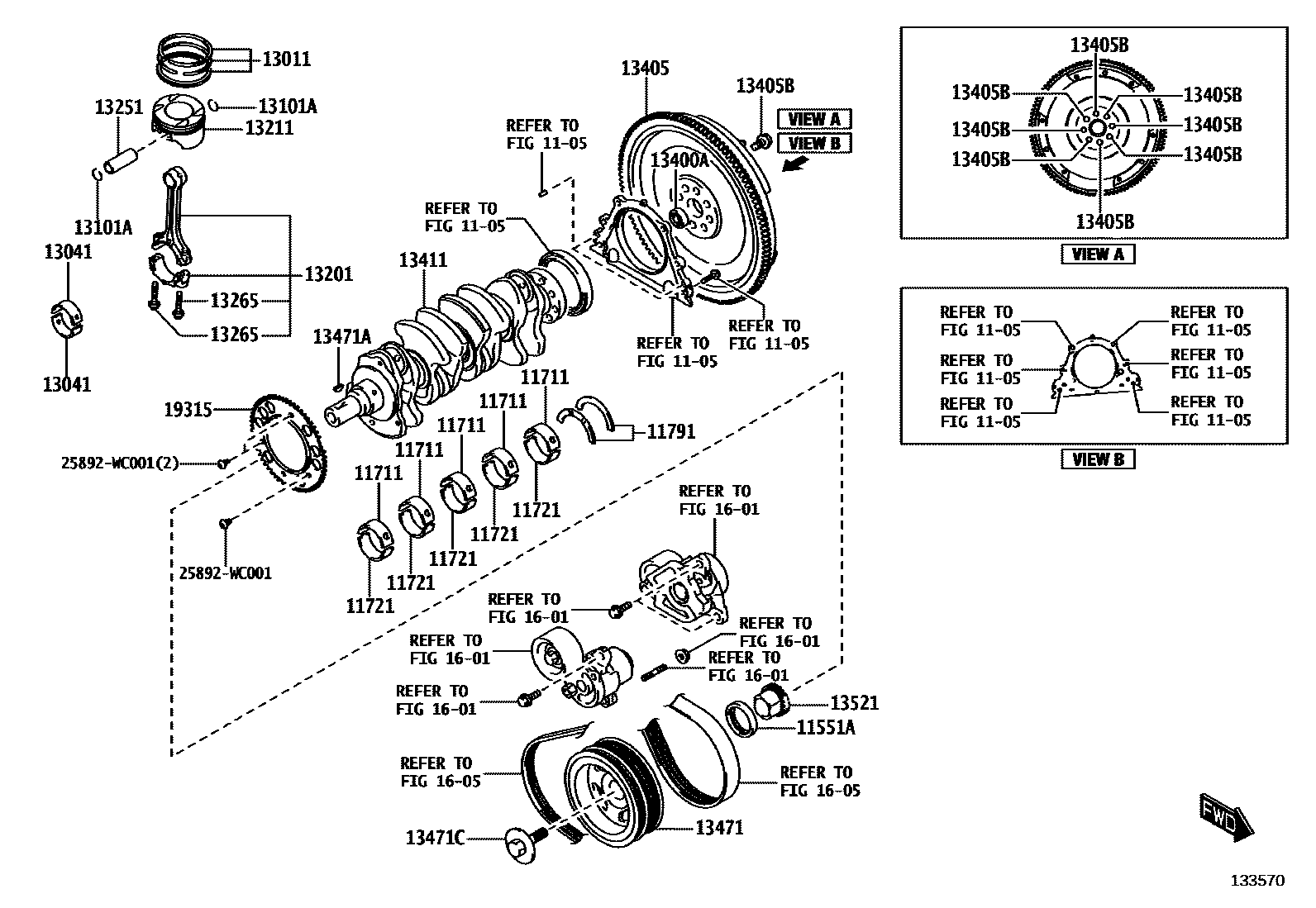

Parts diagram

1105

11551ASEAL, CRANKSHAFT OIL

11791WASHER, CRANKSHAFT THRUST, UPPER

main11792-WC002

main11791-WC008

main11791-F2050

13011RING SET, PISTON

main13011-WC005

main13011-F2060

13041BEARING, CONNECTING ROD

main13281-WC001

main13281-WC002

main13281-WC003

main13281-WC004

main13281-WC005

main13281-WC006

main13041-F2040

13101PISTON SUB-ASSY, W/PIN

main90520-19019¥70

main13101-F3030

main90118-WC227

13101ARING, HOLE SNAP(FOR PISTON PIN)

13201ROD SUB-ASSY, CONNECTING

main13201-WC006

main13201-F9090

13211PISTON

main13211-WC006

13251PIN, PISTON

main13251-WC001

13265BOLT, CONNECTING ROD

main13265-WC002

main13265-25020¥310

13400ABEARING(FOR CRANKSHAFT)

13405FLYWHEEL SUB-ASSY

main13405-WC007

main13451-F3040

main90118-WC096

main13451-15111¥16,100

main90250-08120¥140

main90105-12404¥100

13405BBOLT, FLYWHEEL SETTING

13411CRANKSHAFT

main13401-WC006

main90250-06035¥70

main13401-F3040

13471PULLEY, CRANKSHAFT

main90280-04001¥80

main13470-WC004

main13470-WC005

main13471-F3010

main90119-16020¥490

main90118-WC083

main90118-WC307

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-WC002

main13521-F3060

1601

1605

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-WC005

main19315-24010¥2,110

main19315-F2030

25892WC001

main25892-WC001

25 parts on this diagram · 3 diagrams in section
