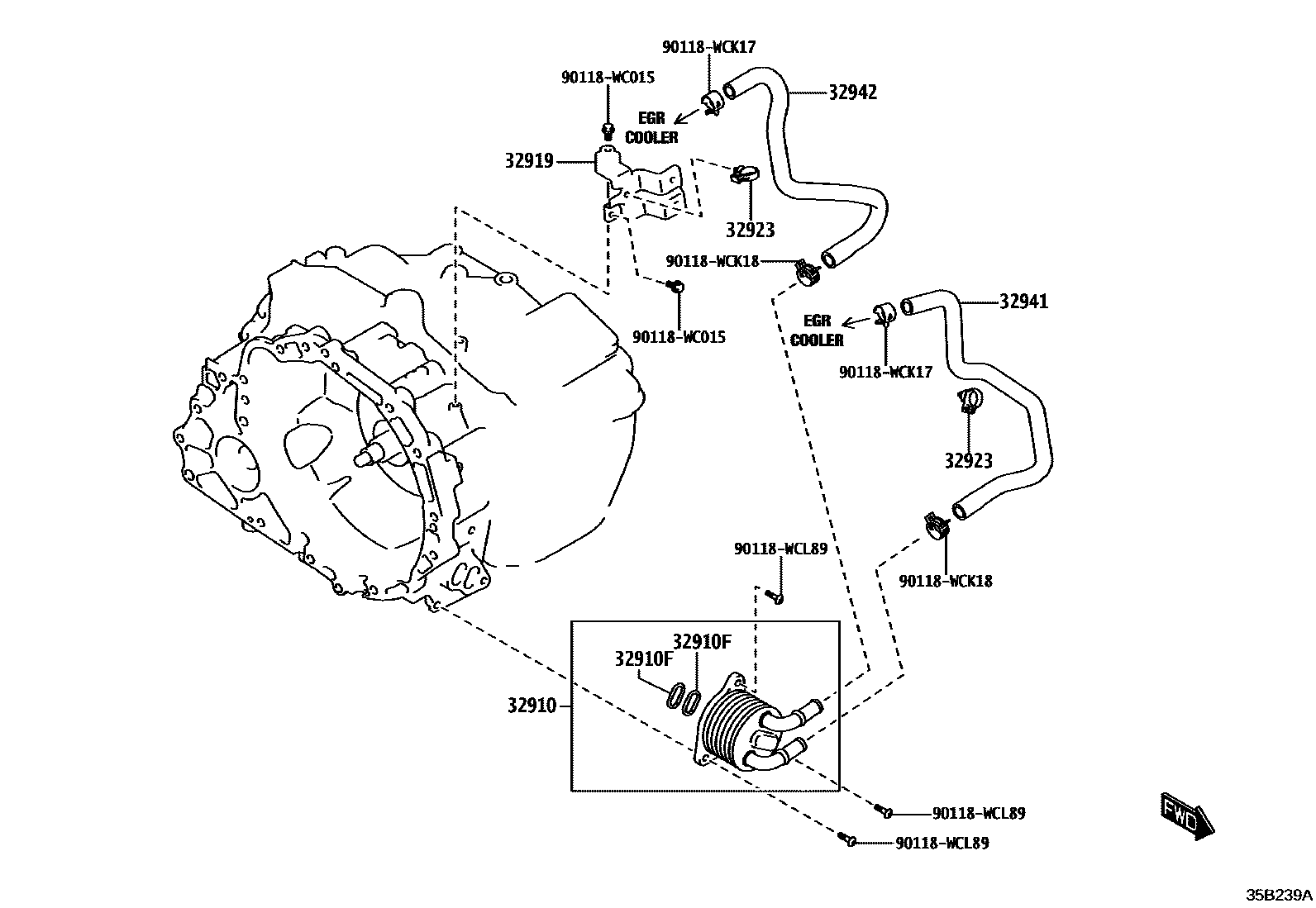

OIL COOLER & TUBE (ATM)

32910COOLER ASSY, OIL

main32910-WC001

main90118-WCL90

32910FRING, O(FOR OIL COOLER)

32919HOLDER, OIL COOLER TUBE

main32919-WC001

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-WC001

32941HOSE, OIL COOLER INLET, NO.1

main32941-WC006

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-WC006

90118WC015

main90118-WC015

90118WCK17

main90118-WCK17

90118WCK18

main90118-WCK18

90118WCL89

main90118-WCL89

10 parts on this diagram · 1 diagram in section
