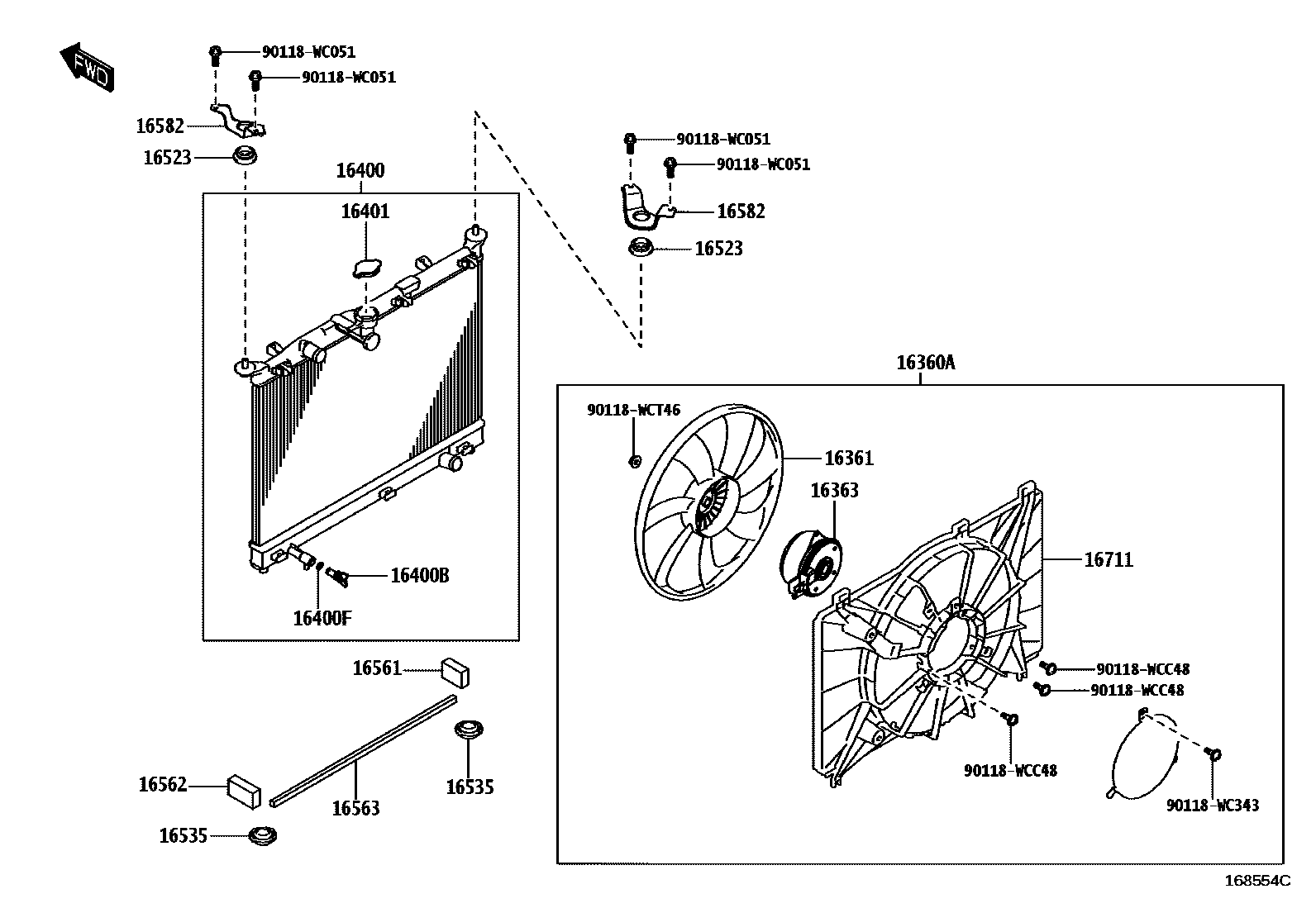

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

16360AFAN ASSY, W/MOTOR

16361FAN

main16361-WC002

16363MOTOR, COOLING FAN

main16363-WC003

16400RADIATOR ASSY

main16492-WC001

main16417-WC001

main16400-WC010

main16400-WC011

16400BPLUG, RADIATOR DRAIN COCK

16400FPACKING(FOR RADIATOR DRAIN COCK)

16401CAP SUB-ASSY, RADIATOR

main16401-WC001

16523CUSHION, SUB-RADIATOR SUPPORT

main16523-WC001

16535SUPPORT, RADIATOR, LOWER

main90118-WC349

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-WC001

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-WC001

main16562-WC002

16563SEAL, RADIATOR TO SUPPORT, NO.3

main16563-WC001

main16563-WC002

16582BRACKET, RADIATOR, NO.1

main90118-WCK51

main90118-WCK52

16711SHROUD, FAN

main16711-WC005

90118WC051

main90118-WC051

90118WC343

main90118-WC343

90118WCC48

main90118-WCC48

90118WCT46

main90118-WCT46

18 parts on this diagram · 10 diagrams in section
