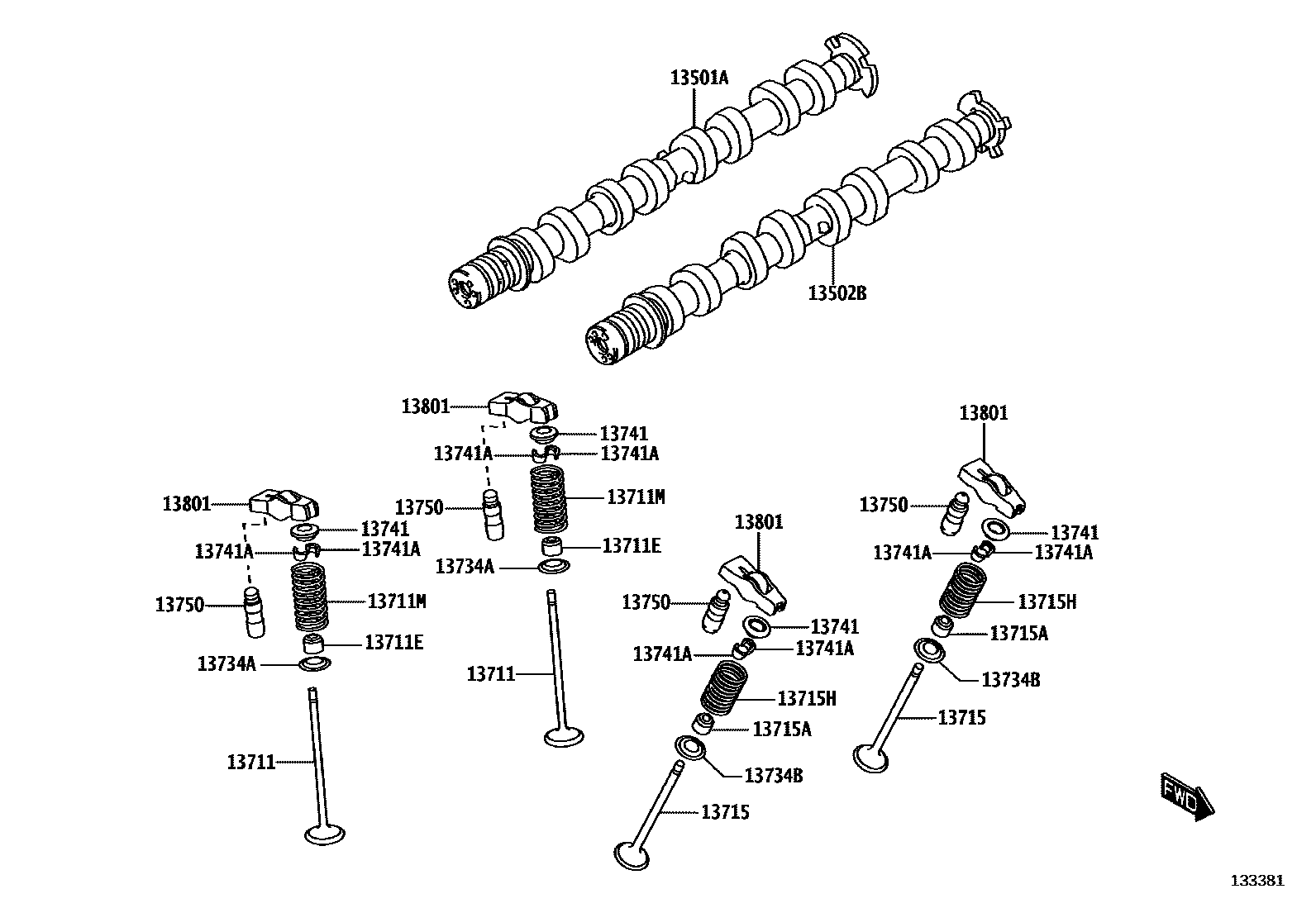

CAMSHAFT & VALVE

0001 1 0002 1 0003 1

13501ACAMSHAFT SUB-ASSY, INTAKE

13502BCAMSHAFT SUB-ASSY, EXHAUST

13711VALVE, INTAKE

main13711-WC005

main90913-T2007

main90501-30043

main13711-F2060

main90913-02101

main90118-WCG31

main90118-WCP91

13711ESEAL, INTAKE VALVE STEM OIL

13711MSPRING, COMPRESSION(FOR INTAKE VALVE)

13715VALVE, EXHAUST

main13715-WC007

main90913-T2008

main13715-WC010

main90501-30043

main13715-F2050

main90913-02112

main90118-WCG30

main90118-WCP91

13715ASEAL, EXHAUST VALVE STEM OIL

13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)

13734ASEAT, INTAKE VALVE SPRING

13734BSEAT, EXHAUST VALVE SPRING

13741RETAINER, VALVE SPRING

main13741-WC001

main13741-36010

main90913-03028

main90118-WC318

13741ALOCK, VALVE SPRING RETAINER

13750ADJUSTER ASSY, VALVE LASH

main13750-WC001

main13750-F2060

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-WC001

main13801-F2060

14 parts on this diagram · 3 diagrams in section
