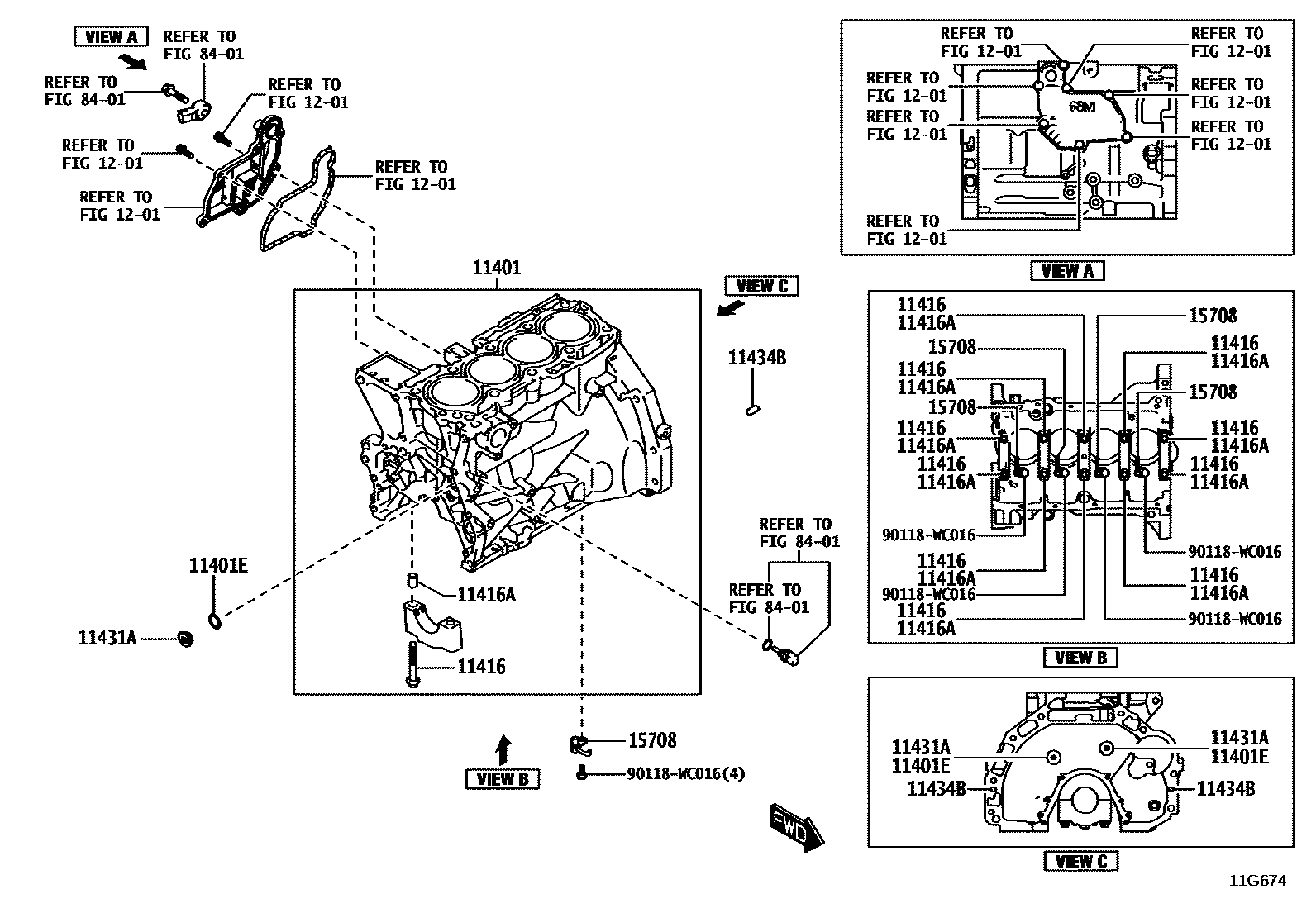

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

11401BLOCK SUB-ASSY, CYLINDER

main11410-WC006

main90311-90010

main90301-11039

main90311-T0091

main90919-05095

main11410-F9170

main90118-WC460

main90118-WC640

main90118-WCK37

11401EGASKET(FOR CYLINDER BLOCK PLUG)

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90118-WC067

main90910-02197

main90118-WC297

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

1201

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-WC001

main15708-15010

8401

90118WC016

main90118-WC016

10 parts on this diagram · 8 diagrams in section
