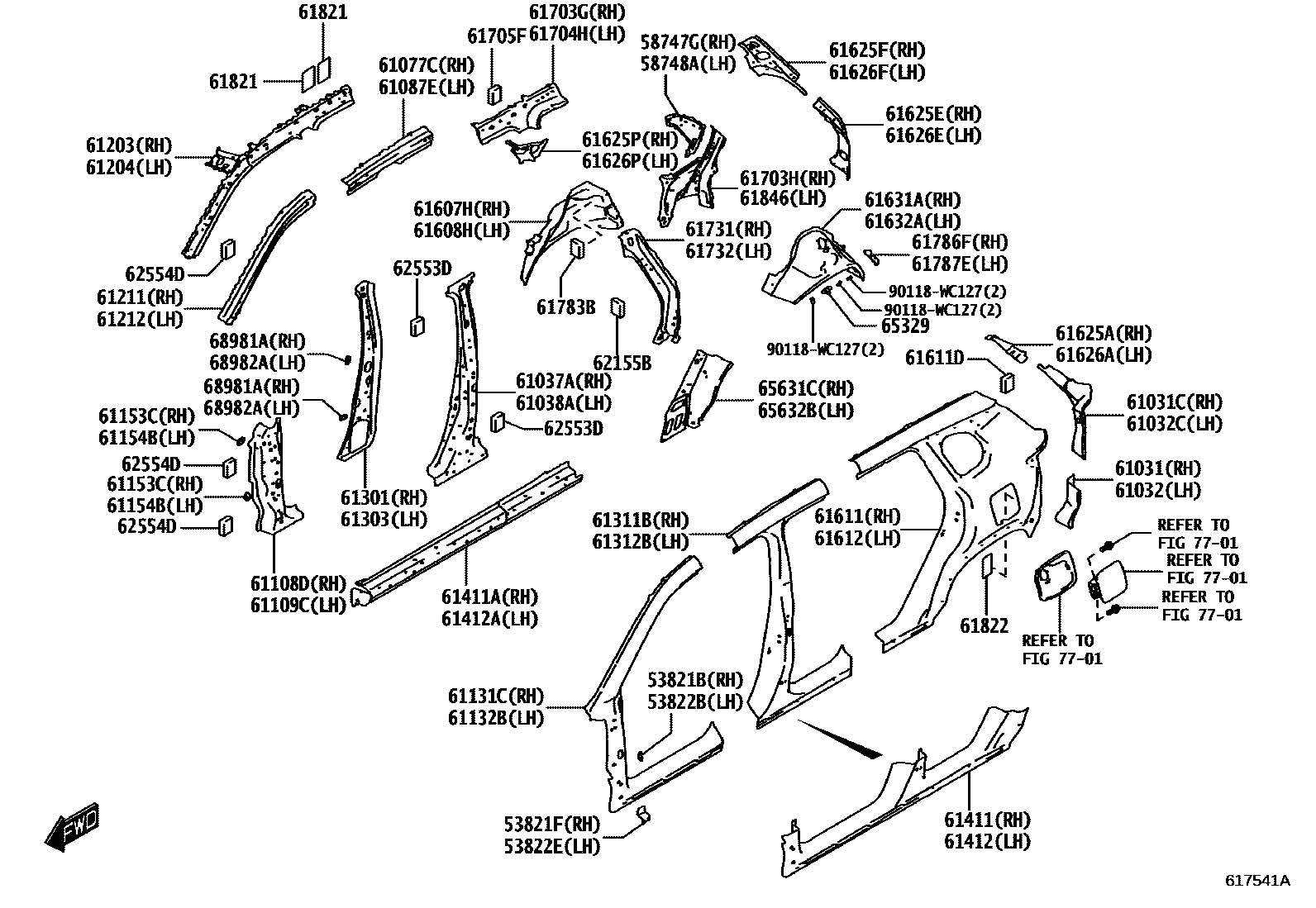

SIDE MEMBER

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

53821BBRACKET, FRONT FENDER, REAR RH

53821FBRACKET, FRONT FENDER, REAR NO.2 RH

53822BBRACKET, FRONT FENDER, REAR LH

53822EBRACKET, FRONT FENDER, REAR NO.2 LH

58747GPROTECTOR, QUARTER PANEL, REAR RH

58748APROTECTOR, QUARTER PANEL, REAR LH

61031EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH

main61621-WC006

main61613-WC007

61031CEXTENSION SUB-ASSY, QUARTER PANEL, REAR RH

61032EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH

main61614-WC003

main62622-WC006

61032CEXTENSION SUB-ASSY, QUARTER PANEL, REAR LH

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61077CRAIL SUB-ASSY, NO.1 UPPER OUTER, RH

61087ERAIL SUB-ASSY, NO.1 UPPER OUTER, LH

61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

61109CREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH

61131CPILLAR, FRONT BODY, OUTER RH

61132BPILLAR, FRONT BODY, OUTER LH

61153CRETAINER, FRONT BODY PILLAR LOWER HINGE, RH

61154BRETAINER, FRONT BODY PILLAR LOWER HINGE, LH

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-WC008

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61204-WC008

61211RAIL, ROOF SIDE, OUTER RH

main61211-WC007

61212RAIL, ROOF SIDE, OUTER LH

main61212-WC006

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61305-WC009

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61306-WC008

61311BPILLAR, CENTER BODY, OUTER RH

61312BPILLAR, CENTER BODY, OUTER LH

61411PANEL, ROCKER, OUTER RH

main61305-WC007

main61305-WC008

main61111-WC033

61411AREINFORCEMENT, ROCKER PANEL, NO.1 RH

61412PANEL, ROCKER, OUTER LH

main61306-WC007

main61112-WC033

61412AREINFORCEMENT, ROCKER PANEL, NO.1 LH

61607HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH

61608HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH

61611PANEL, QUARTER, RH

main61111-WC032

main90118-WC611

61611DPAD, QUARTER PANEL SILENCER

61612PANEL, QUARTER, LH

main61112-WC032

61625AEXTENSION SUB-ASSY, QUARTER PANEL, RH

61625EEXTENSION, QUARTER PANEL, INNER REAR RH

61625FEXTENSION, QUARTER PANEL, UPPER RH

61625PPANEL, REAR BODY REAR SIDE CORNER, RH

61626AEXTENSION SUB-ASSY, QUARTER PANEL, LH

61626EEXTENSION, QUARTER PANEL, INNER REAR LH

61626FEXTENSION, QUARTER PANEL, UPPER LH

61626PPANEL, REAR BODY REAR SIDE CORNER, LH

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

61703GPANEL SUB-ASSY, QUARTER, INNER RH

61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH

61704HPANEL SUB-ASSY, QUARTER, INNER LH

61705FPAD, ROOF SIDE, REAR

61731PANEL, ROOF SIDE, INNER UPPER RH

main61731-WC006

61732PANEL, ROOF SIDE, INNER UPPER LH

main61732-WC005

61783BPAD, REAR WHEEL OPENING EXTENSION, NO.1

61786FBRACKET, REAR BUMPER SIDE, RH

61787EBRACKET, REAR BUMPER SIDE, LH

61821SHEET, SILENCER, NO.1

main58681-WC001

61822SHEET, SILENCER, NO.2

main58682-WC001

61846PANEL, QUARTER INNER, LOWER REAR LH

main61068-WC001

main61068-WC002

main61068-WC003

62155BPAD, QUARTER PANEL

62553DPAD, PILLAR, NO.3

62554DPAD, FRONT PILLER

65329BRACKET, REAR FENDER

main65329-WC001

65631CPLATE, REAR WHEEL HOUSE, FRONT RH

65632BPLATE, REAR WHELL HOUSE, FRONT LH

68981ARETAINER, BACK DOOR STAY, RH

68982ARETAINER, BACK DOOR STAY, LH

7701

90118WC127

main90118-WC127

69 parts on this diagram · 11 diagrams in section
