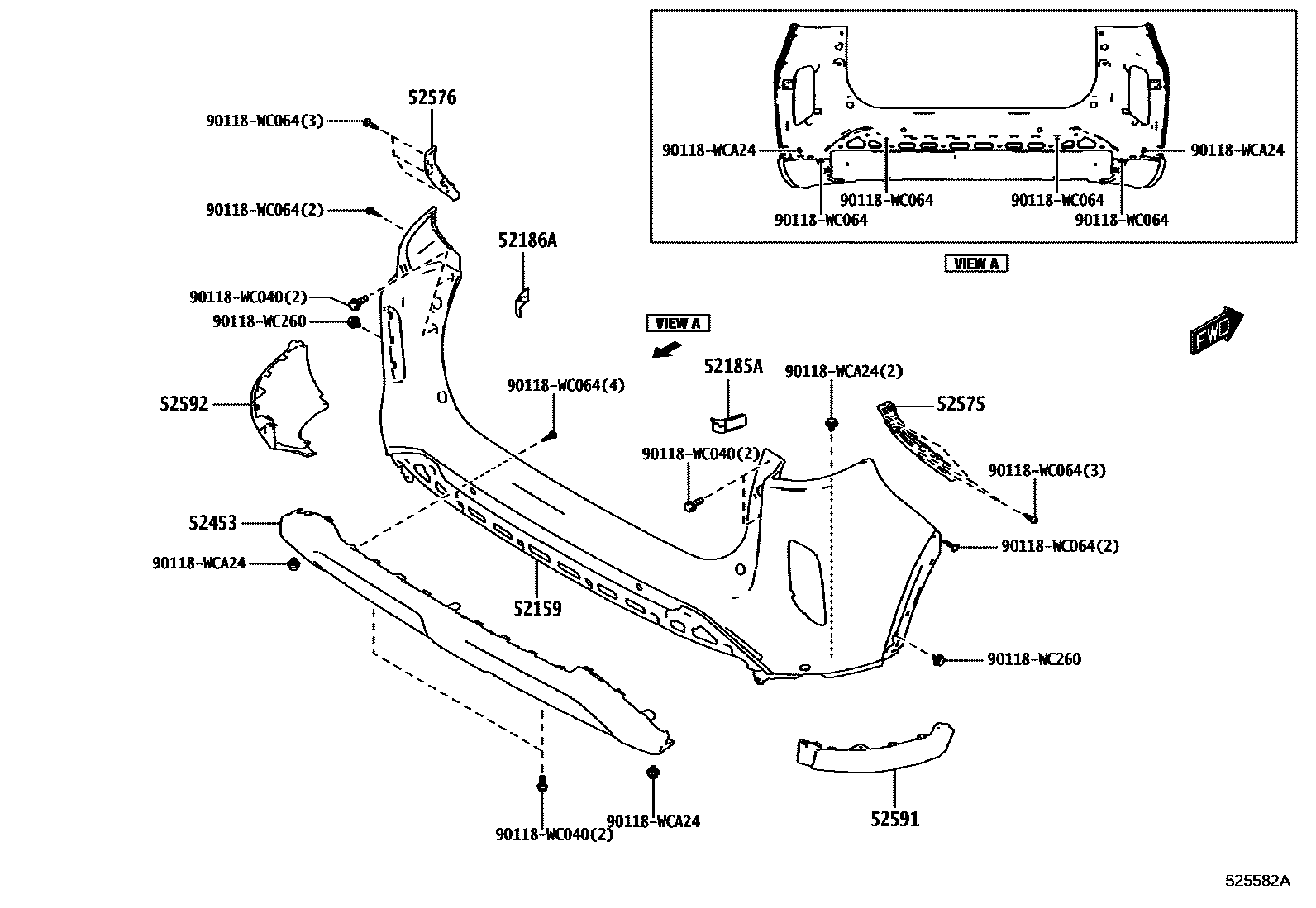

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

52159COVER, REAR BUMPER

main52159-WC013iFGB129R202208

POS.33

52185ABRACKET, REAR BUMPER SIDE, RH

main61786-WC002iFGB129R202208

POS.33

52186ABRACKET, REAR BUMPER SIDE, LH

main90118-WCL17iFGB129R202208

POS.33

52453GUARD, REAR BUMPER, CENTER

main52453-WC003iFGB129R202208

POS.33

52575RETAINER, REAR BUMPER SIDE, RH

main52575-WC007iFGB129R202208

POS.33

52576RETAINER, REAR BUMPER SIDE, LH

main52576-WC008iFGB129R202208

POS.33

52591SEAL, REAR BUMPER SIDE, RH

main52591-WC001iFGB129R202208

POS.33

52592SEAL, REAR BUMPER SIDE, LH

main52109-WC001iFGB129R202208

POS.33

90118WC040

main90118-WC040

90118WC064

main90118-WC064

90118WC260

main90118-WC260

90118WCA24

main90118-WCA24

12 parts on this diagram · 6 diagrams in section
