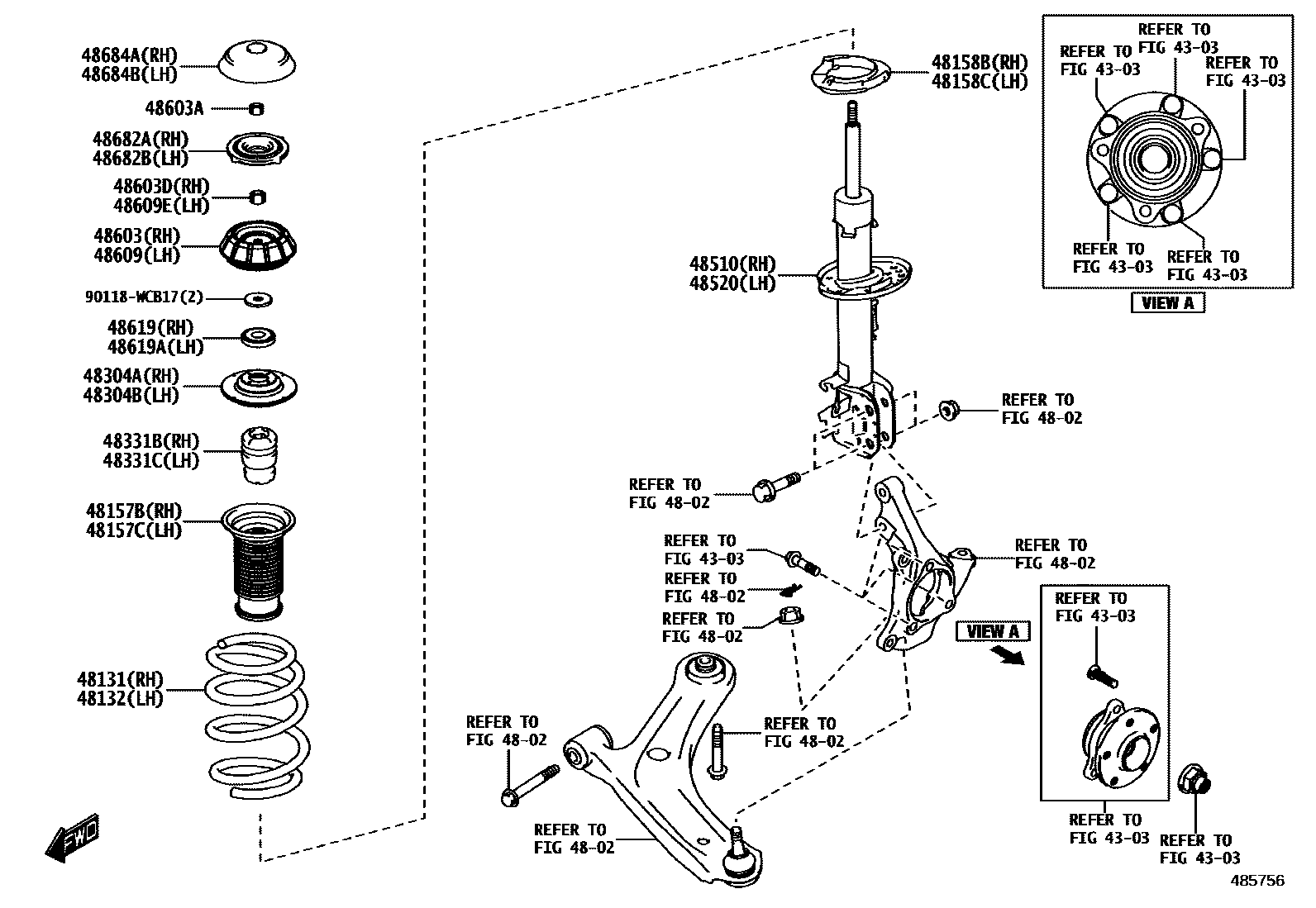

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

4303

4802

48131SPRING, FRONT COIL, RH

main48131-WC013

main48131-WC014

main48131-WC015

main48131-WC016

48132SPRING, FRONT COIL, LH

main48131-WC013

main48131-WC014

main48131-WC015

main48131-WC016

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

48304ASEAT SUB-ASSY, BUMPER, RH

48304BSEAT SUB-ASSY, BUMPER, LH

48331BBUMPER, FRONT SPRING, RH

48331CBUMPER, FRONT SPRING, LH

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-WC008

main48510-WC009

main48510-WC010

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-WC008

main48520-WC009

main48520-WC010

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-WC002

main90118-WC075

main90118-WC873

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-WC002

main90118-WC873

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

48619BEARING, STRUT MOUNTING, RH

main48619-WC001

48619ABEARING, STRUT MOUNTING, LH

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

90118WCB17

main90118-WCB17

26 parts on this diagram · 2 diagrams in section
