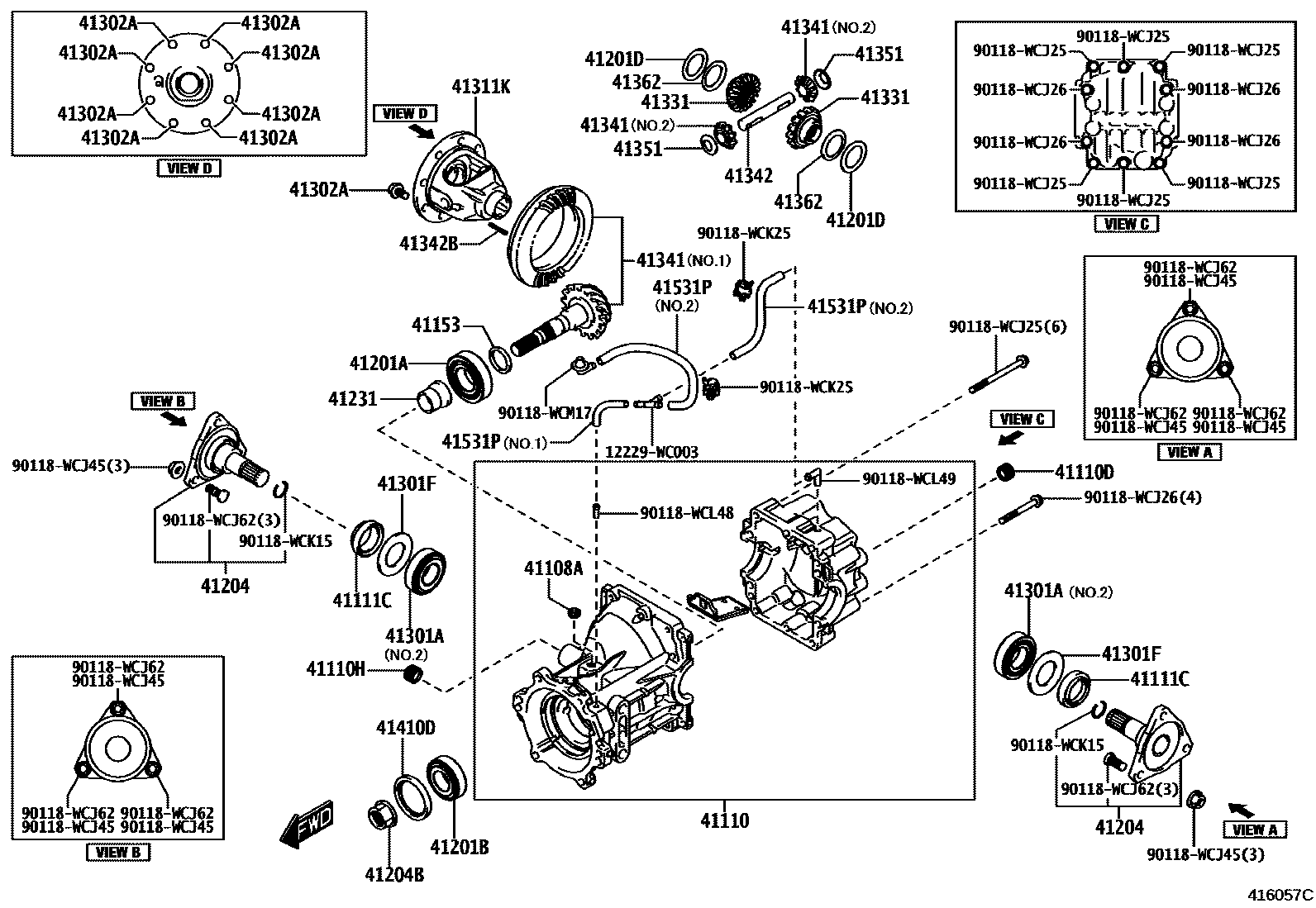

REAR AXLE HOUSING & DIFFERENTIAL
41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)
POS.33
41110CARRIER ASSY, DIFFERENTIAL, REAR
POS.33
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
POS.33
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
POS.33
41111CARRIER, REAR DIFFERENTIAL
POS.33
41111CSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
POS.33
41153SHIM, DIFFERENTIAL DRIVE PINION CAGE
T=0.60,POS.8
T=0.63,POS.8
T=0.66,POS.21
T=0.69,POS.8
T=0.72,POS.8
T=0.75,POS.8
T=0.78,POS.33
T=0.81,POS.8
T=0.84,POS.21
T=0.87,POS.8
T=0.90,POS.8
T=0.93,POS.33
T=0.96,POS.21
T=0.99,POS.33
T=1.02,POS.33
T=1.05,POS.21
T=1.08,POS.8
T=1.11,POS.33
41201ABEARING (FOR REAR DRIVE PINION REAR)
POS.33
41201BBEARING (FOR REAR DRIVE PINION FRONT)
POS.33
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.00,POS.21
T=1.10,POS.8
T=1.20,POS.21
T=0.90,POS.8
T=0.95,POS.8
T=1.05,POS.21
T=1.15,POS.21
POS.33
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
POS.33
41204BNUT (FOR REAR DRIVE PINION)
POS.33
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
POS.33
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
POS.8,NO.1
POS.8,NO.2
41301FSHIM(FOR REAR DIFFERENTIAL CASE)
POS.33,T=2.30
POS.21,T=2.35
POS.21,T=2.40
POS.21,T=2.45
POS.21,T=2.50
POS.33,T=2.55
POS.8,T=2.60
POS.8,T=2.65
POS.21,T=2.70
POS.21,T=0.45
41302CASE SUB-ASSY, REAR DIFFERENTIAL
POS.33
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
POS.33
41311KCASE, REAR DIFFERENTIAL
POS.33
41331GEAR, REAR DIFFERENTIAL SIDE
POS.33
41341PINION, REAR DIFFERENTIAL
POS.8,NO.1
POS.8,NO.2
41342SHAFT, REAR DIFFERENTIAL PINION
POS.33
41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)
POS.33
41351WASHER, REAR DIFFERENTIAL PINION THRUST
POS.33
41362WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2
T=0.90,POS.8
41410DSEAL, OIL DIAPHRAGM
POS.33
41531PHOSE, REAR DIFFERENTIAL VACUUM
POS.8,NO.1
POS.33
12229WC003PIPE, VENTILATION
main12229-WC003
90118WCJ25
main90118-WCJ25
90118WCJ26
main90118-WCJ26
90118WCJ45
main90118-WCJ45
90118WCJ62
main90118-WCJ62
90118WCK15
main90118-WCK15
90118WCK25
main90118-WCK25
90118WCL48
main90118-WCL48
90118WCL49
main90118-WCL49
90118WCM17
main90118-WCM17
36 parts on this diagram · 3 diagrams in section
