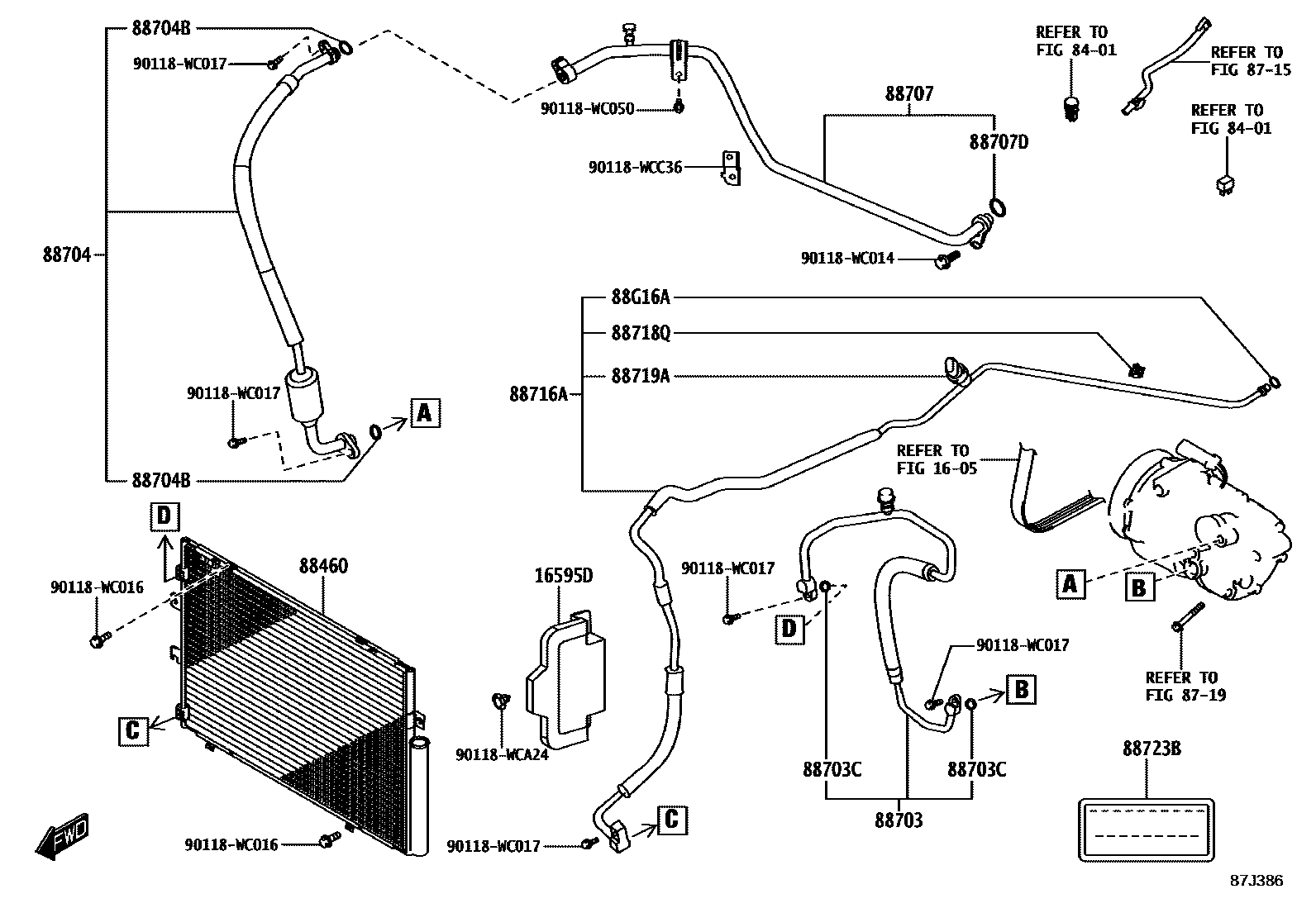

HEATING & AIR CONDITIONING - COOLER PIPING

1605

16595DGUIDE, RADIATOR AIR, NO.1 LH

main88463-WC001iK15B..K15B..5F..H202010

POS.6

8401

8715

8719

88460CONDENSER ASSY, COOLER

main88460-WC003iK15B..5F..M202010

POS.6

88703HOSE SUB-ASSY, DISCHARGE

main88711-WC002iK15B..5F..M202010

POS.6

88703CRING, O(FOR DISCHARGE HOSE)

main90118-WC634×2iK15B..5F..M202010

ID=10.8,OD=13.2,POS.8

88704HOSE SUB-ASSY, SUCTION

main88704-WC005iK15B..5F..M202010

POS.6

88704BRING, O(FOR SUCTION HOSE)

main90118-WC635×2iK15B..5F..M202010

ID=13.4,OD=15.8,POS.8

88707PIPE SUB-ASSY, SUCTION

main88704-WC006iK15B..5F..M202010

POS.6

88707DRING, O(FOR SUCTION TUBE)

main90118-WC635iK15B..5F..M202010

ID=13.4,OD=15.8,POS.8

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88706-WC002iK15B..5F..M202010

POS.6

88718QCLAMP, PIPING

main88718-WC002×2iK15B..5F..M202010

POS.6

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-WC001iK15B..5F..M202010

POS.6

88723BLABEL, COOLER SERVICE CAUTION

main88723-WC004iK15B..5F..M202010

POS.6

88G16ARING, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)

main90118-WC633×2iK15B..5F..M202010

ID=6.7,OD=8.5,POS.8

90118WC014

main90118-WC014

90118WC016

main90118-WC016

90118WC017

main90118-WC017

90118WC050

main90118-WC050

90118WCA24

main90118-WCA24

90118WCC36

main90118-WCC36

23 parts on this diagram · 1 diagram in section
