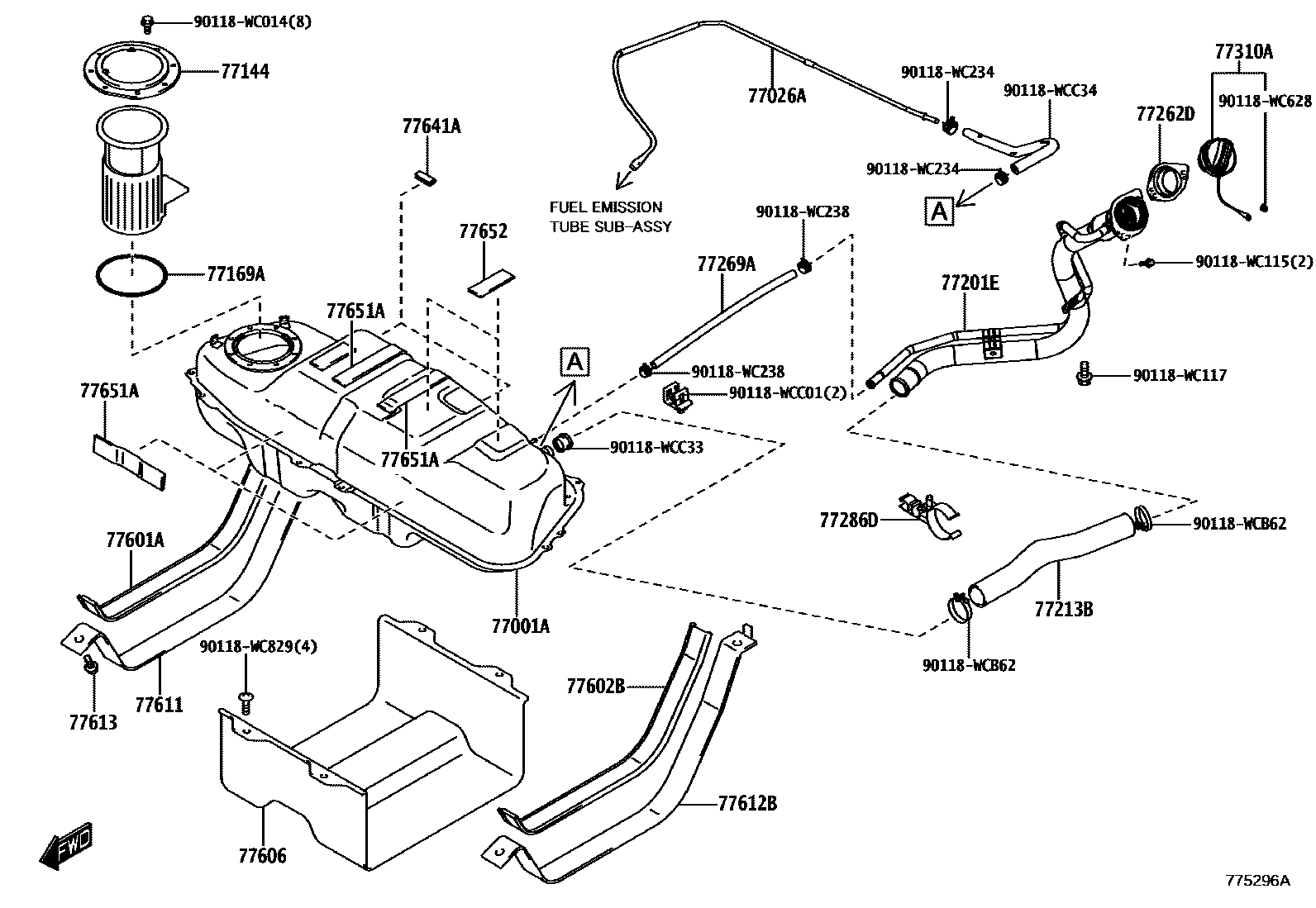

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

77001ATANK SUB-ASSY, FUEL

main77001-WC007iK15B..4FC..H202010

POS.2

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-WC001iK15B..4FC..H202010

POS.2

77144RETAINER, FUEL PUMP GAUGE

main77144-WC002iK15B..4FC..H202010

POS.2

77169AGASKET, FUEL SUCTION TUBE SET

main77169-WC002iK15B..4FC..H202010

POS.2

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-WC003iK15B..4FC..H202010

POS.2

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-WC002iK15B..4FC..H202010

POS.2

77262DGASKET, FUEL FILLER PIPE

main77316-WC001iK15B..4FC..H202010

POS.2

77269AHOSE, FUEL TANK BREATHER

main90118-WCA14iK15B..4FC..H202010

POS.2

77286DCLAMP, FUEL TUBE, NO.2

main77286-WC002iK15B..4FC..H202010

POS.2

77310ACAP ASSY, FUEL TANK

main77300-WC001iK15B..4FC..H202010

POS.2

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77651-WC004iK15B..4FC..H202010

POS.2

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77651-WC003iK15B..4FC..H202010

POS.2

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-WC002iK15B..4FC..H202010

POS.2

77611BAND, FUEL TANK

main77601-WC002iK15B..4FC..H202010

POS.2

77612BBAND, FUEL TANK, NO.2

main77602-WC001iK15B..4FC..H202010

POS.2

77613BOLT, FUEL TANK BAND SET

main90118-WC860iK15B..4FC..H202010

POS.2

77641APROTECTOR, FUEL TANK, NO.1

main77641-WC001iK15B..4FC..H202010

POS.2

77651ACUSHION, FUEL TANK, NO.1

main77651-WC005iK15B..4FC..H202010

POS.2

77652CUSHION, FUEL TANK, NO.1

main77652-WC001iK15B..4FC..H202010

POS.2

90118WC014

main90118-WC014

90118WC115

main90118-WC115

90118WC117

main90118-WC117

90118WC234

main90118-WC234

90118WC238

main90118-WC238

90118WC628

main90118-WC628

90118WC829

main90118-WC829

90118WCB62

main90118-WCB62

90118WCC01

main90118-WCC01

90118WCC33

main90118-WCC33

90118WCC34

main90118-WCC34

30 parts on this diagram · 4 diagrams in section
