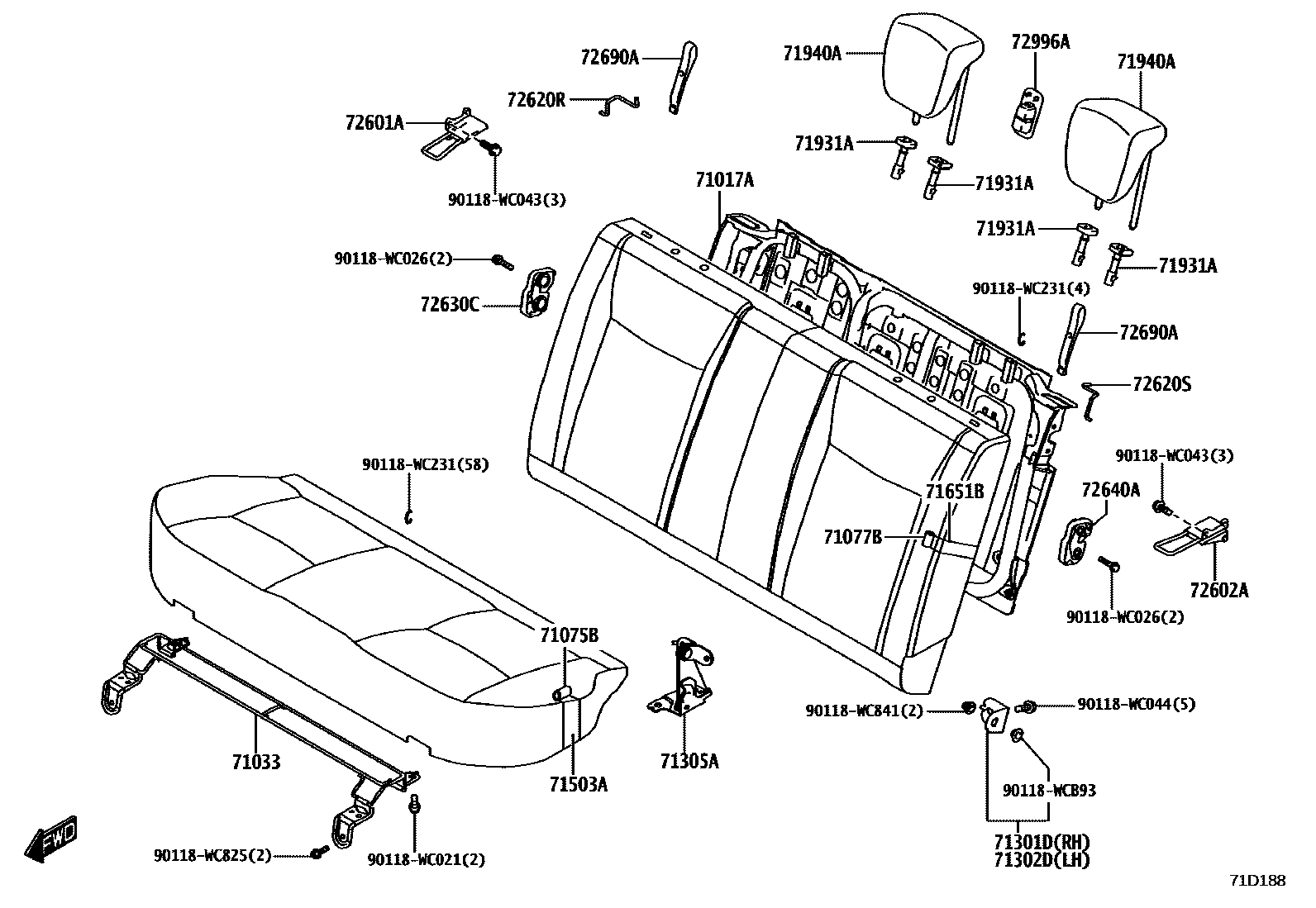

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
POS.7
71017AFRAME SUB-ASSY, REAR SEATBACK
POS.2
71033LEG SUB-ASSY, REAR SEAT CUSHION
POS.2
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
POS.2
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
POS.2
71301DHINGE SUB-ASSY, REAR SEAT, RH
POS.7
71302DHINGE SUB-ASSY, REAR SEAT, LH
POS.7
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
POS.7
71503APAD SUB-ASSY, REAR SEAT CUSHION
POS.2
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
POS.2
71931ASUPPORT, REAR SEAT HEADREST
W(LOCK),POS.1
W/O(LOCK),POS.2
71940AHEADREST ASSY, REAR SEAT
POS.2
POS.7
72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH
POS.7
POS.2
72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH
POS.7
72620RCABLE ASSY, REAR NO.1 SEAT LOCK(FOR RH SEAT)
POS.7
72620SCABLE ASSY, REAR NO.1 SEAT LOCK(FOR LH SEAT)
POS.7
72630CLOCK ASSY, REAR SEATBACK, RH
POS.7
72640ALOCK ASSY, REAR SEATBACK, LH
POS.7
72690ASTRAP ASSY, REAR SEAT LOCK RELEASE
POS.7
72996ACOVER, REAR SEATBACK
POS.7
90118WC021
main90118-WC021
90118WC026
main90118-WC026
90118WC043
main90118-WC043
90118WC044
main90118-WC044
90118WC231
main90118-WC231
90118WC825
main90118-WC825
90118WC841
main90118-WC841
90118WCB93
main90118-WCB93
28 parts on this diagram · 2 diagrams in section
