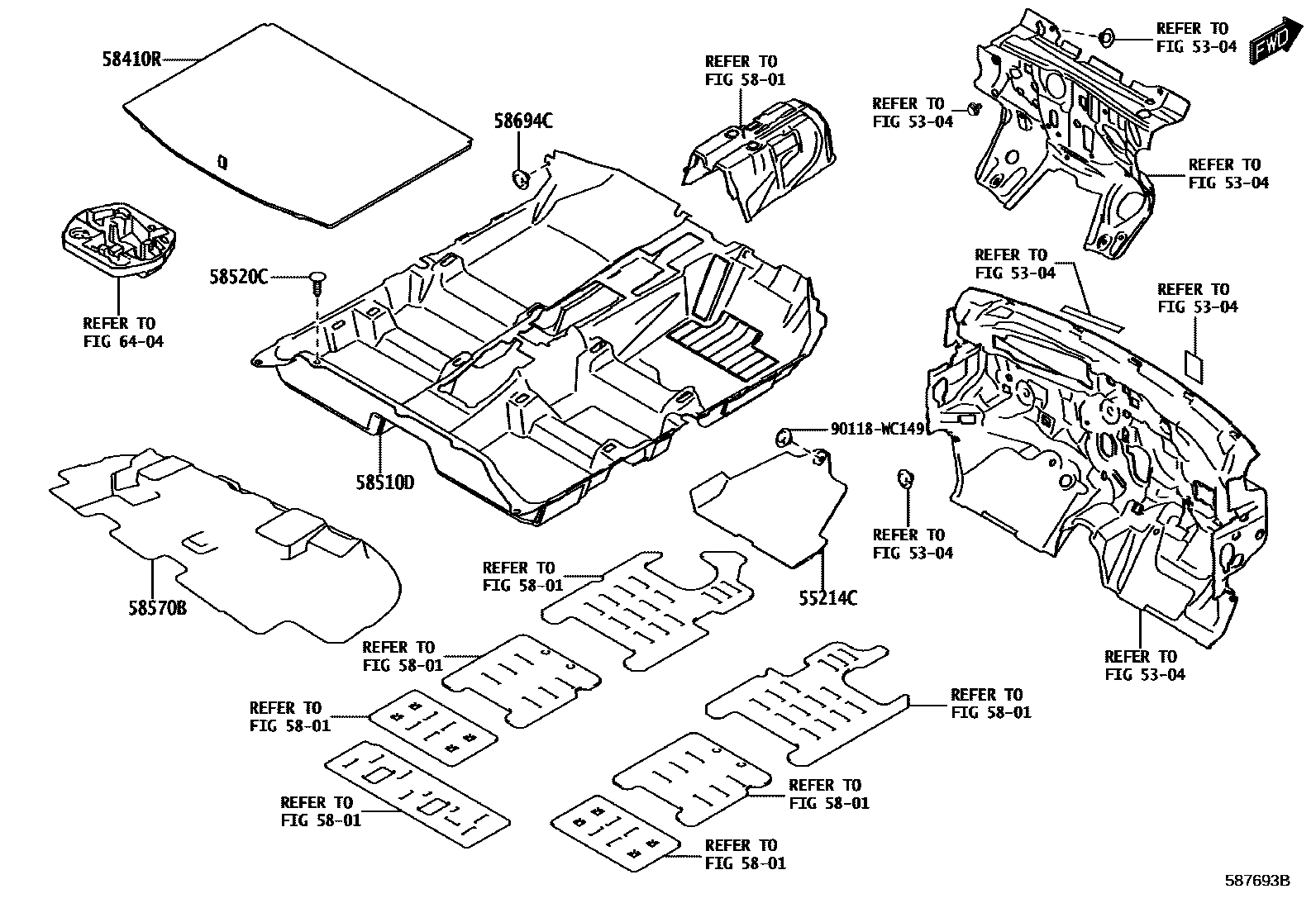

MAT & CARPET

0001 1 0002 1

5304

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-WC002iK15B..5F..P202010

POS.6

5801

58410RBOARD ASSY, DECK

main58410-WC001iK15B..5F..P202010

POS.6

58510DCARPET ASSY, FLOOR, FRONT

main58510-WC031iK15B..5F..M202010

POS.1

main58510-WC032iK15B..5F..H202010

POS.7

main58510-WC033iK15B..4FC..M202010

POS.2

main58510-WC034iK15B..4FC..H202010

POS.6

58520CCLIP(FOR FRONT FLOOR CARPET)

main90118-WCB83iK15B..5F..P202010

POS.6

58570BMAT ASSY, REAR FLOOR

main58570-WC003iK15B..5F..P202010

POS.6

58694CGROMMET(FOR MAT SET PLATE)

main90118-WC149iK15B..5F..P202010

POS.6

6404

90118WC149

main90118-WC149

10 parts on this diagram · 2 diagrams in section
