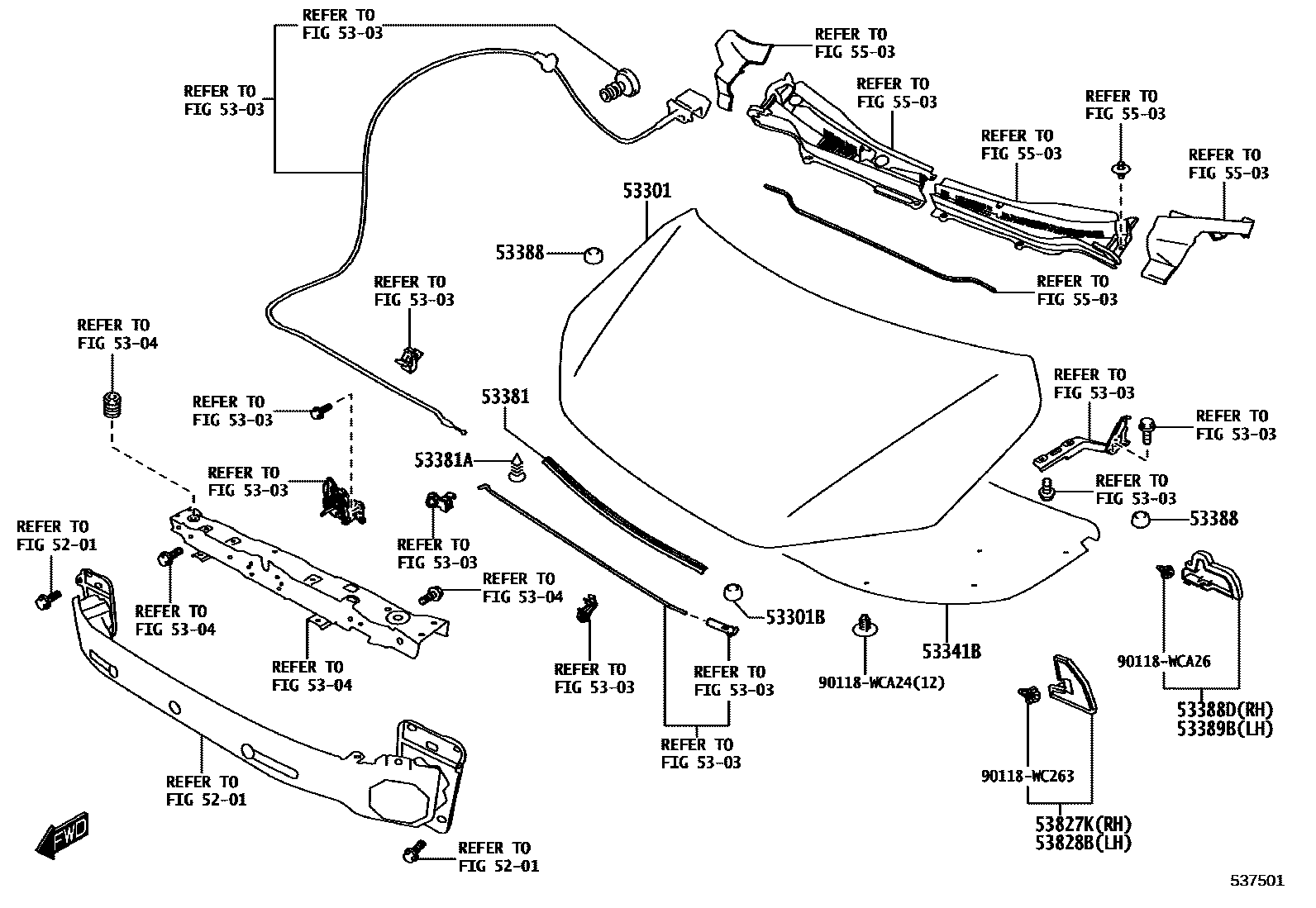

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

5201

5303

5304

53301HOOD SUB-ASSY

main53301-WC003iK15B..5F..P202010

POS.8

53301BCUSHION, HOOD BUMPER

main90118-WCA12×2iK15B..5F..P202010

POS.8

53341BINSULATOR, HOOD

main53341-WC002iK15B..5F..P202010

POS.8

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-WC002iK15B..5F..P202010

POS.8

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90118-WCA23×7iK15B..5F..P202010

POS.8

53388CUSHION, HOOD, REAR

main90118-WC222×3iK15B..5F..P202010

POS.8

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-WC001iK15B..5F..P202010

POS.8

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-WC001iK15B..5F..P202010

POS.8

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53828-WC002iK15B..5F..P202010

POS.8

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-WC003iK15B..5F..P202010

POS.8

5503

90118WC263

main90118-WC263

90118WCA24

main90118-WCA24

90118WCA26

main90118-WCA26

17 parts on this diagram · 3 diagrams in section
