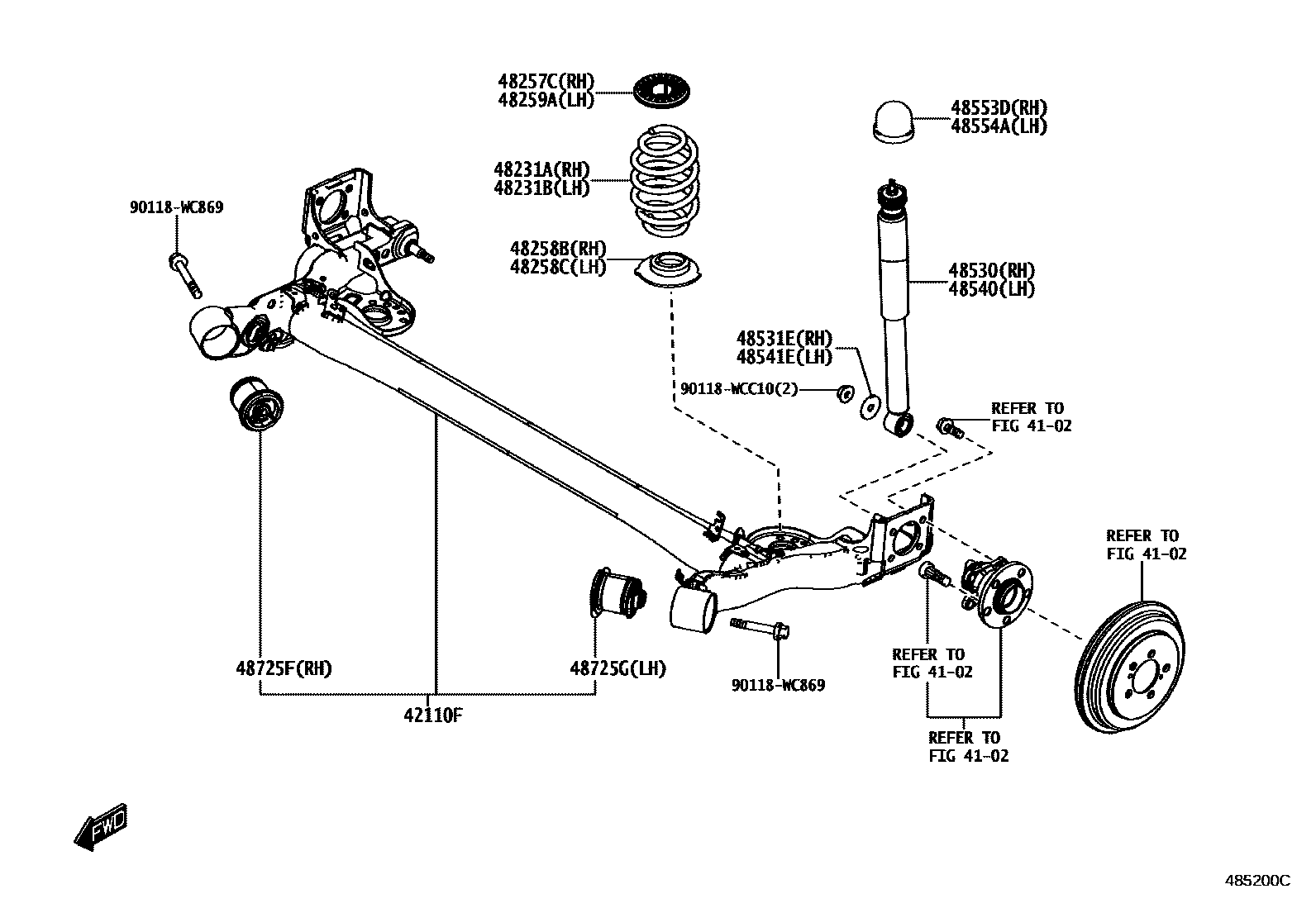

REAR SPRING & SHOCK ABSORBER

4102

42110FBEAM ASSY, REAR AXLE

main42101-WC011iK15B..5F..H202010

POS.4

48231ASPRING, COIL, REAR RH

main48231-WC018iK15B..5F..H202010

POS.4

48231BSPRING, COIL, REAR LH

main48231-WC018iK15B..5F..H202010

POS.4

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-WC002iK15B..5F..H202010

POS.4

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-WC002iK15B..5F..H202010

POS.4

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-WC002iK15B..5F..H202010

POS.4

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-WC002iK15B..5F..H202010

POS.4

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-WC003iK15B..5F..H202010

POS.4

48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

main90118-WC881iK15B..5F..H202010

POS.4

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-WC003iK15B..5F..H202010

POS.4

48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

main90118-WC881iK15B..5F..H202010

POS.4

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-WC002iK15B..5F..H202010

POS.4

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-WC002iK15B..5F..H202010

POS.4

48725FBUSH, REAR AXLE CARRIER, RH

main48725-WC001iK15B..5F..H202010

POS.4

48725GBUSH, REAR AXLE CARRIER, LH

main48725-WC001iK15B..5F..H202010

POS.4

90118WC869

main90118-WC869

90118WCC10

main90118-WCC10

18 parts on this diagram · 1 diagram in section
