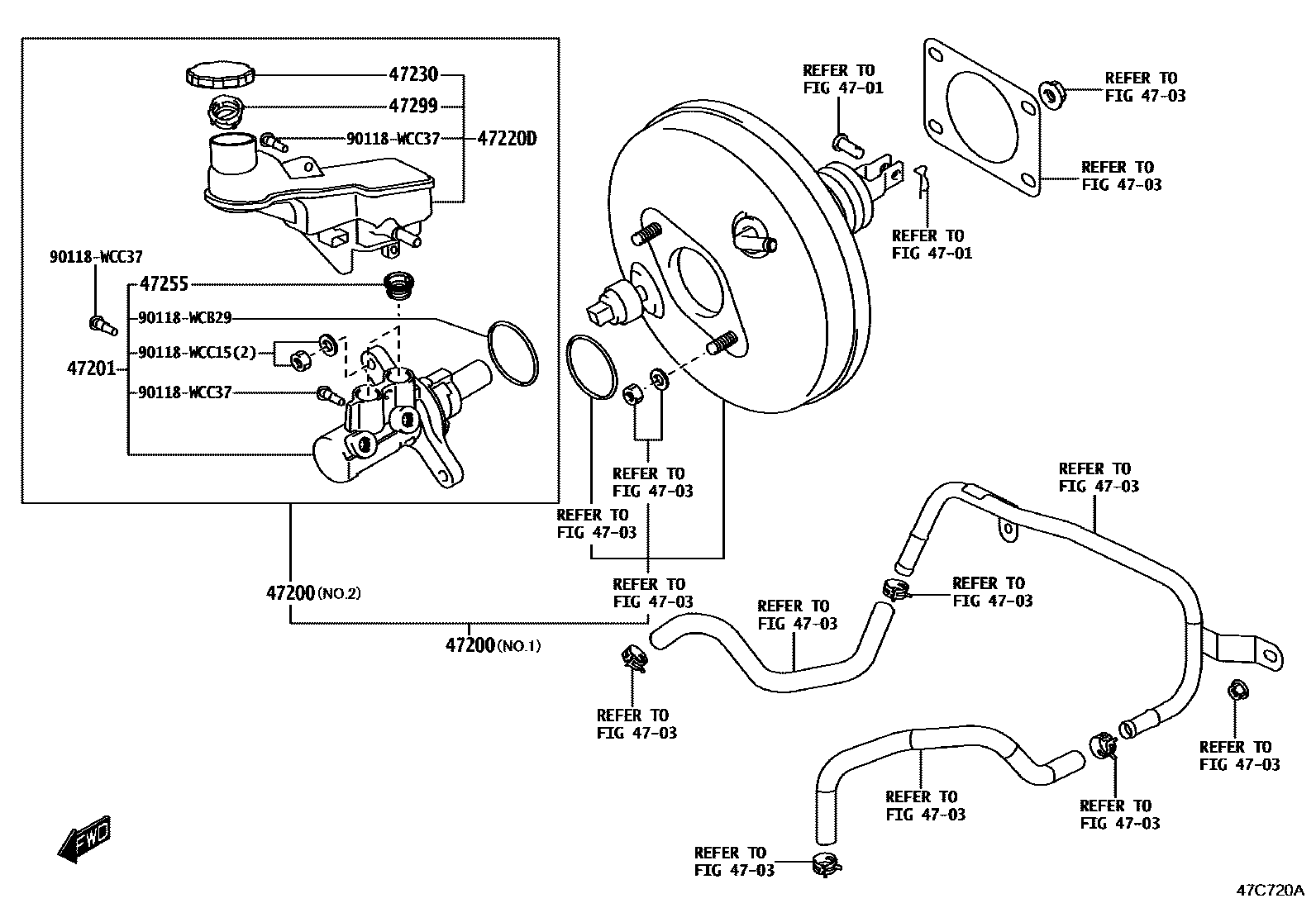

BRAKE MASTER CYLINDER

0001 1 0002 1

4701

4703

47200CYLINDER ASSY, BRAKE MASTER

main47200-WC001iK15B..4FC..M202010

POS.6,NO.1

main47200-WC002iK15B..5F..H202010

POS.8,NO.1

main47201-WC006iK15B..5F..H202010

POS.8,NO.2

main47201-WC007iK15B..4FC..M202010

POS.2,NO.2

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47211-WC001iK15B..5F..H202010

POS.1

main47211-WC002iK15B..4FC..M202010

POS.2

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-WC006iK15B..5F..H202010

POS.1

main47220-WC007iK15B..4FC..M202010

POS.2

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-WC002iK15B..5F..P202010

POS.1

47255GROMMET, MASTER CYLINDER RESERVOIR

main90118-WCB28iK15B..5F..P202010

POS.1

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-WC002iK15B..5F..P202010

POS.1

90118WCB29

main90118-WCB29

90118WCC15

main90118-WCC15

90118WCC37

main90118-WCC37

11 parts on this diagram · 2 diagrams in section
