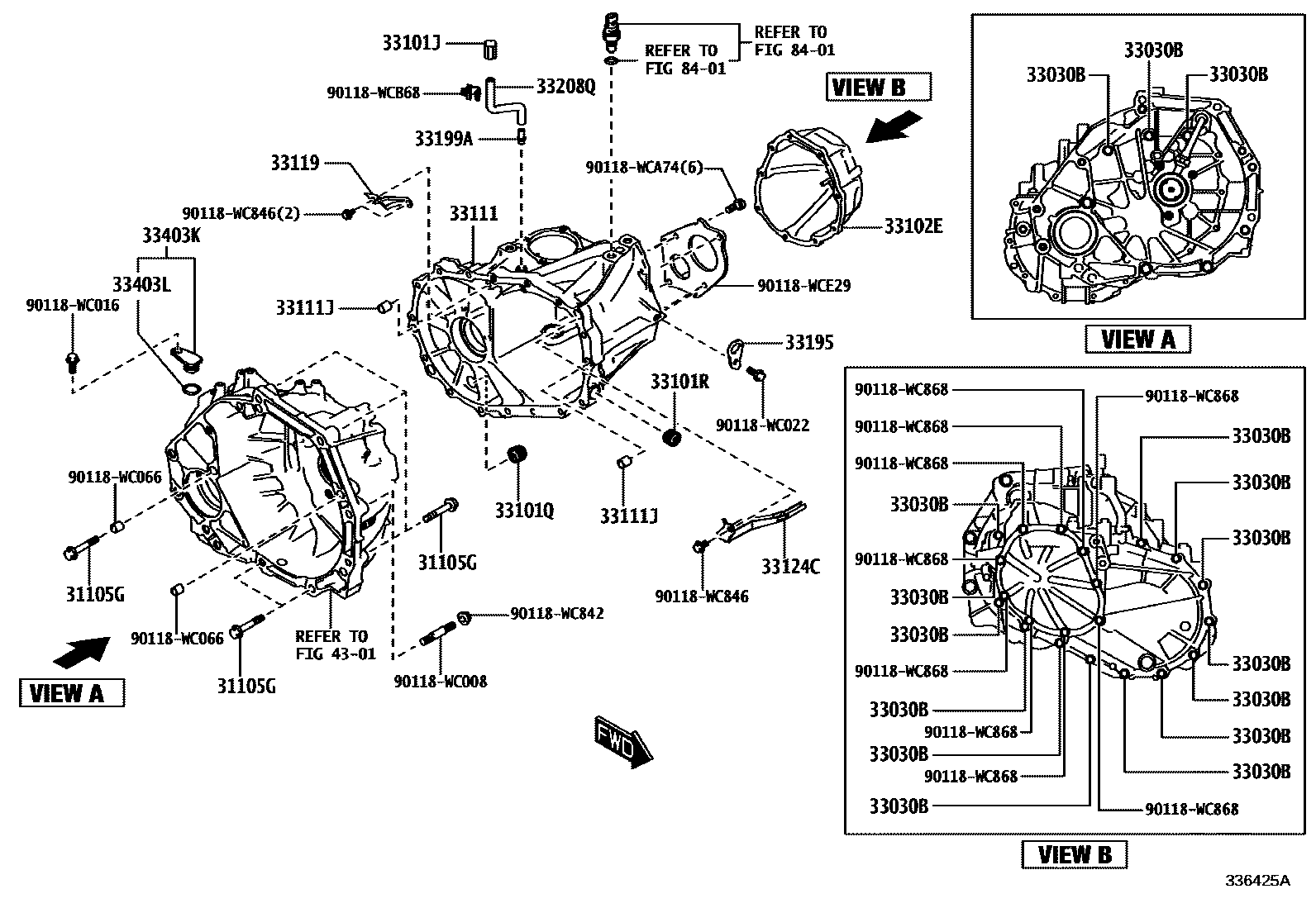

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90118-WC658iK15B..5F..M202010

POS.7

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90118-WC027iK15B..5F..M202010

POS.7

33101JPLUG, BREATHER

main90118-WC424iK15B..5F..M202010

POS.7

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90118-WCU53iK15B..5F..M202010

POS.7

33101RPLUG, NO.2(FOR TRANSMISSION CASE)

main90118-WCU36iK15B..5F..M202010

POS.7

33102ECOVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-WC002iK15B..5F..M202010

POS.7

33111CASE, MANUAL TRANSMISSION

main33111-WC015iK15B..5F..M202010

POS.7

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90118-WC066iK15B..5F..M202010

POS.7

33119PLATE, STIFFENER, LH(MTM)

main33199-WC002iK15B..5F..M202010

POS.7

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-WC004iK15B..5F..M202010

POS.7

33195HANGER, TRANSMISSION CASE, NO.1

main33195-WC003iK15B..5F..M202010

POS.7

33199APROTECTOR, BREATHER

main90118-WC403iK15B..5F..M202010

POS.7

33208QHOSE, BREATHER

main90118-WCA76iK15B..5F..M202010

POS.7

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-WC002iK15B..5F..M202010

POS.7

33403LRING, O

main90118-WC214iK15B..5F..M202010

POS.7

4301

8401

90118WC008

main90118-WC008

90118WC016

main90118-WC016

90118WC022

main90118-WC022

90118WC066

main90118-WC066

90118WC842

main90118-WC842

90118WC846

main90118-WC846

90118WC868

main90118-WC868

90118WCA74

main90118-WCA74

90118WCB68

main90118-WCB68

90118WCE29

main90118-WCE29

27 parts on this diagram · 1 diagram in section
