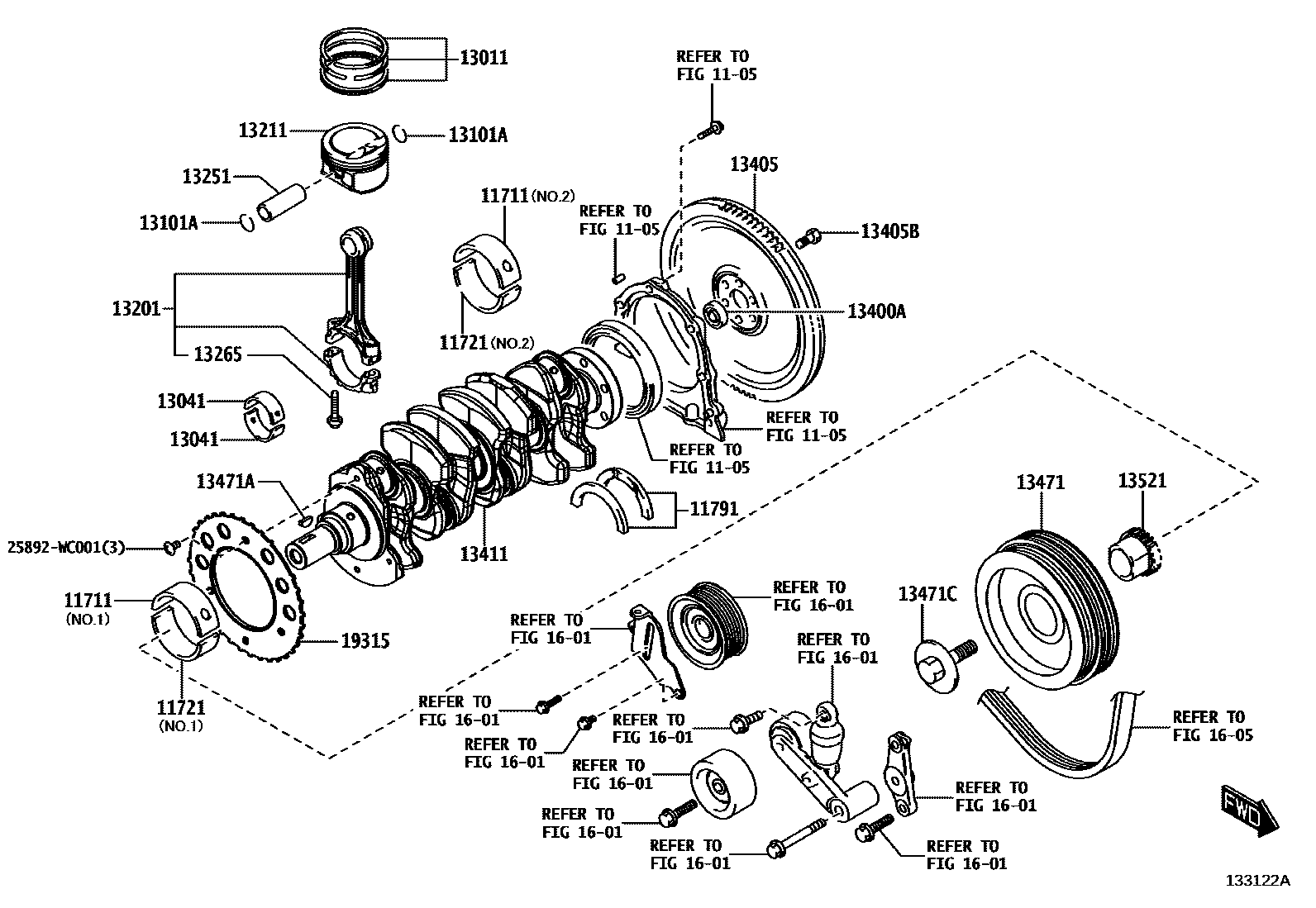

CRANKSHAFT & PISTON
1105
11711BEARING, CRANKSHAFT
POS.7,NO.1,RED/PINK
POS.7,NO.1,PINK
POS.8,NO.1,RED/PURPLE
POS.1,NO.1,PURPLE
POS.2,NO.1,RED/BROWN
POS.2,NO.1,BROWN
POS.2,NO.1,RED/GREEN
POS.4,NO.1,GREEN
POS.6,NO.1,RED/BLACK
POS.4,NO.1,BLACK
POS.7,NO.2,RED/PINK
POS.6,NO.2,PINK
POS.1,NO.2,RED/PURPLE
POS.4,NO.2,PURPLE
POS.8,NO.2,RED/BROWN
POS.1,NO.2,BROWN
POS.1,NO.2,RED/GREEN
POS.7,NO.2,GREEN
POS.7,NO.2,RED/BLACK
POS.6,NO.2,BLACK
11721BEARING, CRANKSHAFT, NO.2
POS.7,NO.1,RED/PINK
POS.7,NO.1,PINK
POS.8,NO.1,RED/PURPLE
POS.1,NO.1,PURPLE
POS.2,NO.1,RED/BROWN
POS.2,NO.1,BROWN
POS.2,NO.1,RED/GREEN
POS.4,NO.1,GREEN
POS.6,NO.1,RED/BLACK
POS.4,NO.1,BLACK
POS.7,NO.2,RED/PINK
POS.6,NO.2,PINK
POS.1,NO.2,RED/PURPLE
POS.4,NO.2,PURPLE
POS.8,NO.2,RED/BROWN
POS.1,NO.2,BROWN
POS.1,NO.2,RED/GREEN
POS.7,NO.2,GREEN
POS.7,NO.2,RED/BLACK
POS.6,NO.2,BLACK
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,POS.6
U/S 0.125,POS.7
13011RING SET, PISTON
STD,POS.6
13041BEARING, CONNECTING ROD
POS.6,GREEN
POS.8,BLACK
POS.8,NO PAINT
POS.4,YELLOW
POS.7,BLUE
POS.2,RED
13101ARING, HOLE SNAP(FOR PISTON PIN)
POS.6
13201ROD SUB-ASSY, CONNECTING
POS.6
13211PISTON
POS.6
13251PIN, PISTON
POS.6
13265BOLT, CONNECTING ROD
POS.6
13400ABEARING(FOR CRANKSHAFT)
POS.8
13405FLYWHEEL SUB-ASSY
13405BBOLT, FLYWHEEL SETTING
POS.8
13411CRANKSHAFT
POS.6
13471PULLEY, CRANKSHAFT
POS.8
POS.4
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
POS.6
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
POS.6
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
POS.6
1601
1605
19315PLATE, CRANK ANGLE SENSOR, NO.1
POS.6
25892WC001
main25892-WC001
23 parts on this diagram · 1 diagram in section
