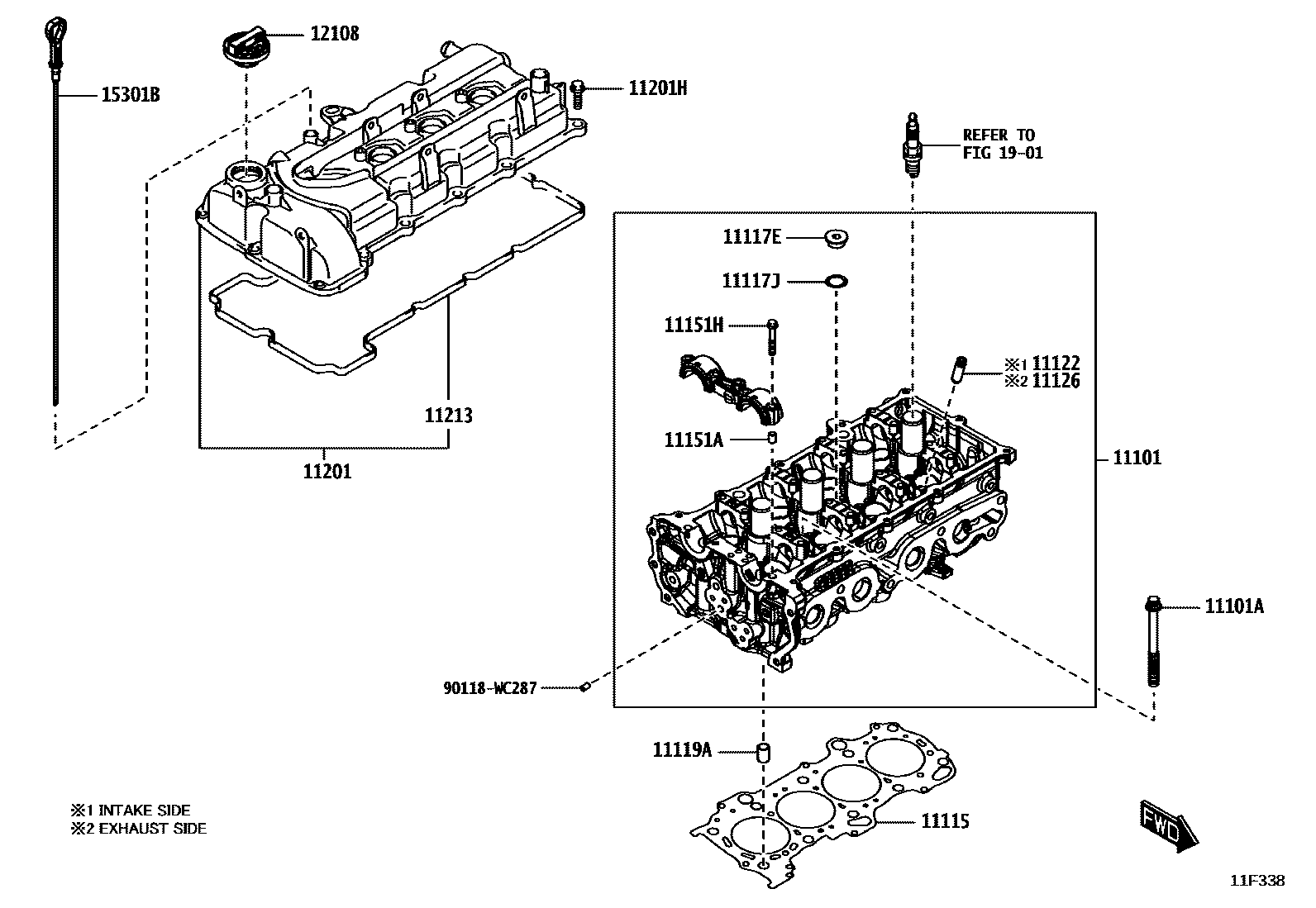

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
POS.8
11101ABOLT(FOR CYLINDER HEAD SET)
POS.8
11115GASKET, CYLINDER HEAD
POS.8
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
POS.8
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
POS.8
11119APIN, STRAIGHT, NO.1
POS.8
11122BUSH, INTAKE VALVE GUIDE
STD,POS.7
11126BUSH, EXHAUST VALVE GUIDE
STD,POS.7
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=11,OD=8,POS.7
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
POS.8
11201COVER SUB-ASSY, CYLINDER HEAD
POS.8
11201HBOLT(FOR CYLINDER HEAD COVER)
POS.8
11213GASKET, CYLINDER HEAD COVER
POS.8
12108CAP SUB-ASSY, OIL FILLER
POS.8
15301BGAGE SUB-ASSY, OIL LEVEL
POS.8
90118WC287
main90118-WC287
16 parts on this diagram · 2 diagrams in section
