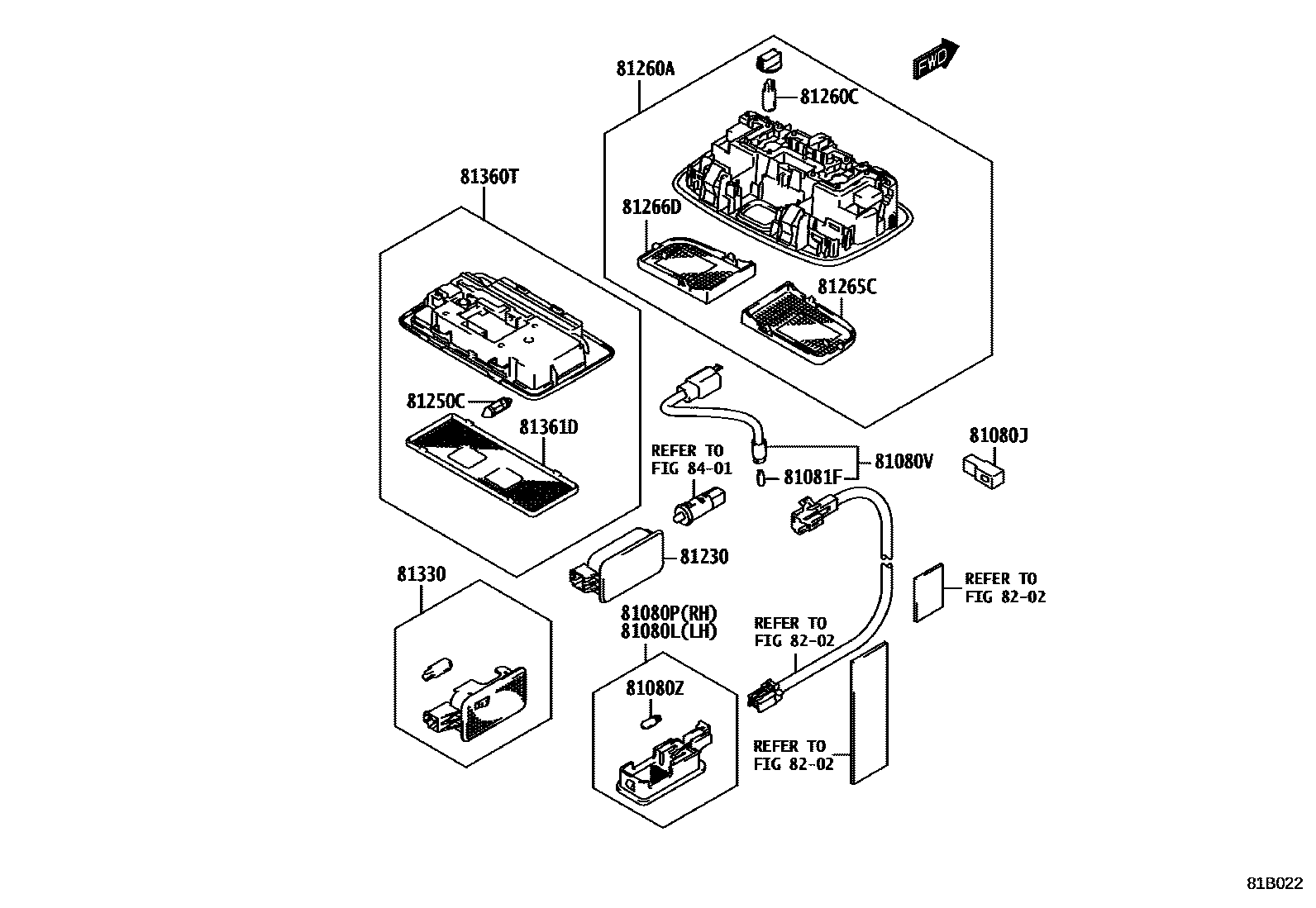

INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2

81080ZBULB, INTERIOR ILLUMINATION LAMP, NO.1

81081FBULB, INTERIOR ILLUMINATION LAMP, NO.2

81230LAMP ASSY, COURTESY

main64746-WC001

81250CBULB, SPOT LAMP

81260ALAMP ASSY, MAP

81260CBULB(FOR MAP LAMP)

81265CLENS, MAP LAMP, NO.1

81266DLENS, MAP LAMP, NO.2

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81230-WC003

81360TLAMP ASSY, SPOT

81361DLENS, SPOT LAMP

8202

8401

17 parts on this diagram · 2 diagrams in section
