REAR COMBINATION LAMP

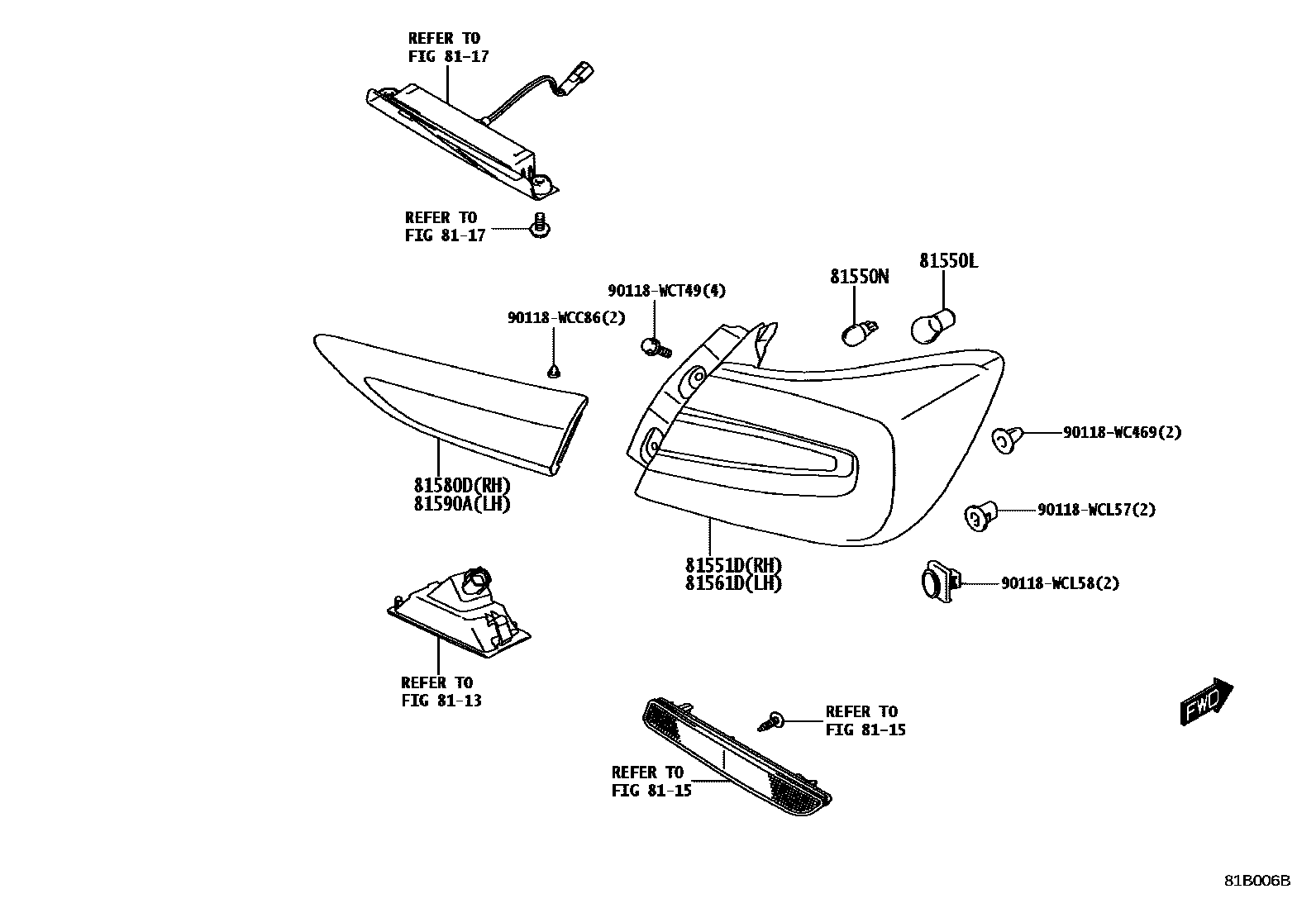

Parts diagram

8113

8115

8117

81550LBULB, REAR TURN SIGNAL LAMP

81550NBULB, BACK UP LAMP

81551DLENS & BODY, REAR COMBINATION LAMP, RH

81561DLENS & BODY, REAR COMBINATION LAMP, LH

81580DLAMP ASSY, REAR, RH

81590ALAMP ASSY, REAR, LH

90118WC469

main90118-WC469

90118WCC86

main90118-WCC86

90118WCL57

main90118-WCL57

90118WCL58

main90118-WCL58

90118WCT49

main90118-WCT49

14 parts on this diagram · 1 diagram in section
