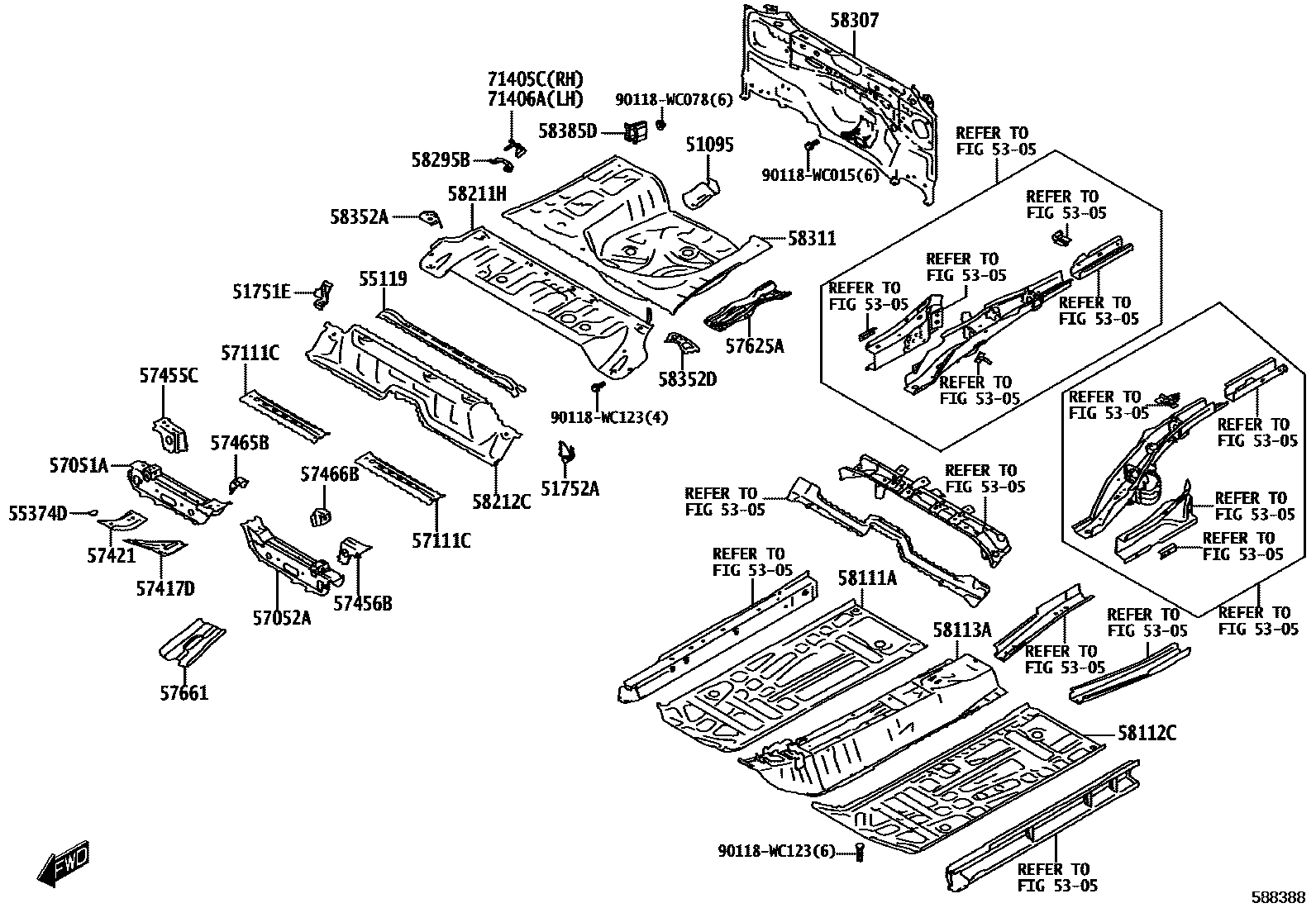

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

51095HOOK, TRANSPORT, REAR

main52175-WC001

51751EBRACKET, BODY SUPPORT, NO.1 RH

51752ABRACKET, BODY SUPPORT, NO.1 LH

5305

55119MEMBER, SEAT RISER, CENTER

main57661-WC002

55374DBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57111CCROSSMEMBER, FLOOR, NO.1

57417DREINFORCEMENT, FLOOR SIDE, INNER RH

57421REINFORCEMENT, FRONT FLOOR, NO.1

main57145-WC001

main57461-WC001

57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

57465BBRACKET, FRONT SEAT, INNER

57466BBRACKET, FRONT SEAT, INSIDE LH

57625AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR OUTSIDE

57661PANEL, REAR FLOOR SIDE, FRONT RH

main57661-WC004

58111APAN, FRONT FLOOR, RH

58112CPAN, FRONT FLOOR, LH

58113APANEL, FRONT FLOOR, CENTER

58211HPAN, CENTER FLOOR

58212CPAN, CENTER FLOOR, FRONT

58295BREINFORCEMENT, SEAT BELT ANCHOR FLOOR

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-WC007

58311PAN, REAR FLOOR

main58311-WC006

58352ABRACKET, REAR FLOOR STAY

58352DBRACKET, REAR FLOOR STAY

58385DBRACKET, REAR BUMPER COVER

71405CSTRIKER SUB-ASSY, REAR SEAT LOCK, RH

71406ASTRIKER SUB-ASSY, REAR SEAT LOCK, LH

90118WC015

main90118-WC015

90118WC078

main90118-WC078

90118WC123

main90118-WC123

33 parts on this diagram · 4 diagrams in section
