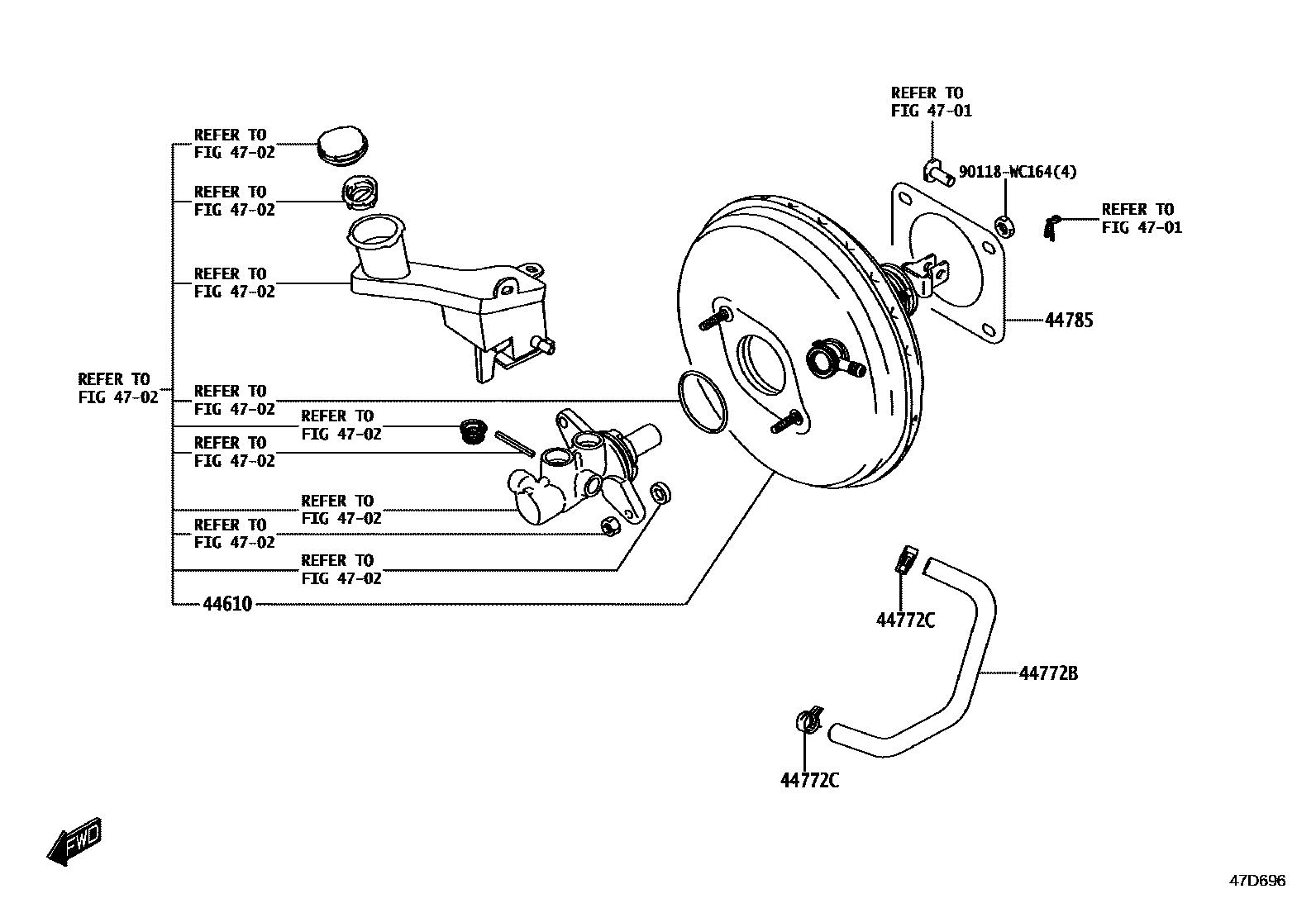

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-WC019iK15B..SUD202203-202310

POS.53

main44610-WC020iK15B..L..SA202203

POS.1

main44610-WC022iK15B..5F..P..AFR202203

POS.68

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-WC004iK15B..SUD202203-202310

POS.53

44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

main90118-WC237iK15B..SUD202203-202310

POS.53

44785GASKET, BRAKE BOOSTER

main44785-WC001iK15B..4FC..X..SA202203

POS.1,VENDOR 1

main44785-WC002iK15B..4FC..X..SA202203

POS.89,VENDOR 2

4701

4702

90118WC164

main90118-WC164

7 parts on this diagram · 2 diagrams in section
