TRANSMISSION GEAR (MTM)

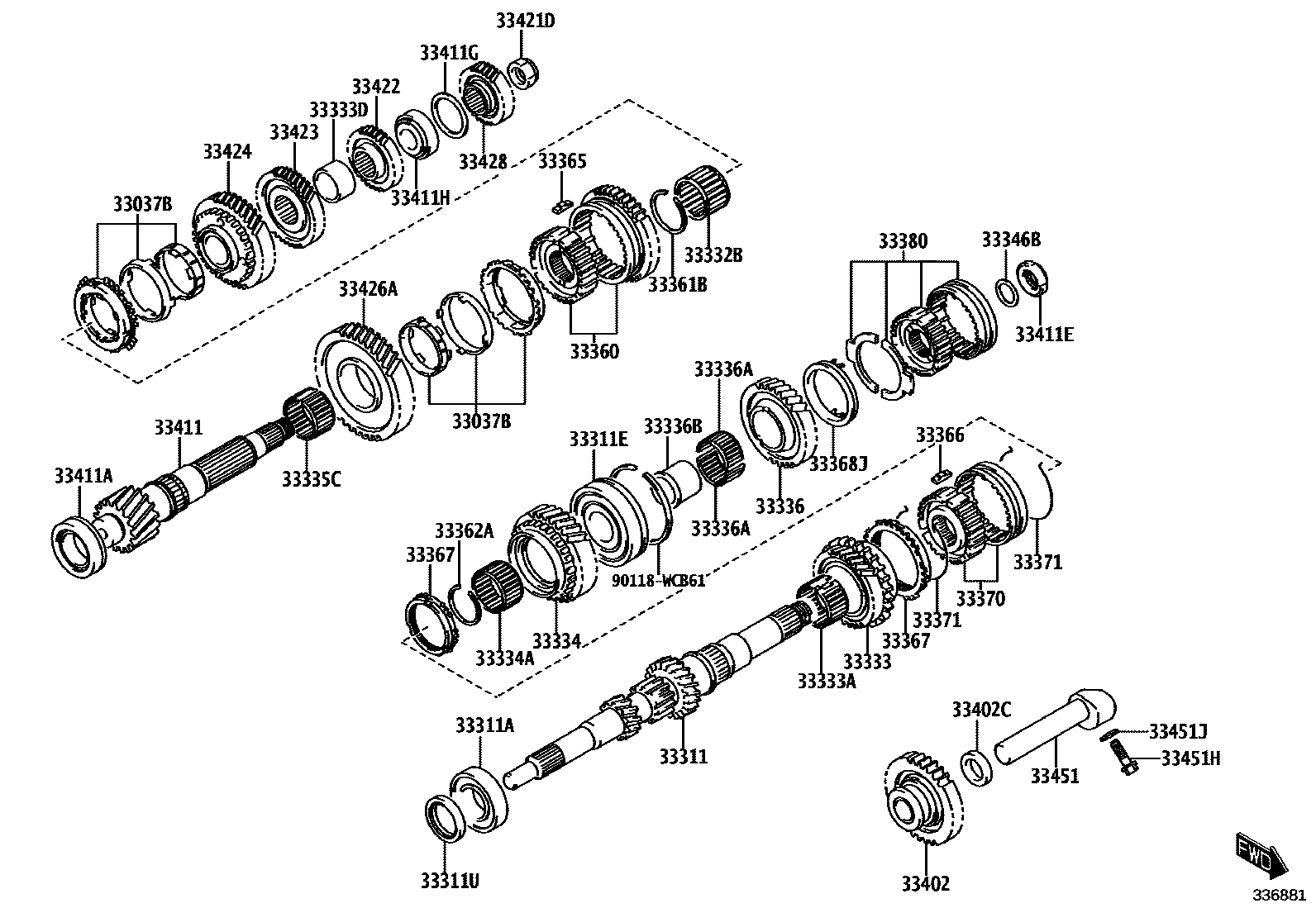

Parts diagram
33037BRING SET, SYNCHRONIZER, NO.1
main33367-WC003×2i202203
POS.4
33311SHAFT, INPUT
main33311-WC005i202203
POS.4
33311ABEARING (FOR INPUT SHAFT FRONT)
main90118-WCA59i202203
POS.4
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
main90118-WCA60i202203
POS.4
33311USEAL, OIL (FOR INPUT SHAFT)
main90118-WCA58i202203
POS.4
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
main90118-WCA68i202203
POS.4
33333GEAR, 3RD
main33034-WC004i202203
POS.4
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
main90118-WCA63i202203
POS.4
33333DSPACER (FOR 3RD GEAR)
main33431-WC003i202203
POS.4
33334GEAR, 4TH
main33035-WC005i202203
POS.4
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
main90118-WCB67i202203
POS.4
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
main90118-WCA66i202203
POS.4
33336GEAR, 5TH
main33036-WC007i202203
POS.4
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
main90118-WCA65×2i202203
POS.4
33336BSPACER (FOR 5TH GEAR BEARING)
main90118-WCB66i202203
POS.4
33346BWASHER, 5TH GEAR THRUST
main90118-WC882i202203
POS.4
33360HUB ASSY, SYNCHRONIZER, NO.1
main33360-WC001i202203
POS.2,VENDOR 1
main33360-WC003i202203
POS.92,VENDOR 2
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
main90118-WCA70i202203
POS.4
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
main90118-WCA71i202203
POS.4
33365KEY, SYNCHROMESH SHIFTING, NO.1
main33365-WC002×3i202203
POS.4
33366KEY, SYNCHROMESH SHIFTING, NO.2
main33394-WC001×3i202203
POS.4
33367RING, SYNCHRONIZER, NO.1
main33368-WC002×2i202203
POS.4
33368JRING, SYNCHRONIZER (FOR 5TH GEAR)
main33369-WC004i202203
POS.4
33370HUB ASSY, SYNCHRONIZER, NO.2
main33370-WC001i202203
POS.4
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
main33371-WC001×2i202203
POS.4
33380HUB ASSY, SYNCHRONIZER, NO.3
main33380-WC001i202203
POS.4
33402GEAR SUB-ASSY, REVERSE IDLER
main33402-WC002i202203
POS.4
33402CWASHER, PLATE (FOR REVERSE IDLER)
main90118-WC891i202203
POS.4
33411COUNTERSHAFT
main33321-WC005i202203
POS.4
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
main90118-WCA61i202203
POS.4
33411ENUT(FOR COUNTER GEAR SHAFT)
main90118-WC875i202203
POS.2,VENDOR 1
main90118-WCS86i202203
POS.92,VENDOR 2
33411GSHIM(FOR COUNTER GEAR SHAFT BEARING SETTING)
main90118-WC894i202203
T=0.65,POS.11
main90118-WC895i202203
T=0.70,POS.69
main90118-WC896i202203
T=0.75,POS.90
main90118-WC897i202203
T=0.80,POS.70
main90118-WC898i202203
T=0.85,POS.58
main90118-WC899i202203
T=0.90,POS.5
main90118-WCA00i202203
T=0.95,POS.91
main90118-WCA01i202203
T=1.00,POS.69
main90118-WCA02i202203
T=1.05,POS.94
main90118-WCA03i202203
T=1.10,POS.9
main90118-WCA04i202203
T=1.15,POS.91
main90118-WCA05i202203
T=1.20,POS.13
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
main90118-WCA62i202203
POS.4
33421DNUT(FOR COUNTER GEAR REAR)
main90118-WC875i202203
POS.2,VENDOR 1
main90118-WCS86i202203
POS.92,VENDOR 2
33422GEAR, COUNTERSHAFT 4TH SPEED
main33422-WC005i202203
POS.4
33423GEAR, COUNTERSHAFT 3RD SPEED
main33423-WC004i202203
POS.4
33424GEAR, COUNTERSHAFT 2ND SPEED
main33332-WC003i202203
POS.4
33426AGEAR, COUNTERSHAFT, 1ST SPEED
main33335-WC003i202203
POS.4
33428GEAR, COUNTERSHAFT 5TH
main33428-WC006i202203
POS.4
33451SHAFT, REVERSE IDLER GEAR
main33451-WC003i202203
POS.4
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
main90118-WC393i202203
POS.2,VENDOR 1
main90118-WCS87i202203
POS.92,VENDOR 2
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
main90118-WC183i202203
POS.4
90118WCB61
main90118-WCB61

43 parts on this diagram · 1 diagram in section
