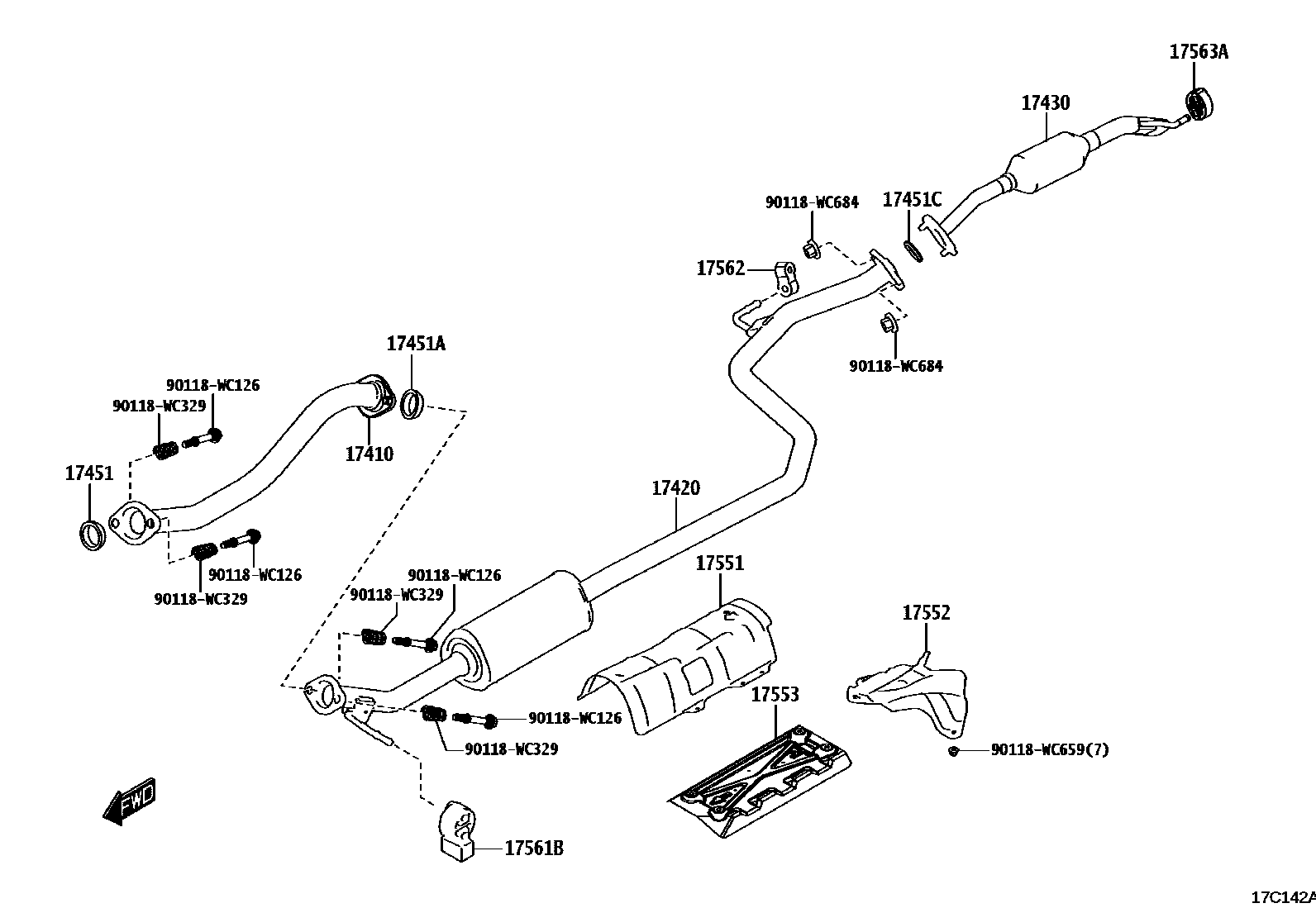

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-WC007

17420PIPE ASSY, EXHAUST, CENTER

main17420-WC005

17430PIPE ASSY, EXHAUST, TAIL

main17430-WC007

17451GASKET, EXHAUST PIPE

main17451-WC001

main90118-WC732

17451AGASKET, EXHAUST PIPE, NO.2

17451CGASKET, EXHAUST PIPE, NO.3

17551INSULATOR, EXHAUST PIPE HEAT, NO.1

main58152-WC002

17552INSULATOR, EXHAUST PIPE HEAT, NO.2

main58151-WC001

17553INSULATOR, EXHAUST PIPE HEAT, NO.3

main58327-WC001

17561BSUPPORT, EXHAUST PIPE, NO.1

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-WC002

17563ASUPPORT, EXHAUST PIPE, NO.3

90118WC126

main90118-WC126

90118WC329

main90118-WC329

90118WC659

main90118-WC659

90118WC684

main90118-WC684

16 parts on this diagram · 1 diagram in section
